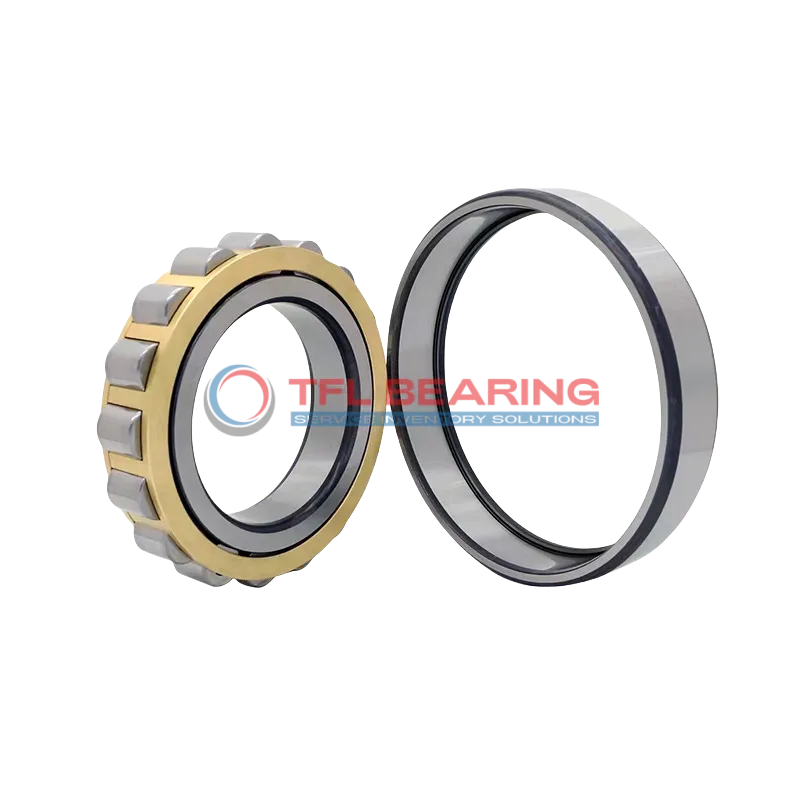

The N 316 ECM is a single-row cylindrical roller bearing with an 80mm bore and 170mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 67500 lbf and operates smoothly at speeds up to 5000 RPM.
Its brass cage design ensures even roller distribution, while the open seal allows easy lubrication with grease or oil. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or machinery where radial and axial loads are present.
Weighing 4.39kg, it’s built to last with a robust construction. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
Performance Features of N 316 ECM Bearing
N 316 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 67,500 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 5,000 rpm, it balances durability and efficiency in various operating conditions.
Industrial Uses of N 316 ECM Bearing
N 316 ECM Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even at high speeds, making it reliable for continuous use.
In automotive applications, N 316 ECM Bearing supports components such as drivetrains and wheel hubs, thanks to its robust chrome steel construction. Its metric sizing makes it a versatile choice for various vehicle models, ensuring compatibility and durability.
For automation systems, N 316 ECM Bearing is ideal for robotic arms and conveyor belts, where precise movement and load capacity are essential. The open seal design allows for easy lubrication, extending the bearing’s service life in demanding environments.
Medical equipment like MRI machines also benefit from N 316 ECM Bearing’s stability and low maintenance requirements. The temperature range of -30° to 110°C ensures consistent performance in critical healthcare settings.
