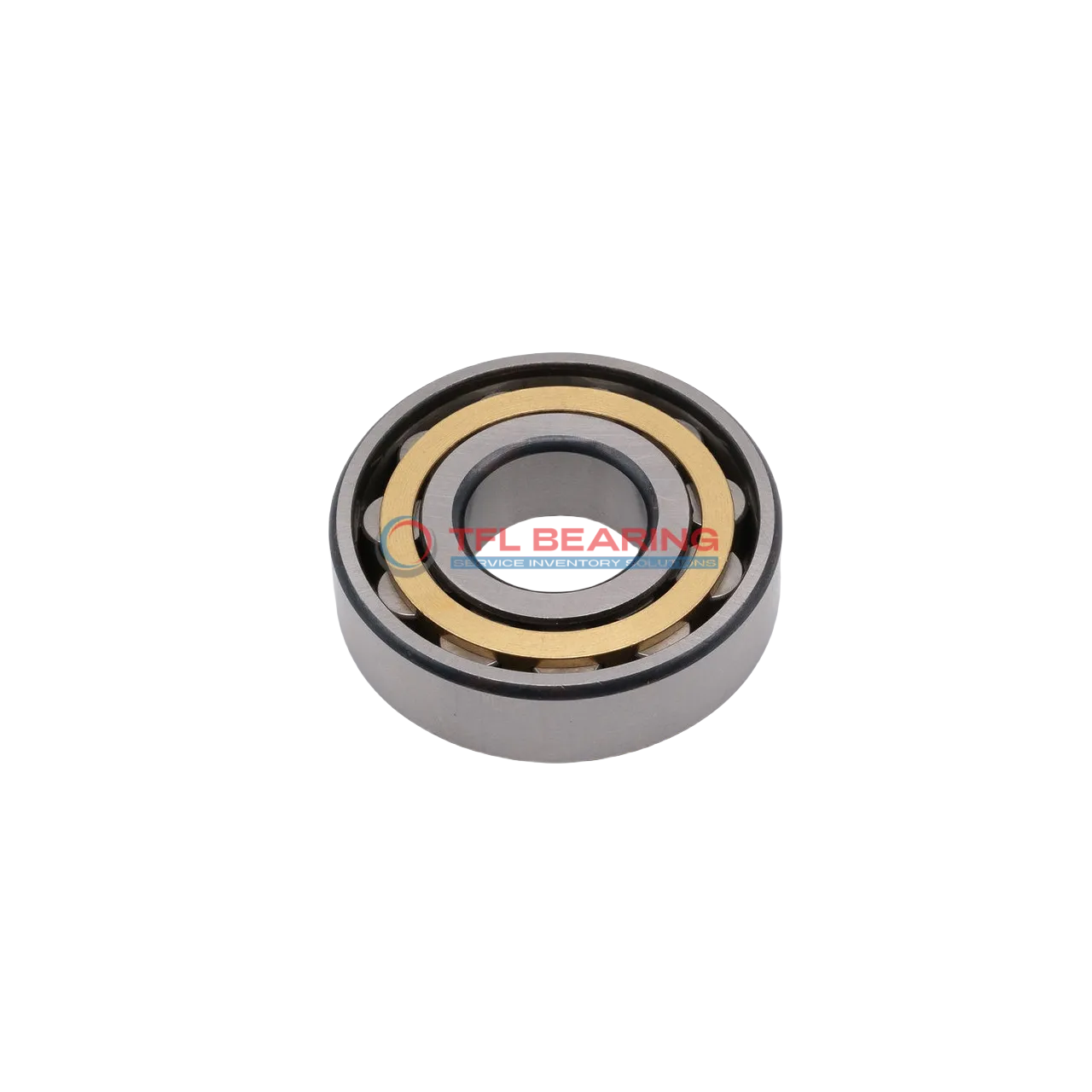

The N 28/900 MB is a single row cylindrical roller bearing with a large 900mm bore and 1090mm outer diameter, built from sturdy chrome steel. It handles combined loads up to 607500 lbf and works well with grease or oil lubrication.
Its brass cage keeps rollers centred for smooth operation, while the open design allows easy maintenance. The bearing can handle temperatures from -30°C to 110°C, making it suitable for tough environments.

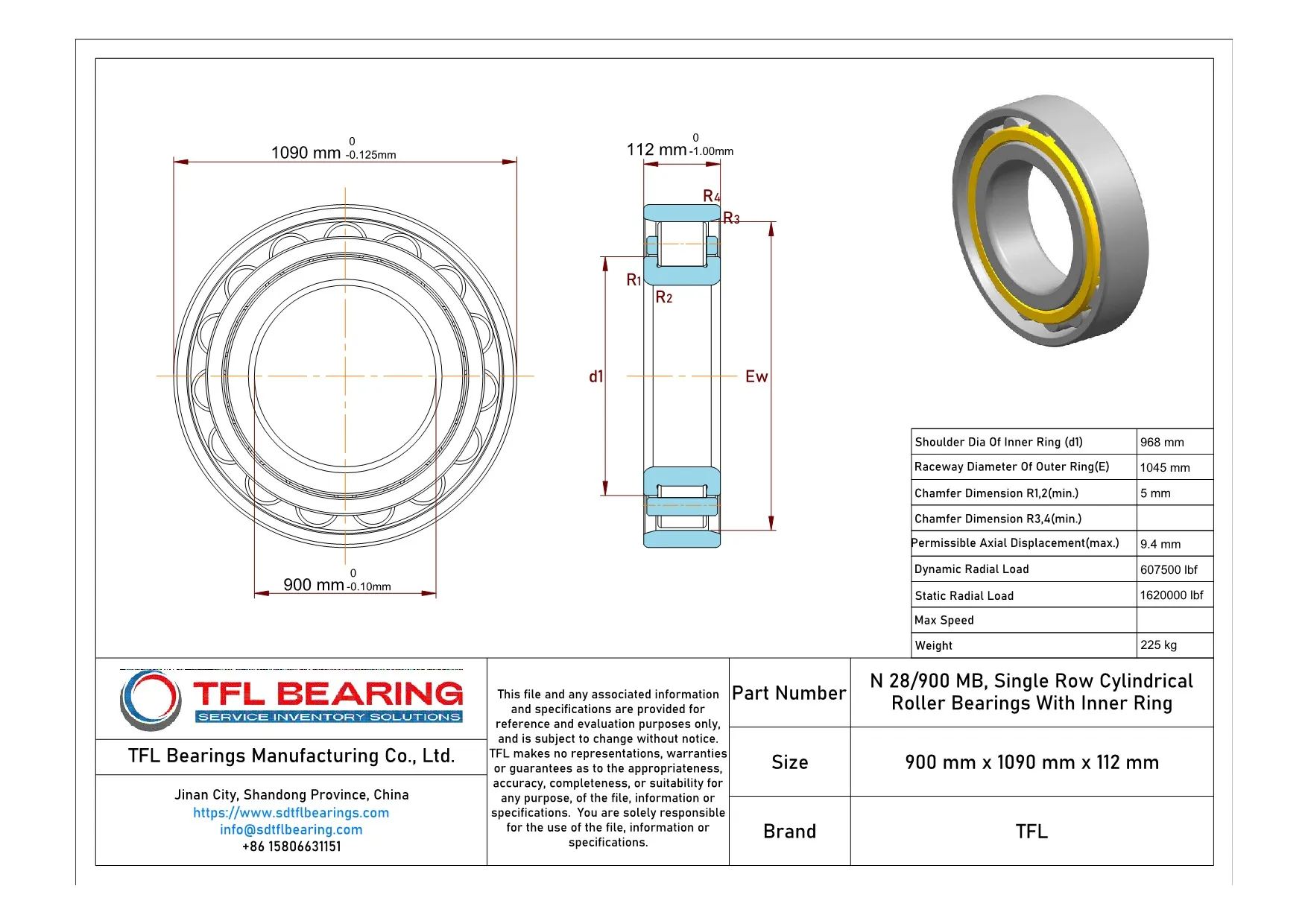

With a width of 112mm and a shoulder diameter of 968mm, it fits securely in heavy-duty setups. Ideal for industrial machinery like large gearboxes or rolling mills where high radial loads are common.
Weighing 225kg, it’s a robust choice for demanding applications. Compliant with RoHS and REACH standards for safe use. Interchangeable with SKF bearings for easy replacement.
"*" indicates required fields
Performance Features of N 28/900 MB Bearing
N 28/900 MB Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 607,500 lbf, making it suitable for heavy-duty applications.
The brass cage ensures proper roller alignment, enhancing durability and reducing wear.
With a temperature range of -30° to 110°C, it performs reliably in various conditions.
Industrial Uses of N 28/900 MB Bearing
N 28/900 MB Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its cylindrical roller design handles high radial loads efficiently. The brass cage ensures smooth operation even under demanding conditions.
In wind turbine applications, N 28/900 MB Bearing supports the main shaft, providing reliable performance in variable weather conditions. Its chrome steel construction offers excellent durability for long-term use.
For mining equipment, N 28/900 MB Bearing’s large bore size and combined load capability make it ideal for crushers and conveyors. The open seal design allows for easy lubrication, extending service life in harsh environments.
What Makes N 28/900 MB Bearing a Preferred Choice?
N 28/900 MB Bearing is often selected for paper mill machinery due to its ability to withstand high static radial loads. The precise tolerances ensure consistent performance in continuous operation.
In steel production, N 28/900 MB Bearing’s robust design handles the extreme loads found in rolling and processing equipment. Its temperature range makes it suitable for both hot and cold working conditions.
Built for Heavy-Duty Use: N 28/900 MB Bearing
N 28/900 MB Bearing is frequently used in marine propulsion systems, where its large size and load capacity are essential. The grease or oil lubrication options provide flexibility for different operating conditions.
For hydroelectric power plants, N 28/900 MB Bearing supports turbine shafts, offering reliable performance in wet environments. Its corrosion-resistant materials ensure longevity even with constant water exposure.
