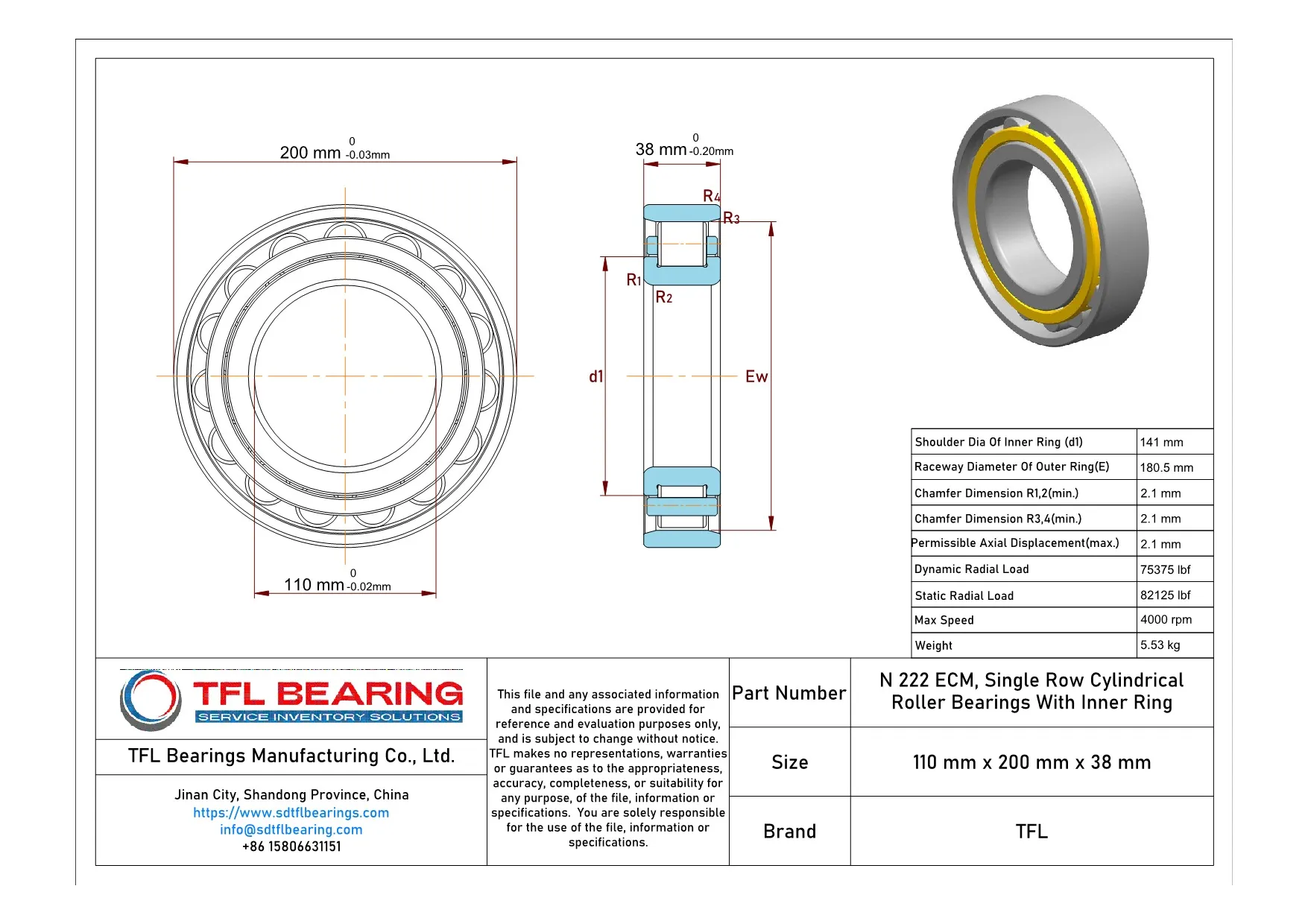

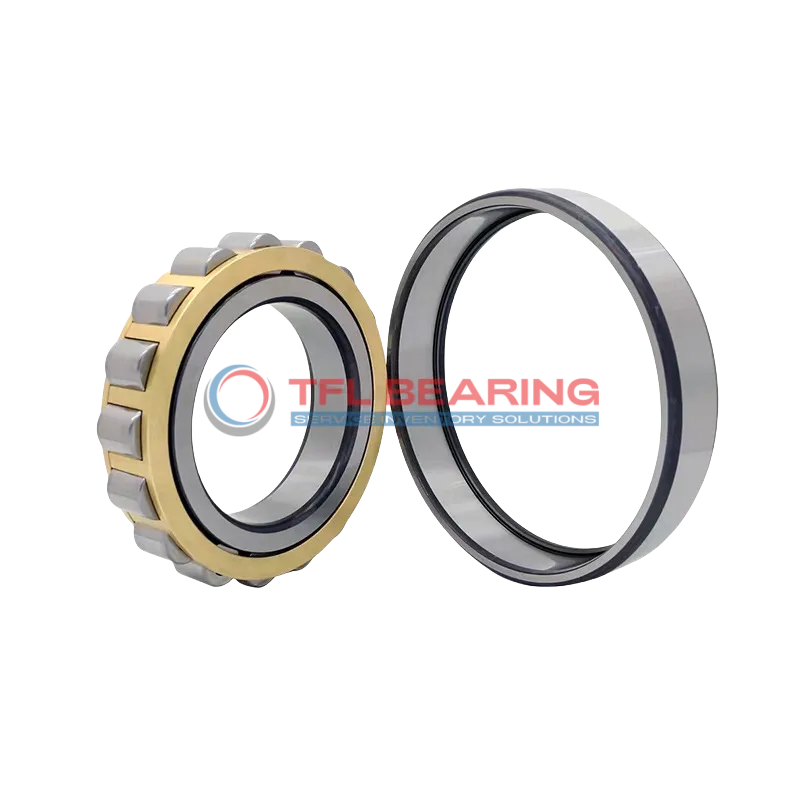

The N 222 ECM is a single row cylindrical roller bearing with a 110mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 75375 lbf and runs smoothly at speeds up to 4000 RPM.
Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing operates well in temperatures from -30°C to 110°C.
With a width of 38mm and chamfered edges, it fits snugly in tight spaces. Ideal for heavy machinery or industrial gearboxes where radial and axial loads are present.
Weighing 5.53kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a reliable choice for replacements, interchangeable with SKF bearings.
"*" indicates required fields
Performance Features of N 222 ECM Bearing
N 222 ECM Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 75375 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 4000 rpm, it balances durability and efficiency in various conditions.
Industrial Uses of N 222 ECM Bearing
N 222 ECM Bearing is commonly used in heavy machinery like industrial gearboxes and large electric motors, where its cylindrical roller design handles both radial and axial loads efficiently. The brass cage ensures smooth rotation even at high speeds, making it reliable for continuous operation.
Where Is N 222 ECM Bearing Used?
In automotive applications, N 222 ECM Bearing fits well in truck transmissions and drivetrains, thanks to its robust chrome steel construction. Its metric sizing and open design make it easy to integrate into various vehicle systems.
Built for Heavy-Duty Use: N 222 ECM Bearing
For automation equipment, N 222 ECM Bearing supports robotic arms and conveyor systems, providing stability under combined loads. The wide temperature range (-30° to 110°C) ensures performance in diverse environments.
Automotive vs Aerospace: Applications of N 222 ECM Bearing
In automotive settings, N 222 ECM Bearing excels in wheel hubs and differentials, while its precision makes it suitable for aerospace landing gear components. The high dynamic load capacity (75,375 lbf) ensures durability in demanding conditions.
Essential Roles of N 222 ECM Bearing
N 222 ECM Bearing is a go-to choice for wind turbine generators, where its ability to handle heavy radial loads and moderate axial shifts is crucial. The grease or oil lubrication options add flexibility for maintenance in remote locations.
