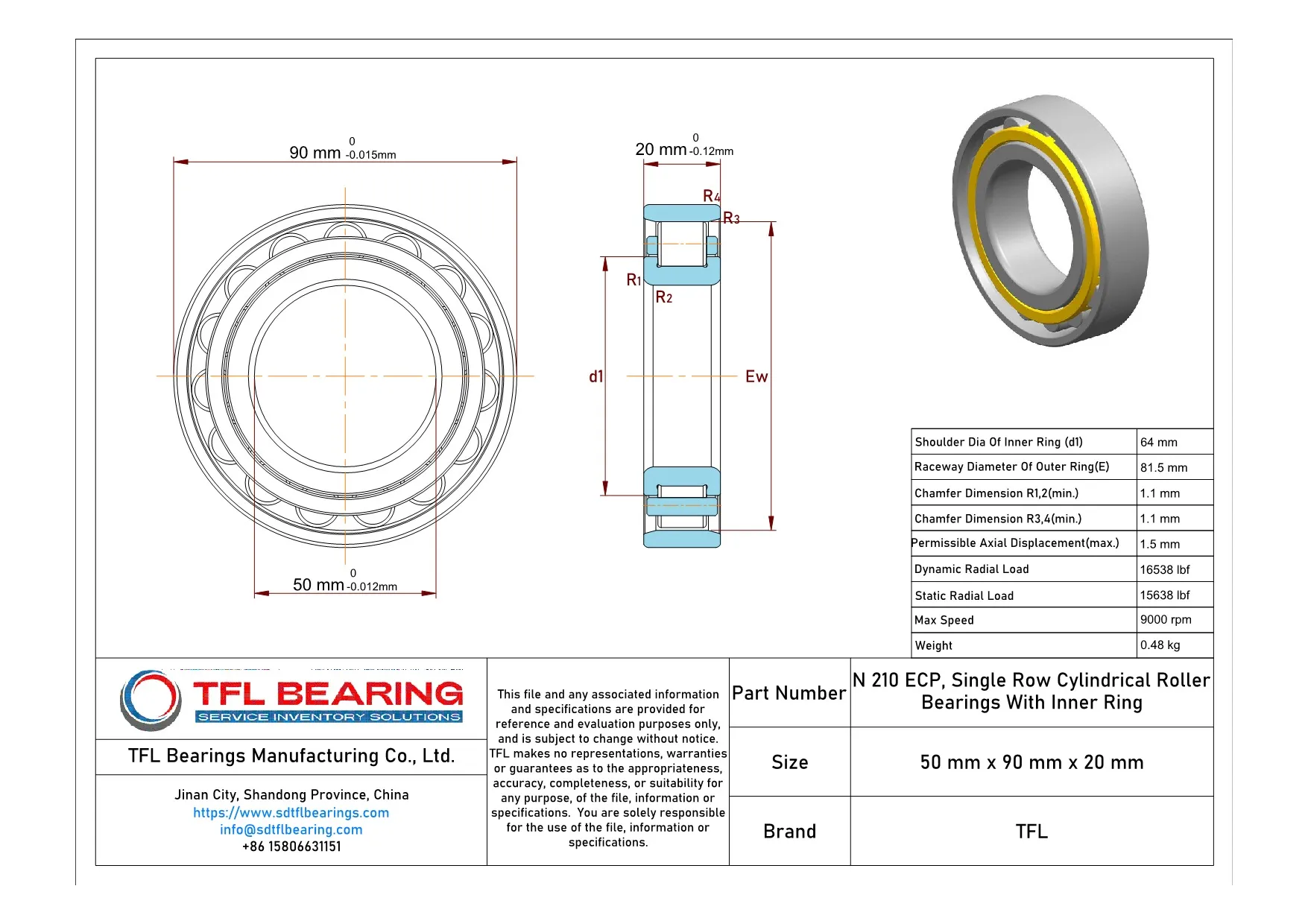

The N 210 ECP is a single row cylindrical roller bearing with a 50mm bore and 90mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 16538 lbf and reaches speeds of 9000 RPM.
Its open design allows for easy lubrication with grease or oil, while the PA66 cage ensures smooth operation. The bearing performs well in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like gearboxes or pumps where combined loads are common.
Weighing 0.48kg, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of N 210 ECP Bearing
N 210 ECP Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 16538 lbf, ensuring reliable performance in various applications.
The PA66 cage keeps the rollers centred, reducing friction and extending the bearing’s lifespan.
With a maximum speed of 9000 rpm, it delivers both durability and efficiency.
N 210 ECP Bearing operates smoothly in temperatures ranging from -30° to 110°C.
Its open design allows for easy lubrication with grease or oil, reducing maintenance needs.
Industrial Uses of N 210 ECP Bearing
N 210 ECP Bearing is commonly used in heavy machinery like gearboxes and electric motors, where its cylindrical roller design handles combined loads efficiently. The open seal type allows for easy lubrication, extending its service life in demanding conditions.
In automotive applications, N 210 ECP Bearing fits well in transmission systems, providing reliable performance under high-speed rotations. Its chrome steel construction ensures durability, even in fluctuating temperatures.
For automation equipment, N 210 ECP Bearing supports precise movements in robotic arms and conveyor belts. The PA66 cage material reduces friction, making it a quiet and smooth option for continuous operation.
Medical imaging devices benefit from N 210 ECP Bearing’s stable performance, thanks to its tight tolerances and grease lubrication. It’s a dependable choice for equipment requiring minimal maintenance and consistent accuracy.
In household appliances like washing machines, N 210 ECP Bearing offers quiet and efficient operation. Its metric sizing ensures compatibility with a wide range of consumer products, making it a versatile pick.
