Single Row Cylindrical Roller Bearings With Inner Ring BC1B 322770 A/HB1
Single Row Cylindrical Roller Bearings With Inner Ring BC1B 322770 A/HB1

Single Row Cylindrical Roller Bearings With Inner Ring BC1B 322770 A/HB1

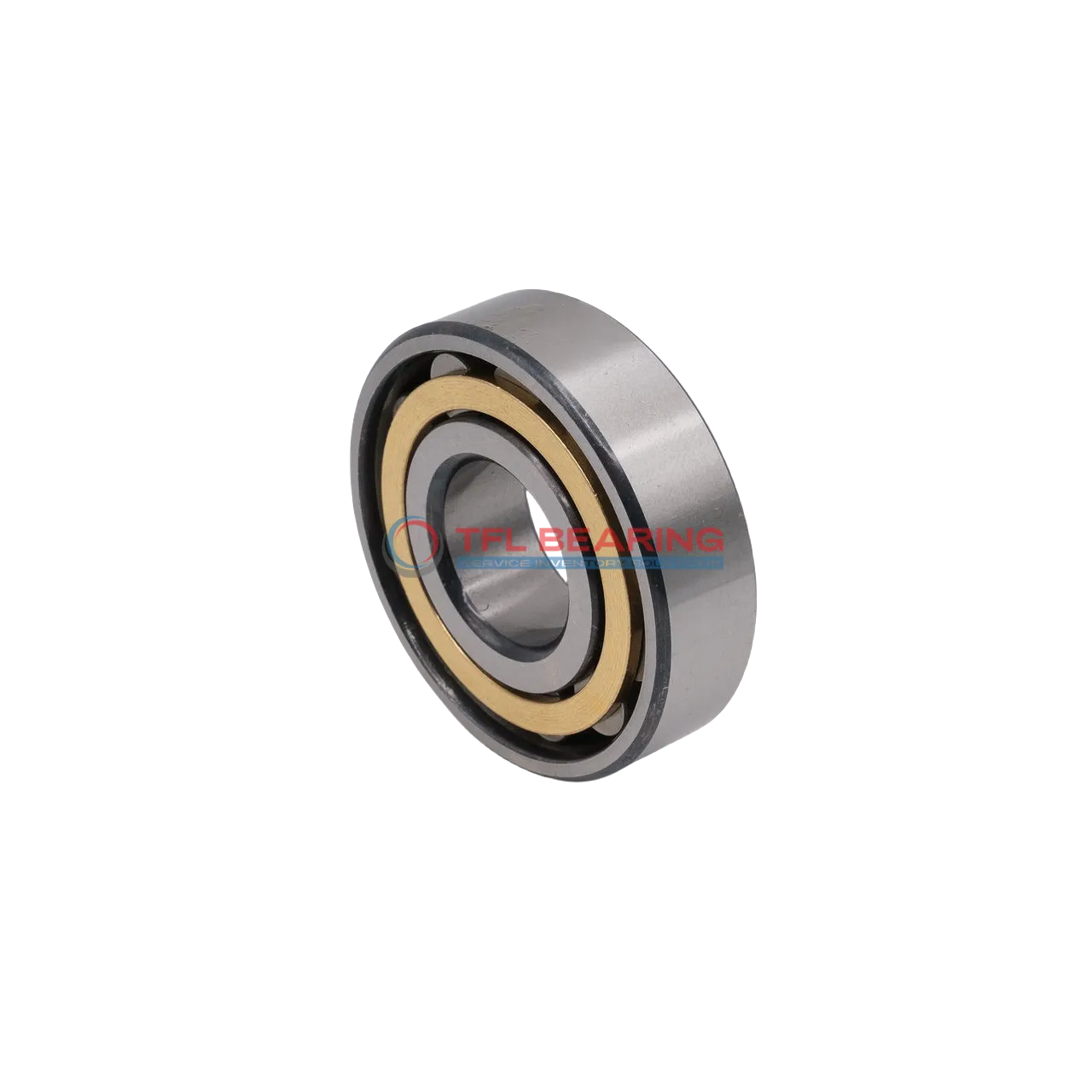

The BC1B 322770 A/HB1 is a single row cylindrical roller bearing with a 380mm bore and 480mm outer diameter, crafted from durable chrome steel. It handles combined loads up to 60750 lbf and runs smoothly at speeds up to 1000 RPM.

Its brass cage keeps rollers centred for even load distribution, while the open design allows easy lubrication with grease or oil. The bearing performs well in temperatures from -30°C to 110°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy-duty applications like industrial gearboxes or large machinery where robust performance is needed.

Weighing 18.5kg, it’s built to last while meeting RoHS and REACH standards for safe use. The 40mm width and precise tolerances ensure a reliable fit in demanding setups.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number BC1B 322770 A/HB1
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 380 mm
  • Bore Dia Tolerance -0.04mm to 0
  • Outer Dia 480 mm
  • Outer Dia Tolerance -0.045mm to 0
  • Width 40 mm
  • Width Tolerance -0.12mm to 0
  • Shoulder Dia Of Inner Ring 418 mm
  • Raceway Diameter Of Outer Ring(E) 451 mm
  • Chamfer Dimension r1,2(min.) 2.1 mm
  • Permissible Axial Displacement(max.) 2 mm
  • System of Measurement Metric
  • Roller Bearing Type Cylindrical
  • For Load Direction Combined
  • Construction Single Row
  • Inner Ring Type With Inner Ring
  • Seal Type Open
  • Ring Material Chrome Steel
  • Roller Material Chrome Steel
  • Cage Material Brass cage, roller centred
  • Dynamic Radial Load 60750 lbf
  • Static Radial Load 117000 lbf
  • Lubrication Grease, Oil
  • Temperature Range -30° to 110 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 1000 rpm
  • Weight 18.5 kg
  • Shoulder Dia Of Outer Ring 444 mm

Features

Performance Features of BC1B 322770 A/HB1 Bearing

BC1B 322770 A/HB1 Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 60,750 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers centred, reducing friction and extending service life.
With a maximum speed of 1,000 rpm, it balances durability and efficiency in demanding conditions.

Application

Industrial Uses of BC1B 322770 A/HB1 Bearing
BC1B 322770 A/HB1 Bearing is commonly used in heavy machinery like industrial gearboxes and large conveyor systems, where its cylindrical roller design handles combined loads efficiently.
The brass cage ensures smooth rotation, making it suitable for high-speed applications up to 1000 rpm.

Where Is BC1B 322770 A/HB1 Bearing Used?
In automotive manufacturing, BC1B 322770 A/HB1 Bearing supports components like drivetrains and axles, thanks to its robust chrome steel construction.
Its metric sizing and open design simplify integration into various European and Asian vehicle models.

Built for Heavy-Duty Use: BC1B 322770 A/HB1 Bearing
BC1B 322770 A/HB1 Bearing excels in construction equipment, such as cranes and excavators, where its high static radial load capacity (117000 lbf) is essential.
The grease or oil lubrication options provide flexibility for different operating conditions.

Automotive vs Aerospace: Applications of BC1B 322770 A/HB1 Bearing
In automotive settings, BC1B 322770 A/HB1 Bearing is ideal for transmissions, while in aerospace, it’s used in auxiliary systems requiring precision and reliability.
The temperature range (-30° to 110°C) ensures performance in diverse environments.

Key Fields for BC1B 322770 A/HB1 Bearing
BC1B 322770 A/HB1 Bearing is a go-to choice for wind turbines, where its dynamic radial load capacity (60750 lbf) handles unpredictable forces.
The single-row design with an inner ring simplifies maintenance in hard-to-reach installations.
