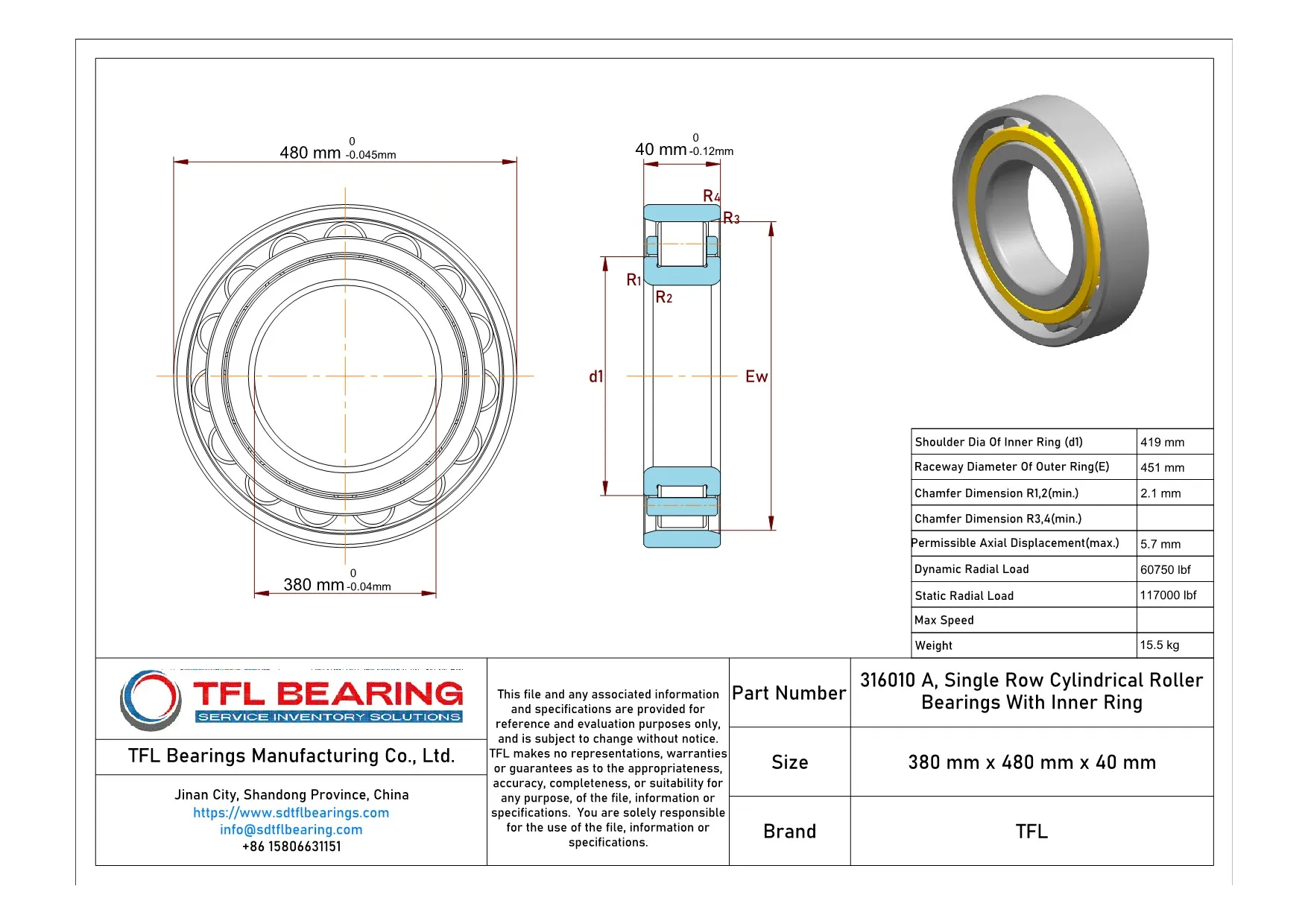

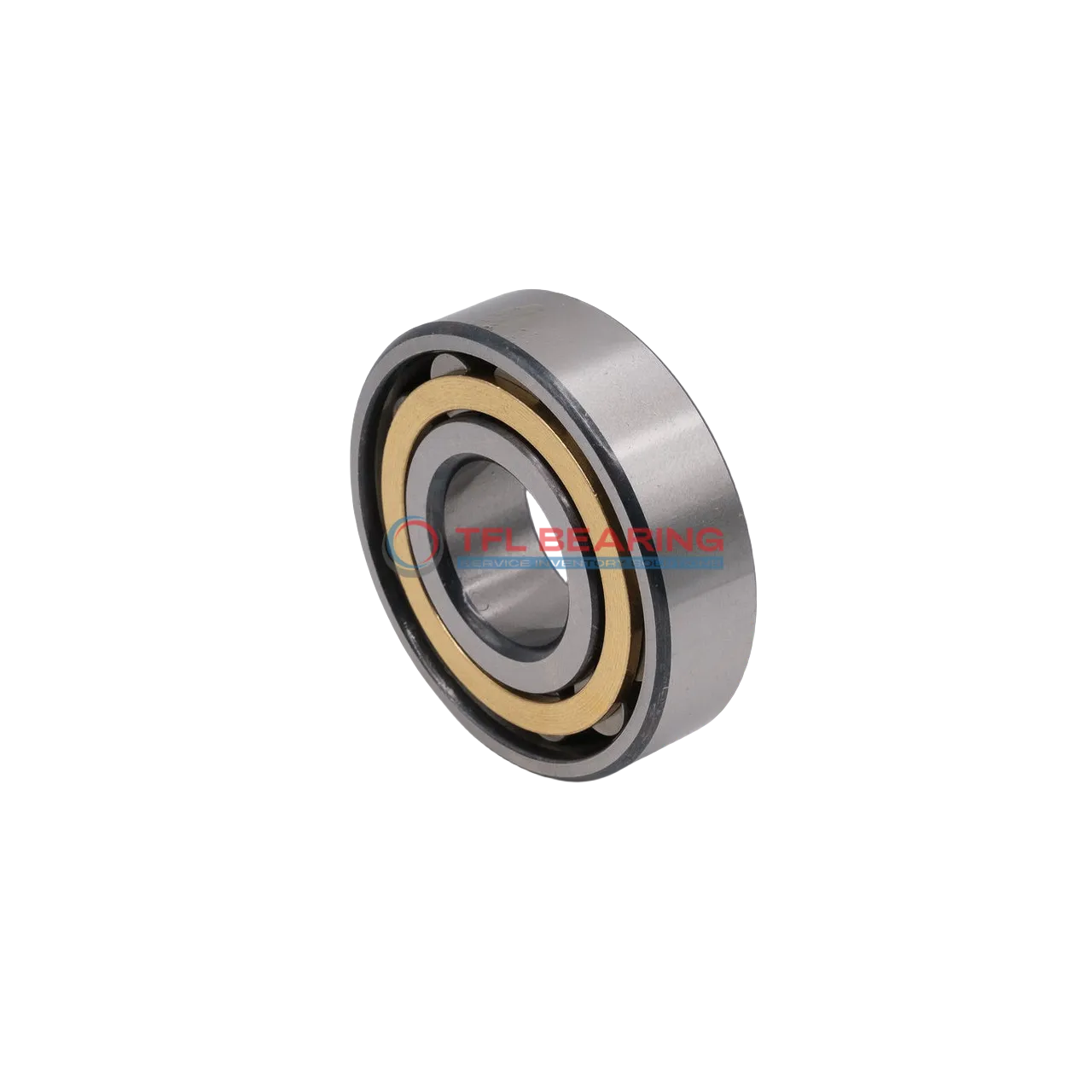

The 316010 A is a single row cylindrical roller bearing with a 380mm bore and 480mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 60,750 lbf and works well with grease or oil lubrication.
Its brass cage keeps rollers centred for smooth operation, while the open design allows easy maintenance. The bearing operates reliably in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for heavy machinery or industrial equipment where radial and axial loads are present.
Weighing 15.5kg, it’s built for durability in demanding applications. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of 316010 A Bearing
316010 A Bearing is built with chrome steel rings and rollers, offering strong resistance to combined loads.
Its dynamic radial load capacity reaches 60,750 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers centred, reducing friction and extending service life.
With a temperature range of -30° to 110°C, it performs well in various environments.
How Is 316010 A Bearing Engineered for Reliability?
316010 A Bearing features a single-row cylindrical design, optimised for combined load handling.
The chrome steel construction provides durability and resistance to wear.
Its permissible axial displacement of 5.7 mm allows for flexibility in installation.
Grease or oil lubrication options ensure smooth operation and reduced maintenance needs.
Designed for Durability: 316010 A Bearing
316010 A Bearing’s chrome steel rollers and rings enhance its load-bearing capacity.
The brass cage design minimises friction, promoting smoother operation.
With a static radial load of 117,000 lbf, it excels in demanding industrial applications.
Its open seal type allows for easy lubrication and maintenance.
Essential Roles of 316010 A Bearing
316010 A Bearing is commonly used in heavy industrial machinery, such as large gearboxes and rolling mills, where its robust design handles combined radial and axial loads effectively. The brass cage ensures smooth operation even under high-stress conditions.
Where Is 316010 A Bearing Used?
You’ll often find 316010 A Bearing in wind turbine systems, where its large bore diameter and high load capacity support reliable performance. Its chrome steel construction also makes it suitable for harsh outdoor environments.
Perfect Fit for Automation: 316010 A Bearing
In automated production lines, 316010 A Bearing provides precise movement for conveyor systems and robotic arms. The open seal design allows for easy lubrication, extending its service life in continuous operation.
Automotive vs Aerospace: Applications of 316010 A Bearing
While 316010 A Bearing is used in automotive transmissions for its durability, it also excels in aerospace applications like landing gear systems. Its metric sizing ensures compatibility with international standards.
Industrial Uses of 316010 A Bearing
316010 A Bearing is ideal for paper mill machinery, where its high static radial load capacity ensures stability. The grease or oil lubrication options make it adaptable to different operating conditions.
