The 315835 B is a single-row cylindrical roller bearing with a 530mm bore and 650mm outer diameter, crafted from sturdy chrome steel. It handles combined loads up to 94050 lbf and works well with grease or oil lubrication.
Its brass cage keeps rollers centred for smooth operation, while the open design allows easy maintenance. The bearing operates reliably in temperatures from -30°C to 110°C.
This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for heavy-duty machinery like industrial gearboxes or large motors where radial and axial loads are present.
Weighing 29.5kg, it’s built for durability in demanding environments. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of 315835 B Bearing
315835 B Bearing is built with chrome steel rings and rollers, offering robust resistance to combined loads.
Its dynamic radial load capacity reaches 94,050 lbf, ensuring reliable performance in heavy-duty applications.
The brass cage keeps the rollers centred, reducing friction and extending operational life.
With a width of 45 mm, it provides a compact yet durable solution for industrial machinery.
How Does 315835 B Bearing Resist Wear?
315835 B Bearing’s chrome steel construction enhances its resistance to wear, even under high loads.
The brass cage design minimises roller misalignment, further reducing wear and tear.
Its static radial load capacity of 202,500 lbf ensures long-term reliability.
The bearing operates efficiently within a temperature range of -30° to 110°C.
Engineered for Precision: 315835 B Bearing

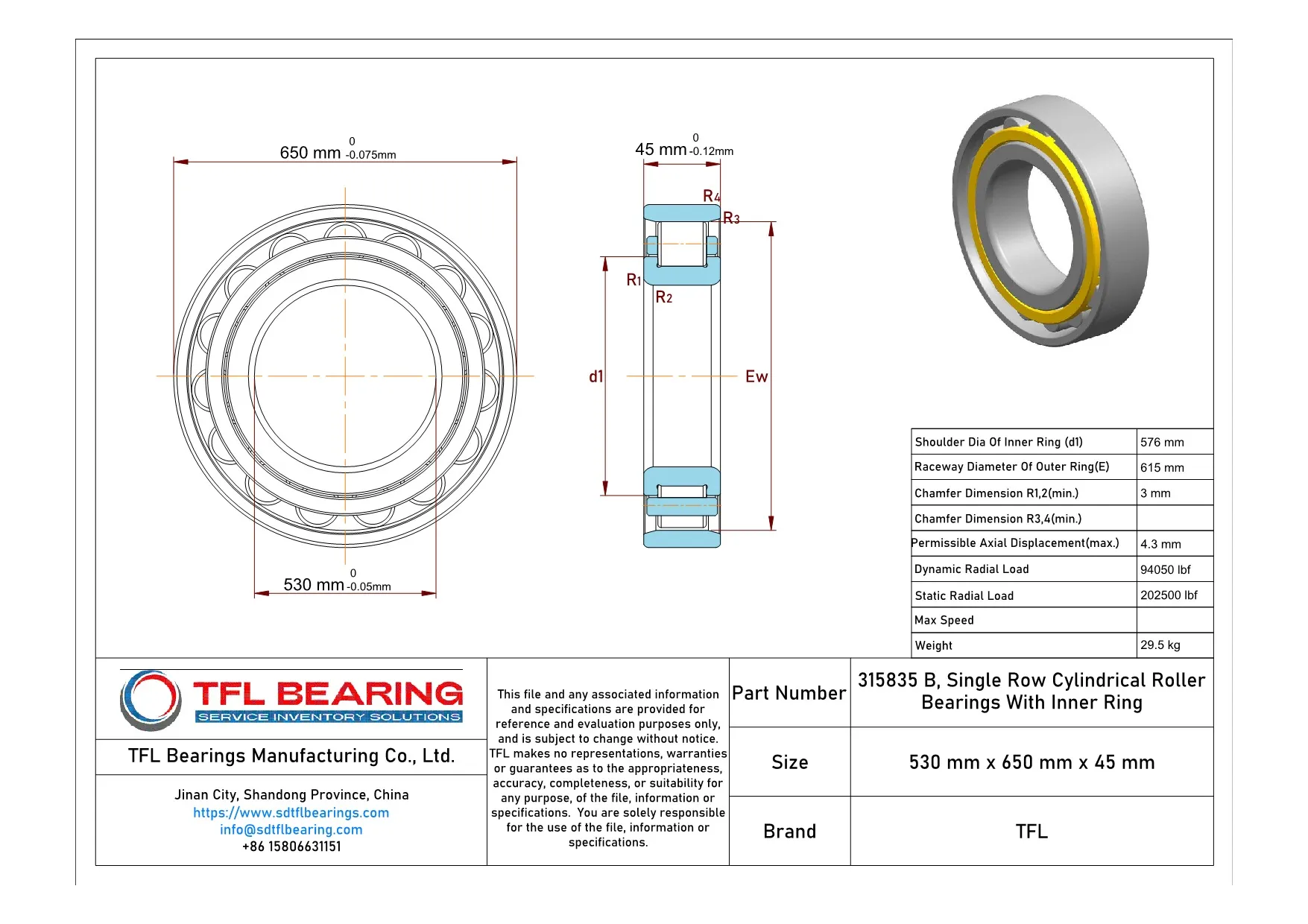

315835 B Bearing features precise dimensions, with a bore diameter of 530 mm and outer diameter of 650 mm.
Its single-row cylindrical design ensures accurate load distribution and smooth operation.
The open seal type allows for easy lubrication with grease or oil.
This design is ideal for applications requiring high precision and durability.
Why Choose 315835 B Bearing for Combined Loads?
315835 B Bearing is designed to handle both radial and axial loads effectively.
Its chamfer dimension of 3 mm ensures easy installation and reduced stress concentrations.
The bearing’s permissible axial displacement of 4.3 mm accommodates slight misalignments.
With a weight of 29.5 kg, it balances strength and manageability for industrial use.
Structural Advantages of 315835 B Bearing
315835 B Bearing’s inner ring design provides stability and ease of mounting.
The roller-centred brass cage ensures smooth rotation and reduced friction.
Its raceway diameter of 615 mm on the outer ring optimises load distribution.
This bearing is compliant with RoHS and REACH standards, ensuring environmental safety.
Industrial Uses of 315835 B Bearing
315835 B Bearing is commonly used in heavy machinery like rolling mills and large gearboxes, where its cylindrical roller design handles both radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.
Where Is 315835 B Bearing Used?
You’ll often find 315835 B Bearing in industrial fans and pumps, where its chrome steel construction offers durability. Its open design allows for easy lubrication, making it suitable for continuous operation.
Built for Heavy-Duty Use: 315835 B Bearing
315835 B Bearing excels in construction equipment like cranes, thanks to its high static radial load capacity. The metric sizing ensures compatibility with a wide range of machinery.
Automotive vs Aerospace: Applications of 315835 B Bearing
In automotive applications, 315835 B Bearing supports large drivetrain components, while in aerospace, it’s used in auxiliary systems. Its temperature range makes it versatile for different environments.
Perfect Fit for Automation: 315835 B Bearing
315835 B Bearing is ideal for automated production lines, where precision and reliability are key. The combined load handling makes it a practical choice for robotic arms and conveyor systems.
