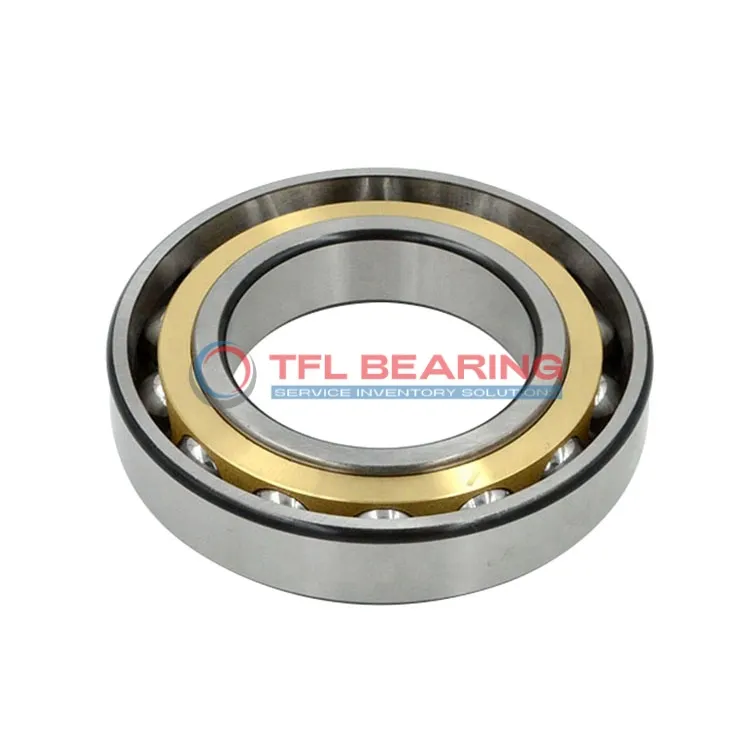

-ALS-40-ABM-Dimensions.webp)
The ALS 40 ABM is a single-row angular contact ball bearing with a 127mm bore and 228.6mm outer diameter, designed for angular loads. It handles radial loads up to 41850 lbf and operates smoothly at speeds up to 3600 RPM.
Made from chrome steel with a brass cage, it offers durability and reliable performance. The open design allows for easy lubrication, and it works in temperatures from -30°C to 110°C.
With a 30° contact angle, it’s ideal for applications requiring precise load handling, such as pumps or gearboxes. Its P6 tolerance class ensures consistent performance under demanding conditions.
Weighing 6.1kg, this bearing is robust yet manageable for industrial use. It’s interchangeable with SKF bearings, making it a practical choice for replacements. Compliant with RoHS and REACH standards.
"*" indicates required fields
Why Choose ALS 40 ABM Bearing for Precision Tasks?
ALS 40 ABM Bearing features a 30° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability and smooth operation under high loads.
The brass cage maintains ball alignment, reducing friction and extending bearing life.
With a dynamic radial load capacity of 41,850 lbf, it performs reliably in demanding applications.
ALS 40 ABM Bearing operates efficiently at speeds up to 3,600 rpm.
Its P6 tolerance class ensures precision, making it suitable for high-accuracy machinery.
The open design allows for easy lubrication, enhancing performance and longevity.
ALS 40 ABM Bearing works in temperatures from -30° to 110°C, adapting to various environments.
Industrial Uses of ALS 40 ABM Bearing
ALS 40 ABM Bearing is commonly used in heavy machinery, such as pumps and compressors, where its angular contact design handles combined radial and axial loads effectively. The brass cage ensures smooth operation even under high stress.
Where Is ALS 40 ABM Bearing Used?
In automotive applications, ALS 40 ABM Bearing fits well in wheel hubs and transmissions, thanks to its 30° contact angle for better load distribution. Its metric dimensions make it a versatile choice for various vehicle models.
Built for Heavy-Duty Use: ALS 40 ABM Bearing
For industrial fans and blowers, ALS 40 ABM Bearing’s chrome steel construction offers durability in high-speed environments. The P6 tolerance class ensures reliable performance in precision equipment.
Automotive vs Aerospace: Applications of ALS 40 ABM Bearing
In automotive systems, ALS 40 ABM Bearing supports wheel assemblies, while in aerospace, it’s used in auxiliary gearboxes. Its lubricated design reduces friction, extending service life in both sectors.
Perfect Fit for Automation: ALS 40 ABM Bearing
ALS 40 ABM Bearing works well in robotic arms and CNC machines, where its single-row design saves space without compromising load capacity. The open seal type allows for easy lubrication in automated systems.
"*" indicates required fields

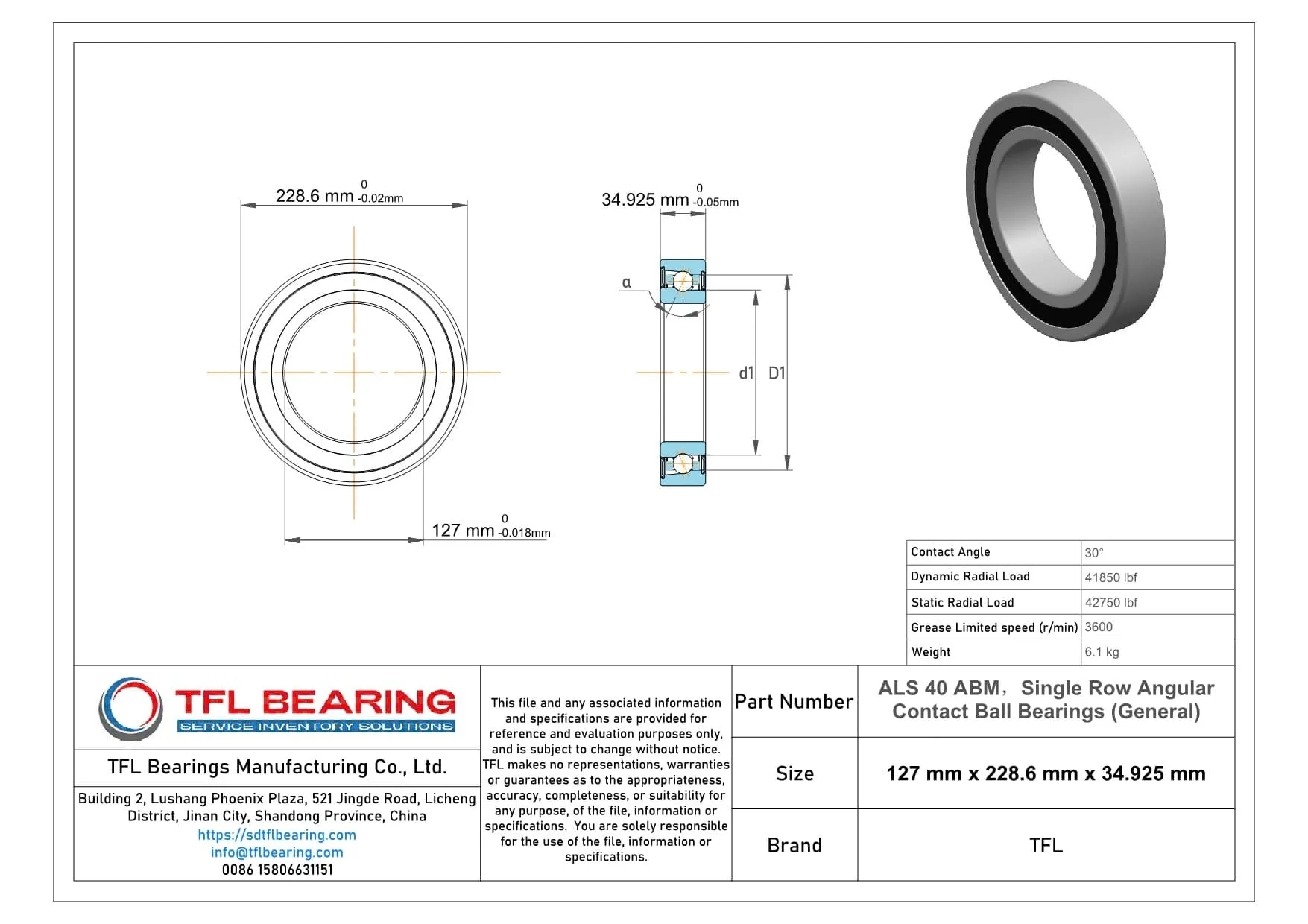

-ALS-40-ABM-Drawing.webp)
