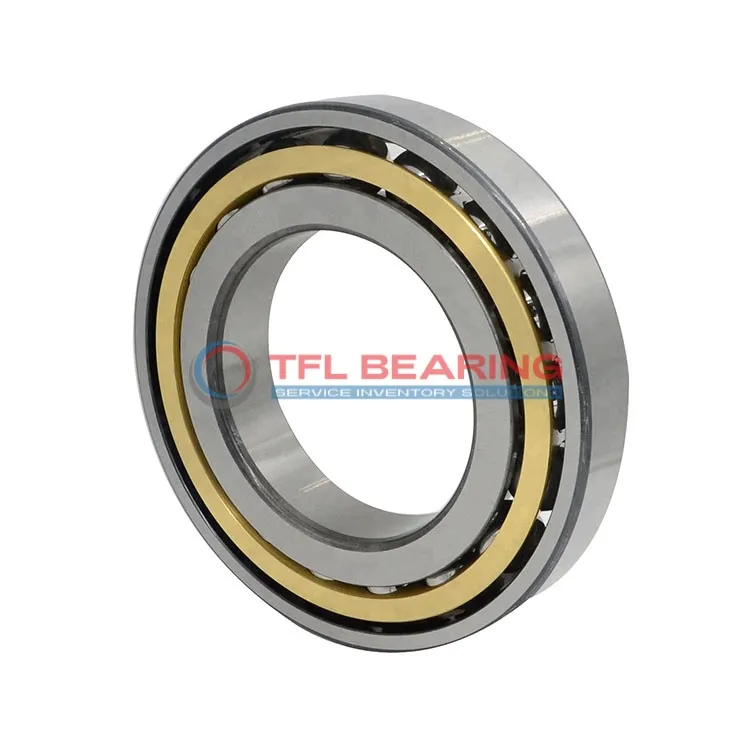

The 7334 BCBM is a single-row angular contact ball bearing with a 170mm bore and 360mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 87,750 lbf and operates smoothly at speeds up to 2600 RPM.
With a 40° contact angle, it efficiently manages combined radial and axial loads. The brass cage enhances durability, while the open design simplifies lubrication and maintenance.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for heavy-duty applications like pumps or industrial gearboxes where angular loads are common.
Weighing 36kg, it’s built for robust performance in temperatures ranging from -30°C to 110°C. Compliant with RoHS and REACH standards for safe and reliable use.
"*" indicates required fields
Performance Features of 7334 BCBM Bearing
7334 BCBM Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.
With a dynamic radial load capacity of 87,750 lbf, it performs reliably under heavy loads.
The P6 tolerance class ensures precision, making it suitable for high-accuracy applications.
Designed for speeds up to 2,600 rpm, it balances performance and durability.
Its open design allows for easy lubrication, extending its service life.
Industrial Uses of 7334 BCBM Bearing
The 7334 BCBM Bearing is commonly used in heavy industrial machinery, such as large pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently. Its brass cage ensures smooth operation even under high stress.
Where Is 7334 BCBM Bearing Used?
In automotive applications, 7334 BCBM Bearing supports components like wheel hubs and transmissions, thanks to its robust chrome steel construction. The 40° contact angle provides excellent load distribution for long-lasting performance.
Built for Heavy-Duty Use: 7334 BCBM Bearing
This bearing excels in wind turbine gearboxes, where its P6 tolerance class ensures precision under dynamic loads. The lubricated design reduces friction, making it reliable for continuous operation in harsh environments.
Automotive vs Aerospace: Applications of 7334 BCBM Bearing
While 7334 BCBM Bearing is popular in automotive systems, it also finds use in aerospace landing gear mechanisms. Its high static radial load capacity makes it suitable for demanding applications in both sectors.
Key Fields for 7334 BCBM Bearing
In robotics, 7334 BCBM Bearing is ideal for joint mechanisms requiring precise movement and durability. The open seal type allows for easy lubrication, extending its service life in automated systems.
