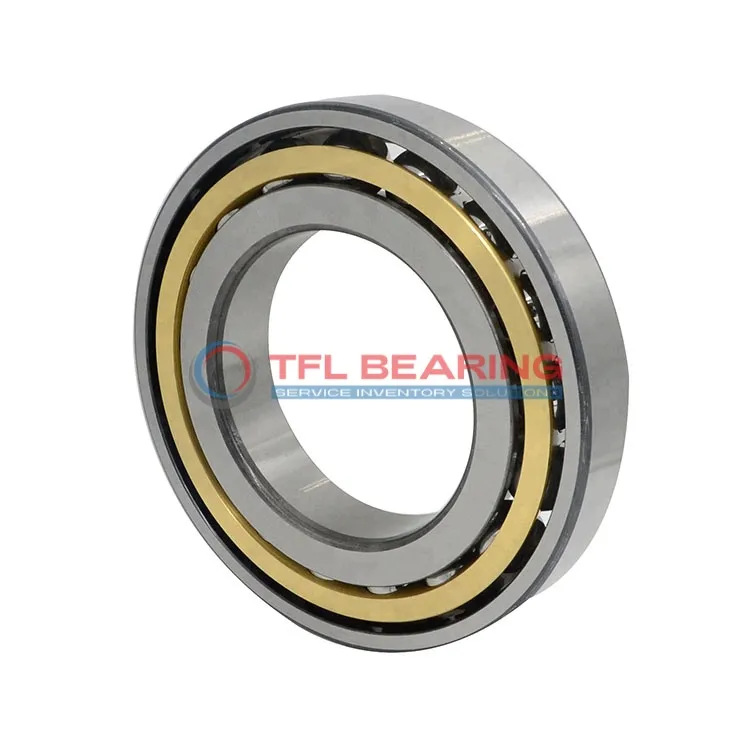

The 7330 BCBM is a single-row angular contact ball bearing with a 150mm bore and 320mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 74700 lbf and operates smoothly at speeds up to 2800 RPM.
Its 40° contact angle efficiently handles combined loads, while the brass cage ensures durability and quiet performance. The open design allows for easy lubrication, ideal for maintenance-heavy environments.
This bearing suits applications like pumps or gearboxes where angular loads are common. With a temperature range of -30°C to 110°C, it performs reliably in varied conditions.
Weighing 26kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s a dependable choice for replacements, interchangeable with SKF models.
"*" indicates required fields
Performance Features of 7330 BCBM Bearing
7330 BCBM Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.
With a dynamic radial load capacity of 74,700 lbf, it performs reliably in demanding conditions.
The P6 tolerance class offers precision, making it suitable for high-accuracy applications.
Designed for speeds up to 2,800 rpm, it balances performance and durability.
Its open design allows for easy lubrication, extending service life.
Key Fields for 7330 BCBM Bearing
In industrial settings, 7330 BCBM Bearing is commonly used in heavy machinery like pumps and compressors, where its angular contact design handles combined loads effectively. The brass cage adds durability, making it suitable for high-vibration environments.
Where Is 7330 BCBM Bearing Used?
You’ll find 7330 BCBM Bearing in automotive applications such as wheel hubs and transmissions, where its 40° contact angle improves load distribution. Its metric sizing ensures compatibility with a variety of vehicle designs.
Built for Heavy-Duty Use: 7330 BCBM Bearing
7330 BCBM Bearing excels in automation systems, particularly in robotic arms and conveyor belts, thanks to its P6 tolerance class for precision. The chrome steel construction ensures reliability even under continuous operation.
Medical vs Industrial: Where 7330 BCBM Bearing Excels
While 7330 BCBM Bearing isn’t typical for medical devices, it’s ideal for industrial equipment like gearboxes, where its static radial load capacity of 87750 lbf provides stability. The open seal design simplifies lubrication in demanding conditions.
