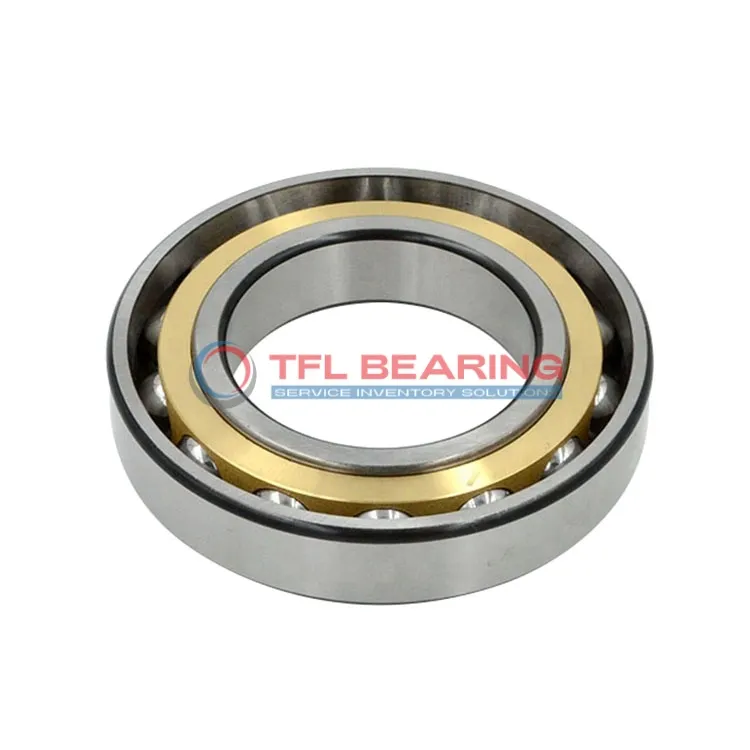

The 7328 BGAM is a single-row angular contact ball bearing with a 140mm bore and 300mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 67950 lbf and operates smoothly at speeds up to 3000 RPM.
Its 40° contact angle efficiently manages combined loads, while the brass cage enhances durability. The open design allows for easy lubrication, and it performs reliably in temperatures from -30°C to 110°C.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or machinery requiring precise angular contact.
Weighing 21.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.
"*" indicates required fields
Performance Features of 7328 BGAM Bearing
7328 BGAM Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability, while the brass cage maintains smooth operation.
With a dynamic radial load capacity of 67,950 lbf, it performs reliably in demanding conditions.
The P6 tolerance class (ABEC-3) guarantees precision, making it suitable for high-accuracy applications.
Designed for speeds up to 3,000 rpm, it balances performance and longevity.
Its open construction allows easy lubrication, ensuring consistent operation over time.
Industrial Uses of 7328 BGAM Bearing
7328 BGAM Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even under high stress.
What Makes 7328 BGAM Bearing a Preferred Choice?
In automotive applications, 7328 BGAM Bearing fits well in wheel hubs and transmissions, thanks to its 40° contact angle for better load distribution. Its P6 tolerance class offers precision for demanding driving conditions.
Built for Heavy-Duty Use: 7328 BGAM Bearing
For automation systems, 7328 BGAM Bearing supports robotic arms and conveyor belts with its chrome steel construction. The lubricated design reduces friction, extending service life in continuous operations.
Medical vs Industrial: Where 7328 BGAM Bearing Excels
While 7328 BGAM Bearing isn’t typical in medical devices, it shines in industrial settings like gearboxes and large fans. Its 300 mm outer diameter and 62 mm width provide stability for heavy loads.
Practical Applications of 7328 BGAM Bearing
In wind turbines, 7328 BGAM Bearing’s dynamic radial load capacity of 67,950 lbf ensures reliability in harsh environments. The open seal type allows for easy re-lubrication during maintenance checks.
