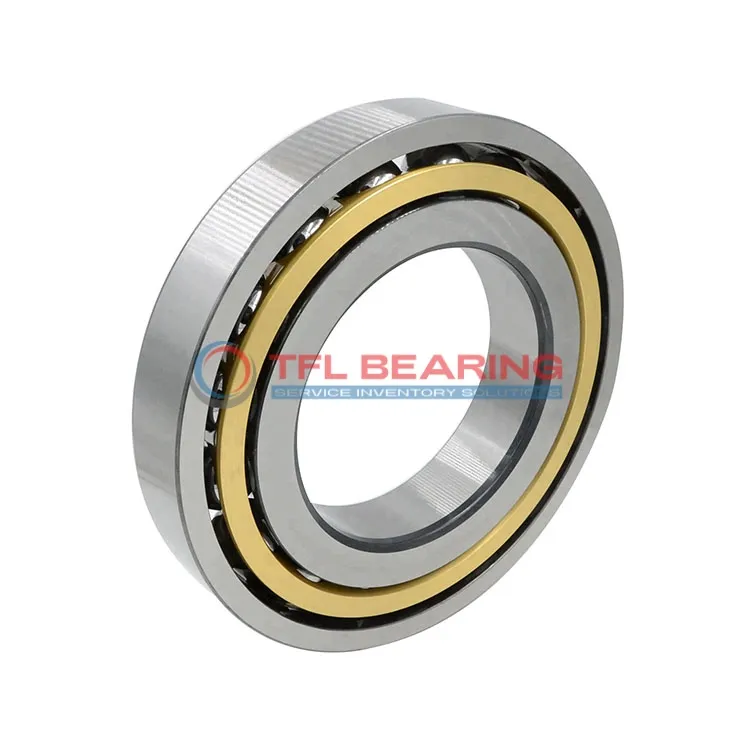

The 7326 BGAM is a single-row angular contact ball bearing with a 130mm bore and 280mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 62100 lbf and operates smoothly at speeds up to 3400 RPM.
Its 40° contact angle design efficiently manages combined loads, while the brass cage enhances durability. The open structure allows easy lubrication, suitable for temperatures from -30°C to 110°C.
This bearing meets P6 precision standards and is interchangeable with SKF models, ideal for replacements. Perfect for heavy-duty applications like pumps or industrial gearboxes where angular loads are present.
Weighing 17.1kg, it’s built for robust performance in demanding environments. Compliant with RoHS and REACH regulations for safe industrial use.
"*" indicates required fields
Performance Features of 7326 BGAM Bearing
7326 BGAM Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.
The bearing’s dynamic radial load capacity of 62,100 lbf makes it suitable for heavy-duty applications.
With a maximum speed of 3,400 rpm, it balances performance and durability.
7326 BGAM Bearing operates efficiently in temperatures from -30° to 110°C.
Its P6 tolerance class ensures precision, making it reliable for various industrial uses.
The open design simplifies maintenance, and the standard lubrication reduces downtime.
Weighing 17.1 kg, it is robust yet manageable for installation.
Industrial Uses of 7326 BGAM Bearing
7326 BGAM Bearing is commonly used in industrial machinery, such as pumps and compressors, where its angular contact design handles combined loads efficiently. The brass cage ensures smooth operation even under high radial loads.
Where Is 7326 BGAM Bearing Used?
In automotive applications, 7326 BGAM Bearing supports components like wheel hubs and transmissions, thanks to its robust chrome steel construction. Its P6 tolerance class provides the precision needed for reliable performance.
Built for Heavy-Duty Use: 7326 BGAM Bearing
7326 BGAM Bearing excels in heavy machinery, such as construction equipment, where its dynamic radial load capacity of 62100 lbf ensures durability. The open seal type allows for easy lubrication and maintenance.
Automotive vs Aerospace: Applications of 7326 BGAM Bearing
In automotive systems, 7326 BGAM Bearing is ideal for high-load scenarios like differentials. For aerospace, its precision and temperature stability make it suitable for auxiliary systems.
Perfect Fit for Automation: 7326 BGAM Bearing
7326 BGAM Bearing is a reliable choice for robotic arms and automated production lines, where its 40° contact angle ensures accurate motion control. The metric sizing fits seamlessly into European-designed machinery.
