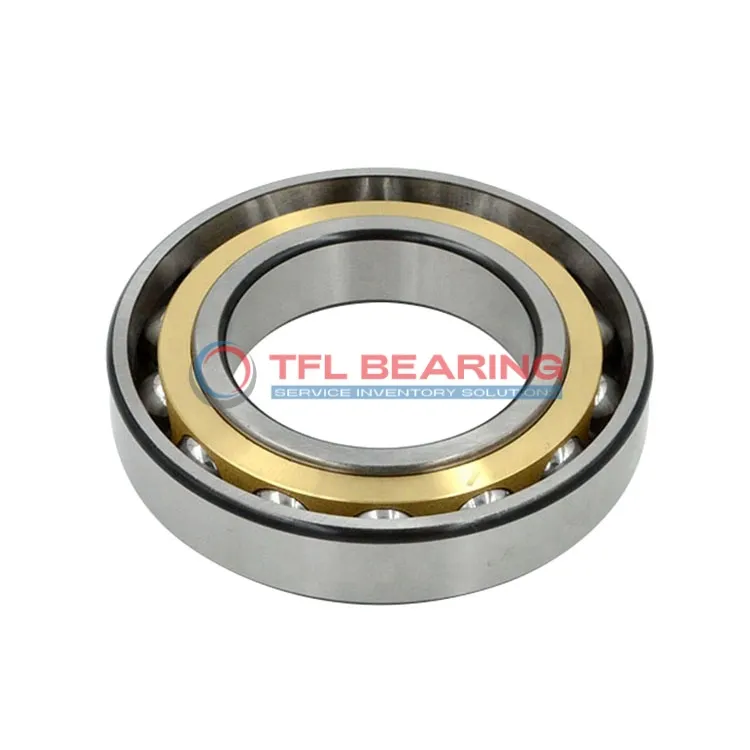

The 7324 BGAM is a single-row angular contact ball bearing with a 120mm bore and 260mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 53550 lbf and operates smoothly at speeds up to 3600 RPM.
Its 40° contact angle efficiently handles combined loads, while the brass cage enhances durability. The open design allows for easy lubrication, and it performs reliably in temperatures from -30°C to 110°C.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for heavy-duty applications like industrial gearboxes or machinery where angular contact is needed.
Weighing 14.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.
"*" indicates required fields
How Does 7324 BGAM Bearing Handle Angular Contact Loads?
7324 BGAM Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel rings and balls provide high strength, supporting dynamic radial loads up to 53,550 lbf.
The brass cage ensures smooth ball movement, reducing friction and wear during operation.
With a maximum speed of 3,600 rpm, it delivers reliable performance in various applications.
What Makes 7324 BGAM Bearing Suitable for High-Speed Applications?
7324 BGAM Bearing is designed with precision tolerances (P6 class), ensuring smooth rotation at high speeds.
The brass cage minimises vibration, contributing to quieter operation even at 3,600 rpm.
Its chrome steel construction maintains dimensional stability under load, preventing performance degradation.
The open design allows for efficient lubrication, reducing heat buildup during high-speed use.
Engineered for Precision: 7324 BGAM Bearing
7324 BGAM Bearing’s single-row design provides accurate load distribution for angular contact applications.
The precisely machined chrome steel components ensure consistent performance under heavy radial loads.
With a 3 mm chamfer dimension, it allows for easier installation in tight spaces.
Its brass cage enhances durability while maintaining smooth operation over extended periods.
Material Composition of 7324 BGAM Bearing
7324 BGAM Bearing uses high-quality chrome steel for rings and balls, offering excellent wear resistance.
The brass cage provides reliable ball guidance while resisting corrosion in various environments.
This material combination ensures stable operation within a temperature range of -30° to 110°C.
The robust construction supports heavy loads while maintaining precision alignment.
Industrial Uses of 7324 BGAM Bearing
7324 BGAM Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even under high-speed conditions.
Where Is 7324 BGAM Bearing Used?
In automotive applications, 7324 BGAM Bearing is ideal for wheel hubs and transmissions, thanks to its robust chrome steel construction. The 40° contact angle provides excellent stability during cornering and acceleration.
Built for Heavy-Duty Use: 7324 BGAM Bearing
For automation systems, 7324 BGAM Bearing supports robotic arms and CNC machines, where precision and durability are key. Its P6 tolerance class ensures reliable performance in demanding environments.
Automotive vs Aerospace: Applications of 7324 BGAM Bearing
While 7324 BGAM Bearing excels in automotive transmissions, it also finds use in aerospace components like landing gear systems. The metric sizing and high load capacity make it versatile across industries.
Key Fields for 7324 BGAM Bearing
In medical imaging devices, 7324 BGAM Bearing’s low-noise operation and high precision are invaluable. The lubricated design minimizes friction, ensuring consistent performance in sensitive equipment.
