Single Row Angular Contact Ball Bearings (General) 7320 BEGAP
Single Row Angular Contact Ball Bearings (General) 7320 BEGAP

Single Row Angular Contact Ball Bearings (General) 7320 BEGAP

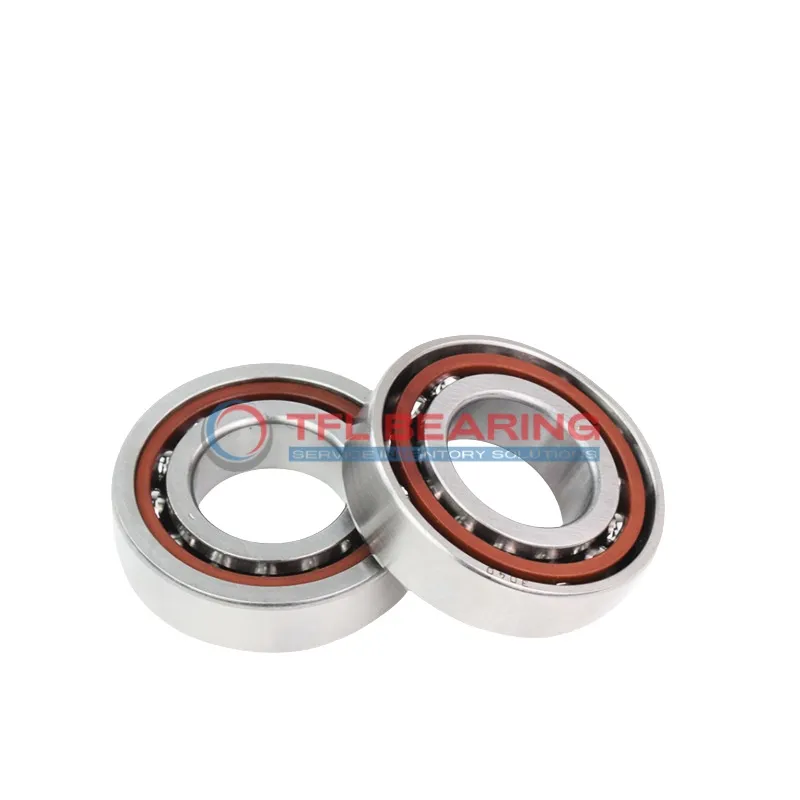

The 7320 BEGAP is a single-row angular contact ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 48600 lbf and operates smoothly at speeds up to 4000 RPM.

Its 40° contact angle efficiently manages combined loads, while the open design allows easy lubrication. The nylon cage reduces friction and noise, enhancing durability.

With a P6 tolerance class, it offers reliable precision for demanding applications. Suitable for gearboxes, pumps, or industrial machinery where angular contact is needed.

Weighing 7.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe and eco-friendly use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7320 BEGAP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 100 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 215 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 47 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 144.5 mm
  • External Diameter On Inner Ring (Small Side Face) 120.46 mm
  • Internal Diameter On Outer Ring 173.75 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 90 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 46800 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 7.5 kg

Features

Performance Features of 7320 BEGAP Bearing

7320 BEGAP Bearing is designed with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strong resistance to wear, ensuring reliable performance.

The nylon cage in 7320 BEGAP Bearing reduces friction and noise, making it suitable for precision applications.
With a dynamic radial load capacity of 48,600 lbf, it performs well under heavy loads.

7320 BEGAP Bearing operates smoothly at speeds up to 4,000 rpm, balancing efficiency and durability.
Its open design allows for easy lubrication, extending service life in various conditions.

The P6 tolerance class ensures high precision, making 7320 BEGAP Bearing suitable for demanding tasks.
Its temperature range of -30° to 110°C allows for use in diverse environments.

Application

Industrial Uses of 7320 BEGAP Bearing
7320 BEGAP Bearing is commonly used in industrial machinery like pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently. The open seal type simplifies lubrication, making it suitable for high-performance environments.

Where Is 7320 BEGAP Bearing Used?
In automotive applications, 7320 BEGAP Bearing supports wheel hubs and transmissions, thanks to its 40° contact angle for stability. The chrome steel construction ensures durability under varying loads and speeds.

Built for Heavy-Duty Use: 7320 BEGAP Bearing
For automation systems, 7320 BEGAP Bearing fits well in robotic arms and conveyor belts, where precision and load capacity are key. Its nylon cage reduces friction, enhancing smooth operation in repetitive tasks.

Automotive vs Aerospace: Applications of 7320 BEGAP Bearing
7320 BEGAP Bearing is versatile enough for both automotive gearboxes and aerospace actuators, balancing weight and strength. The P6 tolerance class ensures reliable performance in demanding conditions.

Practical Applications of 7320 BEGAP Bearing
In medical imaging devices, 7320 BEGAP Bearing provides quiet and precise movement, crucial for accurate diagnostics. The lubricated design minimises maintenance, ideal for sensitive equipment.
