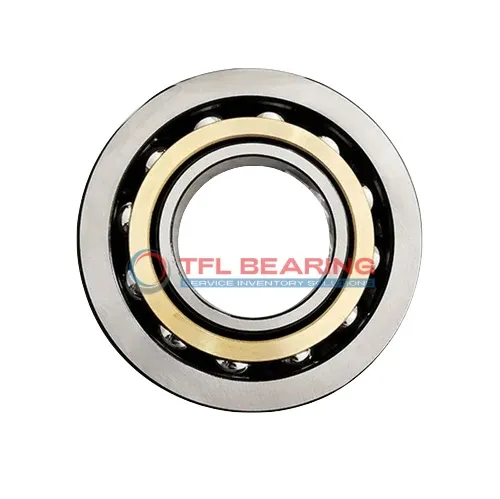

The 7320 BECBY is a single-row angular contact ball bearing with a 100mm bore and 215mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 48600 lbf and operates smoothly at speeds up to 4000 RPM.
Its 40° contact angle efficiently manages combined loads, while the brass cage ensures durability and quiet performance. The open design allows for easy lubrication and maintenance.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact is needed.
Weighing 7.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.
"*" indicates required fields
Performance Features of 7320 BECBY Bearing
7320 BECBY Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.
The dynamic radial load capacity of 48600 lbf makes it suitable for demanding applications.
With a maximum speed of 4,000 rpm, it balances performance and durability.
7320 BECBY Bearing operates efficiently within a temperature range of -30° to 110°C.
Its P6 tolerance class ensures precision, making it ideal for high-performance machinery.
Industrial Uses of 7320 BECBY Bearing
7320 BECBY Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even under high-speed conditions.
What Makes 7320 BECBY Bearing a Preferred Choice?
With a 40° contact angle, 7320 BECBY Bearing is well-suited for gearbox applications in wind turbines, providing reliable performance under varying load conditions. Its P6 tolerance class offers precision for demanding industrial environments.
Built for Heavy-Duty Use: 7320 BECBY Bearing
7320 BECBY Bearing’s chrome steel construction makes it durable for use in construction equipment, such as crane slewing rings. The lubricated design helps maintain performance in harsh outdoor conditions.
Automotive vs Aerospace: Applications of 7320 BECBY Bearing
In automotive systems, 7320 BECBY Bearing supports wheel hubs and transmissions, while in aerospace, it’s used in auxiliary power units. Its metric sizing ensures compatibility across different equipment standards.
Perfect Fit for Automation: 7320 BECBY Bearing
7320 BECBY Bearing works well in robotic arms and automated assembly lines, where its high load capacity and precision are valuable. The open seal design allows for easy relubrication during maintenance cycles.
