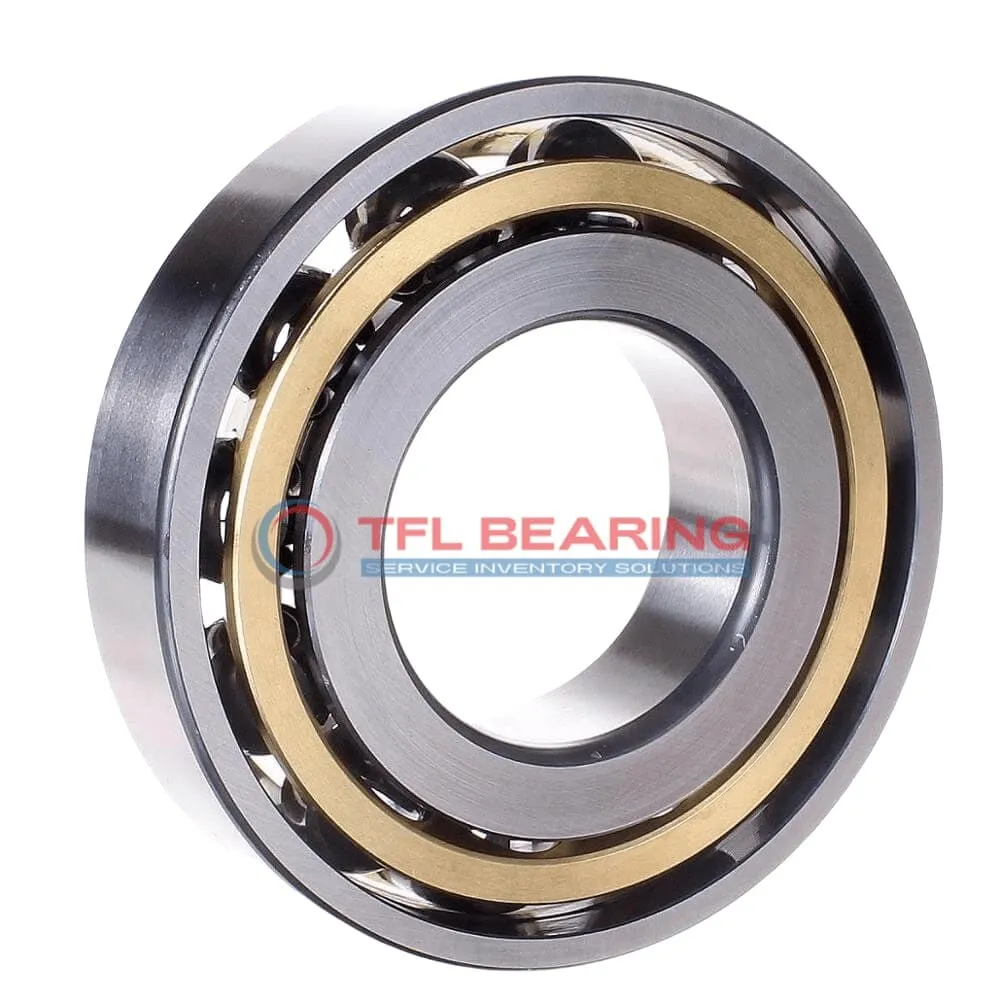

The 7319 BEM is a single-row angular contact ball bearing with a 95mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 37800 lbf and operates smoothly at speeds up to 4000 RPM.
Its 40° contact angle efficiently handles combined radial and axial loads, while the brass cage enhances durability. The open design allows for easy lubrication and maintenance.
This bearing is compatible with SKF models, making it a practical replacement option. Suitable for machinery like pumps or gearboxes where angular contact is needed.
Weighing 6.05kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, ensuring safe use in various industrial applications.
"*" indicates required fields
Performance Features of 7319 BEM Bearing
7319 BEM Bearing is designed with a 40° contact angle, optimising load distribution for angular contact applications.
The chrome steel rings and balls enhance durability, supporting dynamic radial loads up to 37,800 lbf.
Its brass cage ensures smooth operation, reducing friction and wear during high-speed rotations.
With a maximum speed of 4,000 rpm, it balances performance and longevity in demanding conditions.
The open design simplifies lubrication, maintaining efficiency across a temperature range of -30° to 110°C.
Precision-engineered to P6 tolerance, 7319 BEM Bearing delivers reliable performance in industrial applications.
Industrial Uses of 7319 BEM Bearing
7319 BEM Bearing is commonly used in heavy machinery like lathes and milling machines, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even under high rotational speeds.
Where Is 7319 BEM Bearing Used?
In automotive applications, 7319 BEM Bearing supports components such as wheel hubs and transmissions, thanks to its robust chrome steel construction. The P6 tolerance class makes it suitable for precision-driven systems.
Built for Heavy-Duty Use: 7319 BEM Bearing
For automation systems, 7319 BEM Bearing is ideal for robotic arms and CNC machines, where its 40° contact angle provides stability. The lubricated design reduces friction, extending service life in continuous operations.
Automotive vs Aerospace: Applications of 7319 BEM Bearing
While 7319 BEM Bearing excels in car transmissions, it also finds use in aircraft landing gear systems due to its high dynamic load capacity. The metric sizing ensures compatibility across various international standards.
