Single Row Angular Contact Ball Bearings (General) 7319 BECBY
Single Row Angular Contact Ball Bearings (General) 7319 BECBY

Single Row Angular Contact Ball Bearings (General) 7319 BECBY

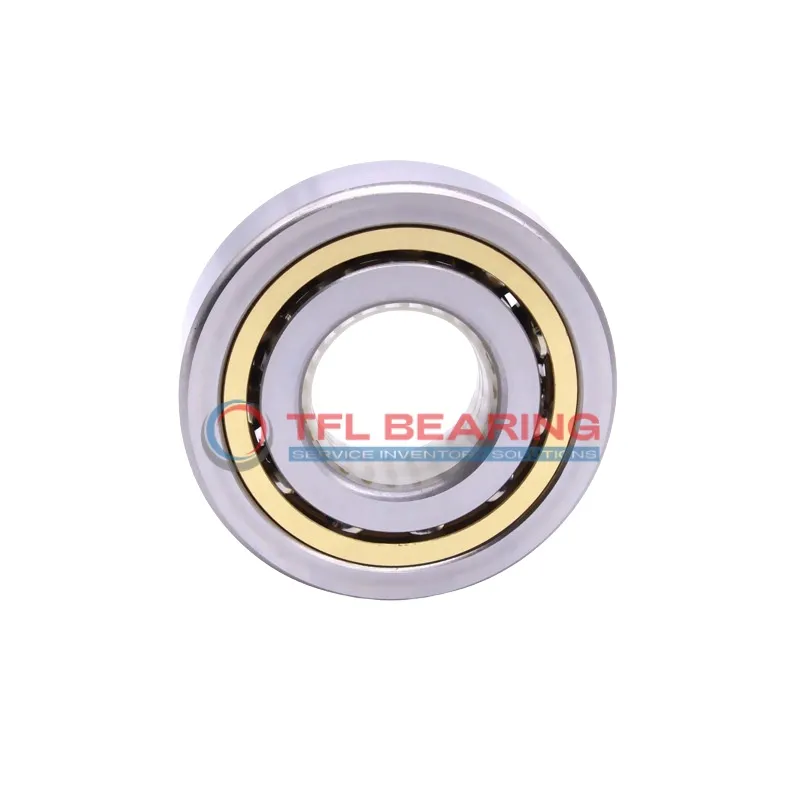

The 7319 BECBY is a single-row angular contact ball bearing with a 95mm bore and 200mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 40500 lbf and operates smoothly at speeds up to 4300 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The brass cage enhances durability, while the open design simplifies lubrication and maintenance.

This bearing suits applications like pumps or gearboxes where precise angular contact is needed. It works in temperatures from -30°C to 110°C and meets P6 tolerance standards.

Weighing 6.05kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH, it’s interchangeable with SKF bearings for easy replacement.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7319 BECBY
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 95 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 200 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 45 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 136.2 mm
  • External Diameter On Inner Ring (Small Side Face) 114.92 mm
  • Internal Diameter On Outer Ring 161.25 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 84 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 40500 lbf
  • Static Radial Load 36675 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4300 rpm
  • Weight 6.05 kg
  • Price($) 137.33

Features

Performance Features of 7319 BECBY Bearing

7319 BECBY Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

The dynamic radial load capacity of 40500 lbf makes it suitable for heavy-duty applications.
With a maximum speed of 4,300 rpm, it balances performance and durability.

7319 BECBY Bearing operates efficiently in temperatures ranging from -30° to 110°C.
Its P6 tolerance class ensures precision, making it reliable for various industrial uses.

Application

Industrial Uses of 7319 BECBY Bearing
The 7319 BECBY Bearing is commonly used in heavy machinery, such as industrial gearboxes and large pumps, where its angular contact design efficiently handles combined radial and axial loads.

Its brass cage and chrome steel construction ensure durability in high-load applications, making it a reliable choice for long-term use in demanding environments.

What Makes 7319 BECBY Bearing a Preferred Choice?
In automotive applications, 7319 BECBY Bearing is often found in wheel hubs and transmissions, providing smooth performance under varying loads.

The P6 tolerance class ensures precise operation, which is essential for maintaining vehicle stability and efficiency.

Built for Heavy-Duty Use: 7319 BECBY Bearing
For automation and robotics, 7319 BECBY Bearing supports precise movements in robotic arms and automated assembly lines.

Its open design allows for easy lubrication, ensuring consistent performance even in high-speed operations.

Medical vs Industrial: Where 7319 BECBY Bearing Excels
While 7319 BECBY Bearing is robust enough for industrial equipment, its precision also makes it suitable for medical imaging devices.

The chrome steel rings and brass cage provide a balance of strength and smooth operation, crucial for both fields.

Practical Applications of 7319 BECBY Bearing
In consumer electronics, 7319 BECBY Bearing can be used in high-performance fans and printers, where its angular contact design reduces vibration.

The lubricated construction ensures quiet operation, making it ideal for household and office environments.
