Single Row Angular Contact Ball Bearings (General) 7318 BEP
Single Row Angular Contact Ball Bearings (General) 7318 BEP

Single Row Angular Contact Ball Bearings (General) 7318 BEP

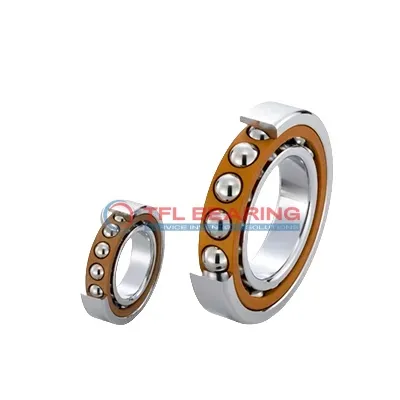

The 7318 BEP is a single-row angular contact ball bearing with a 90mm bore and 190mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently handles combined radial and axial loads up to 35100 lbf, with a maximum speed of 4000 RPM.

The open design allows easy lubrication, while the nylon cage reduces friction for smoother operation. With a P6 tolerance class, it offers reliable precision for demanding applications.

This bearing suits machinery like pumps or gearboxes where angular loads are common. It’s interchangeable with SKF models, simplifying replacements. Weighing 5.2kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 110°C.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7318 BEP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 90 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 190 mm
  • Outer Dia Tolerance -0.02mm to 0
  • Width 43 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 129.2 mm
  • External Diameter On Inner Ring (Small Side Face) 108.97 mm
  • Internal Diameter On Outer Ring 153.1 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 80 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 35100 lbf
  • Static Radial Load 30150 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4000 rpm
  • Weight 5.2 kg
  • Price($) 144.42

Features

Performance Features of 7318 BEP Bearing

7318 BEP Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the nylon cage reduces friction and noise.

With a dynamic radial load capacity of 35,100 lbf, it performs reliably in demanding applications.
The P6 tolerance class ensures precision, making it suitable for high-accuracy machinery.

7318 BEP Bearing operates smoothly at speeds up to 4,000 rpm, balancing efficiency and durability.
Its open design allows for easy lubrication, extending service life in various conditions.

The bearing’s temperature range of -30° to 110°C ensures performance in diverse environments.
Weighing 5.2 kg, it offers a robust yet manageable solution for industrial applications.

Application

Industrial Uses of 7318 BEP Bearing
7318 BEP Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The open seal type allows for easy lubrication, extending service life in demanding conditions.

What Makes 7318 BEP Bearing a Preferred Choice?
With a 40° contact angle, 7318 BEP Bearing excels in applications like gearboxes and pumps, providing stable performance under high loads. Its nylon cage reduces friction, making it suitable for high-speed operations.

Built for Heavy-Duty Use: 7318 BEP Bearing
In conveyor systems, 7318 BEP Bearing’s chrome steel construction ensures durability and resistance to wear. The P6 tolerance class offers precision, making it reliable for industrial machinery.

Automotive vs Aerospace: Applications of 7318 BEP Bearing
7318 BEP Bearing is versatile, fitting both automotive transmissions and aerospace actuators. Its metric sizing and high load capacity make it adaptable across different industries.

Perfect Fit for Automation: 7318 BEP Bearing
In robotic arms, 7318 BEP Bearing’s single-row design provides smooth rotation and precise movement. The lubricated setup ensures consistent performance in automated systems.
