Single Row Angular Contact Ball Bearings (General) 7317 BECCM
Single Row Angular Contact Ball Bearings (General) 7317 BECCM

Single Row Angular Contact Ball Bearings (General) 7317 BECCM

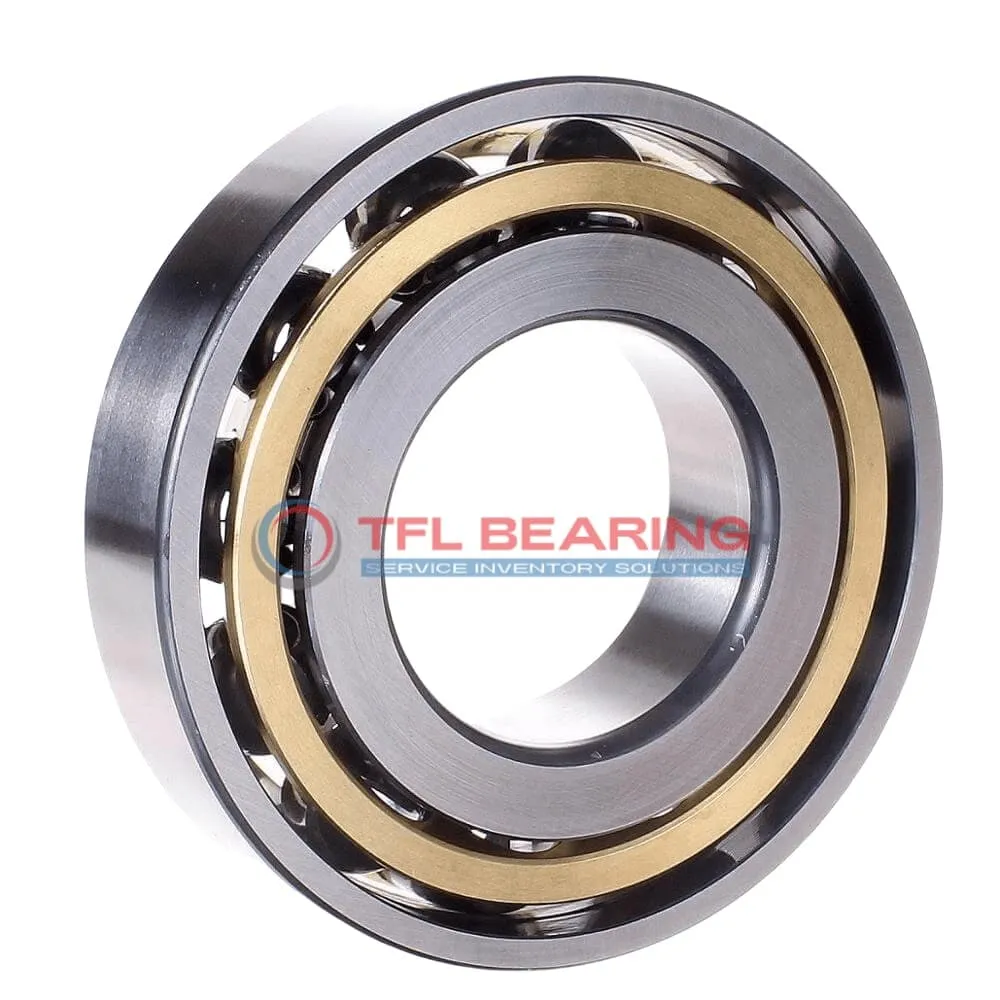

The 7317 BECCM is a single-row angular contact ball bearing with an 85mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 35100 lbf and operates smoothly at speeds up to 6000 RPM.

Its 40° contact angle efficiently handles combined loads, while the brass cage ensures durability and quiet performance. The open design allows for easy lubrication and maintenance.

This bearing suits applications like pumps or gearboxes where angular contact is needed. It’s compatible with SKF models, making replacements straightforward.

Weighing 4.62kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses. The P6 tolerance class ensures reliable precision in demanding conditions.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7317 BECCM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 41 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 122.3 mm
  • External Diameter On Inner Ring (Small Side Face) 103.03 mm
  • Internal Diameter On Outer Ring 144.95 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 76 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 35100 lbf
  • Static Radial Load 29700 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 4.62 kg
  • Price($) 116.16

Features

Why Choose 7317 BECCM Bearing for Precision Tasks?

7317 BECCM Bearing features a 40° contact angle, ideal for handling combined radial and axial loads efficiently.
Its chrome steel rings and balls ensure durability, while the brass cage maintains precise ball alignment.

With a dynamic radial load capacity of 35,100 lbf, it performs reliably in demanding applications.
The P6 tolerance class guarantees high precision, making it suitable for tasks requiring accurate performance.

7317 BECCM Bearing operates smoothly at speeds up to 6,000 rpm, balancing speed and stability.
Its open design allows for easy lubrication, ensuring consistent performance over time.

The temperature range of -30° to 110°C makes it versatile for various operating conditions.
Its robust construction and high load capacity reduce maintenance needs, saving time and costs.

Application

Industrial Uses of 7317 BECCM Bearing
The 7317 BECCM Bearing is commonly used in industrial machinery like pumps and compressors, where its angular contact design handles combined loads efficiently. Its brass cage ensures smooth operation even under high radial forces.

What Makes 7317 BECCM Bearing a Preferred Choice?
With a 40° contact angle, 7317 BECCM Bearing excels in applications requiring precise alignment, such as gearboxes and spindle assemblies. The chrome steel construction offers durability in demanding environments.

Built for Heavy-Duty Use: 7317 BECCM Bearing
In automotive transmissions, 7317 BECCM Bearing supports high-speed rotations while maintaining stability. Its P6 tolerance class ensures consistent performance in precision-driven systems.

Automotive vs Aerospace: Applications of 7317 BECCM Bearing
In automotive systems, 7317 BECCM Bearing is ideal for wheel hubs and drivetrains, balancing speed and load capacity. For aerospace, its reliability suits auxiliary power units and landing gear mechanisms.

Perfect Fit for Automation: 7317 BECCM Bearing
Robotic arms and CNC machines benefit from 7317 BECCM Bearing’s ability to handle both radial and axial loads. The lubricated design reduces friction, extending service life in continuous operation.
