Single Row Angular Contact Ball Bearings (General) 7317 BECBM
Single Row Angular Contact Ball Bearings (General) 7317 BECBM

Single Row Angular Contact Ball Bearings (General) 7317 BECBM

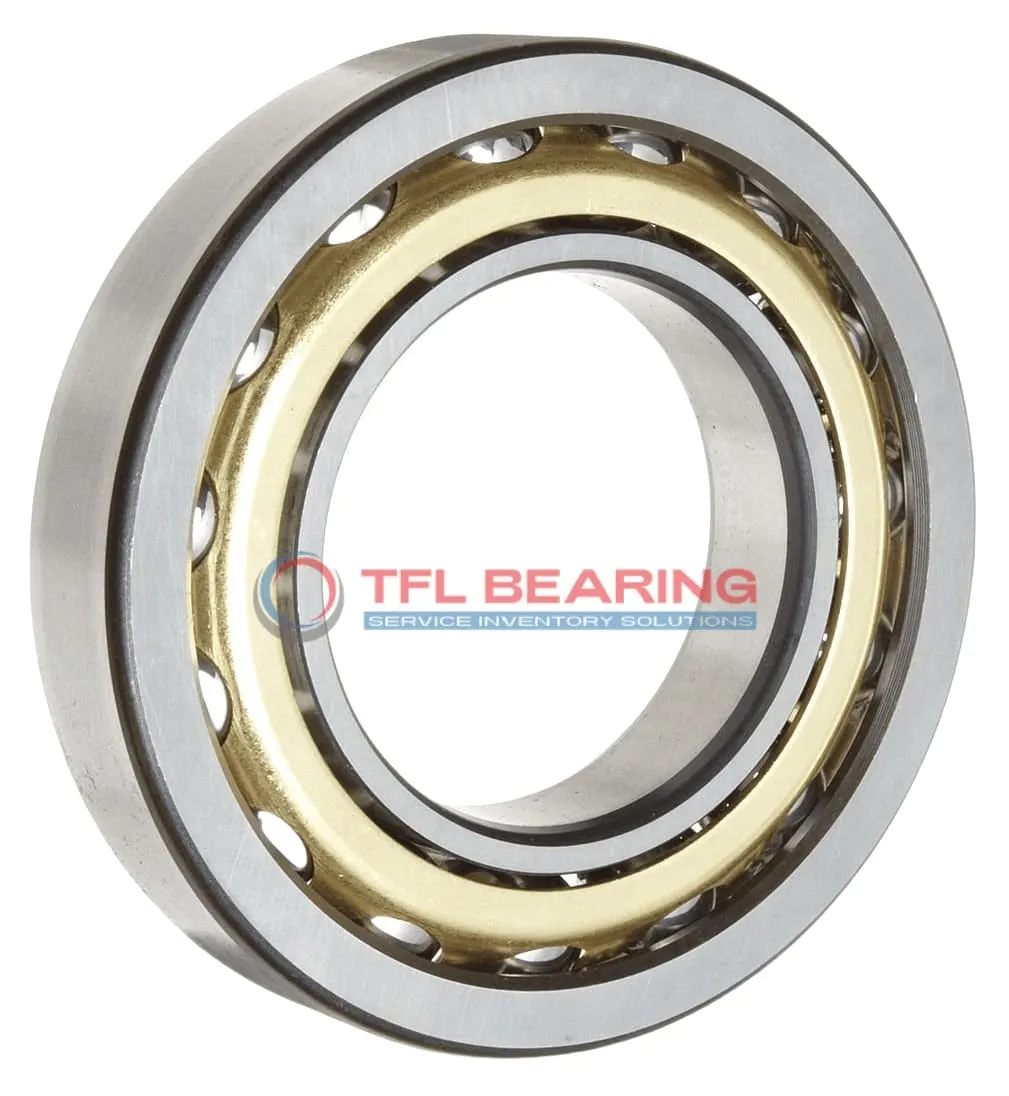

The 7317 BECBM is a single-row angular contact ball bearing with an 85mm bore and 180mm outer diameter, measuring 41mm in width. Made from chrome steel with a brass cage, it’s built to handle both radial and angular loads efficiently.

With a 40° contact angle, it manages radial loads up to 35100 lbf and spins smoothly at speeds up to 6000 RPM. Its open design allows for easy lubrication, ensuring long service life.

The bearing operates well in temperatures from -30°C to 110°C and meets P6 tolerance standards for precision. Its brass cage reduces friction, making it reliable for high-performance applications.

Ideal for machinery like pumps or gearboxes where angular loads are common. Weighing 4.62kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7317 BECBM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 41 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 122.3 mm
  • External Diameter On Inner Ring (Small Side Face) 103.03 mm
  • Internal Diameter On Outer Ring 144.95 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 76 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 35100 lbf
  • Static Radial Load 29700 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 4.62 kg
  • Price($) 113.93

Features

How Is 7317 BECBM Bearing Engineered for Reliability?

7317 BECBM Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability, while the brass cage maintains ball alignment for smooth operation.

With a dynamic radial load capacity of 35,100 lbf, 7317 BECBM Bearing performs reliably under heavy loads.
The P6 tolerance class ensures precision, making it suitable for high-speed applications up to 6,000 rpm.

Designed for a temperature range of -30° to 110°C, 7317 BECBM Bearing operates efficiently in varied conditions.
Its open design simplifies lubrication, reducing maintenance needs and extending service life.

Application

Industrial Uses of 7317 BECBM Bearing
The 7317 BECBM Bearing is commonly used in heavy machinery like gearboxes and pumps, where its angular contact design efficiently handles combined radial and axial loads.
Its brass cage and chrome steel construction ensure durability in high-load industrial environments.

What Makes 7317 BECBM Bearing a Preferred Choice?
In automotive applications, 7317 BECBM Bearing is ideal for wheel hubs and transmissions, thanks to its 40° contact angle for stability.
The metric sizing and P6 tolerance class make it compatible with precision European automotive standards.

Built for Heavy-Duty Use: 7317 BECBM Bearing
This bearing excels in automation systems, particularly robotic arms, where its high dynamic load capacity supports repetitive motion.
The open design allows for easy lubrication, extending service life in continuous operation.

Medical vs Industrial: Where 7317 BECBM Bearing Excels
While suitable for industrial presses, 7317 BECBM Bearing also meets the precision needs of medical imaging equipment.
Its temperature range and compliance with RoHS ensure safe use in sensitive environments.

Perfect Fit for Automation: 7317 BECBM Bearing
In 3D printers and CNC machines, 7317 BECBM Bearing provides smooth angular contact for precise movements.
The lubricated design reduces friction, enhancing performance in high-speed applications.
