Single Row Angular Contact Ball Bearings (General) 7316 BEGBY
Single Row Angular Contact Ball Bearings (General) 7316 BEGBY

Single Row Angular Contact Ball Bearings (General) 7316 BEGBY

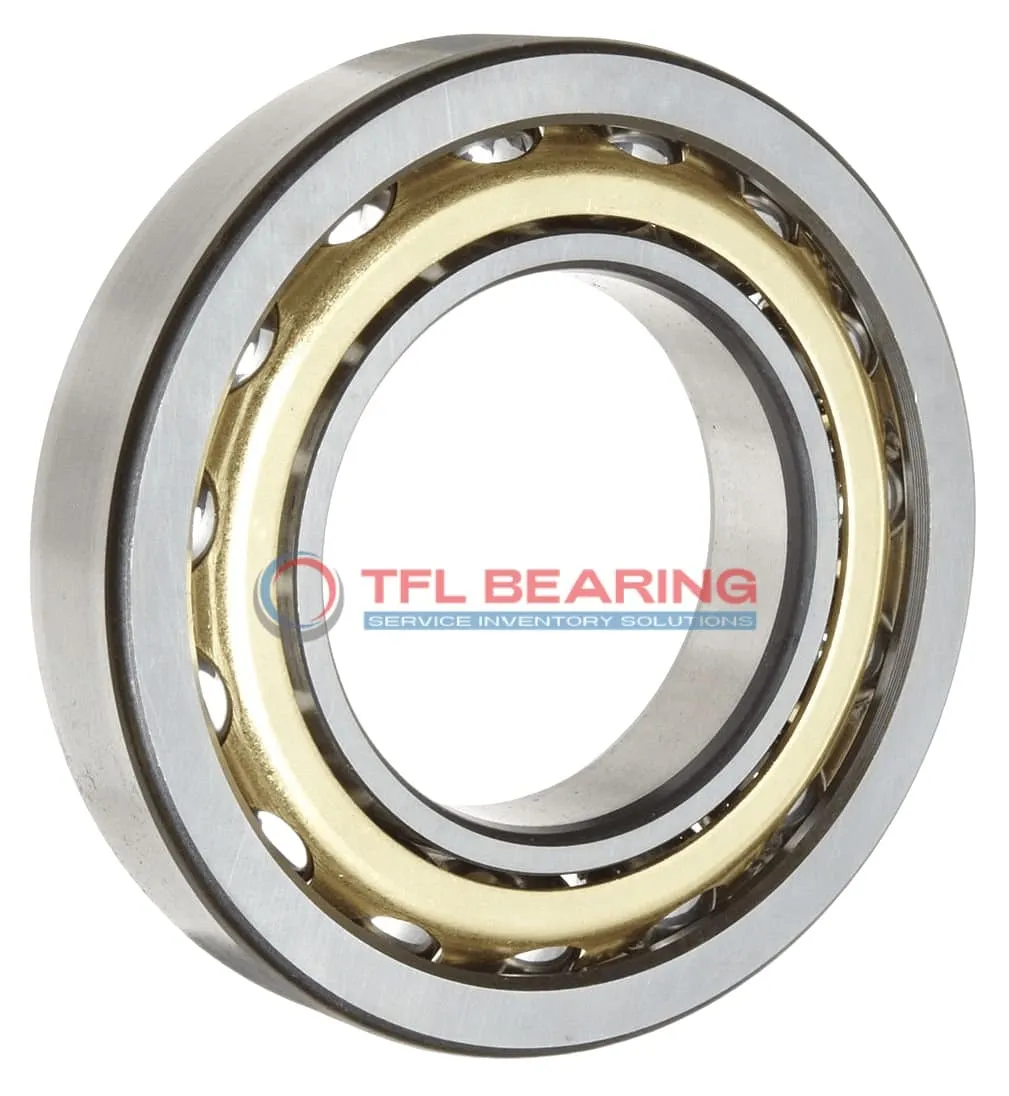

The 7316 BEGBY is a single-row angular contact ball bearing with an 80mm bore and 170mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 32175 lbf and operates smoothly at speeds up to 5000 RPM.

Its 40° contact angle efficiently handles combined loads, while the brass cage enhances durability. The open design simplifies lubrication, and it performs reliably in temperatures from -30°C to 110°C.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suited for applications like pumps or gearboxes where angular contact is needed.

Weighing 3.8kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7316 BEGBY
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 80 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 170 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 39 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 115.2 mm
  • External Diameter On Inner Ring (Small Side Face) 97.07 mm
  • Internal Diameter On Outer Ring 136.75 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 72 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 32175 lbf
  • Static Radial Load 26550 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 3.8 kg
  • Price($) 94.76

Features

Why Choose 7316 BEGBY Bearing for Precision Tasks?

7316 BEGBY Bearing features a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel construction ensures durability and reliable performance under high dynamic radial loads of 32,175 lbf.
The brass cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 5,000 rpm and P6 tolerance class, it offers precision in demanding applications.

Application

Industrial Uses of 7316 BEGBY Bearing
The 7316 BEGBY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its brass cage ensures smooth operation even at moderate speeds.

Where Is 7316 BEGBY Bearing Used?
In automotive applications like wheel hubs, 7316 BEGBY Bearing provides reliable performance due to its chrome steel construction. The P6 tolerance class makes it suitable for precision components.

Built for Heavy-Duty Use: 7316 BEGBY Bearing
This bearing excels in conveyor systems, where its high dynamic radial load capacity ensures longevity. The open design allows for easy lubrication, reducing maintenance downtime.

Automotive vs Aerospace: Applications of 7316 BEGBY Bearing
While 7316 BEGBY Bearing is popular in car transmissions for its durability, it also finds use in aircraft auxiliary systems. Its temperature range suits both environments well.

Perfect Fit for Automation: 7316 BEGBY Bearing
In robotic arms, 7316 BEGBY Bearing’s angular contact design supports precise movement. The lubricated build minimises friction, enhancing efficiency in repetitive tasks.
