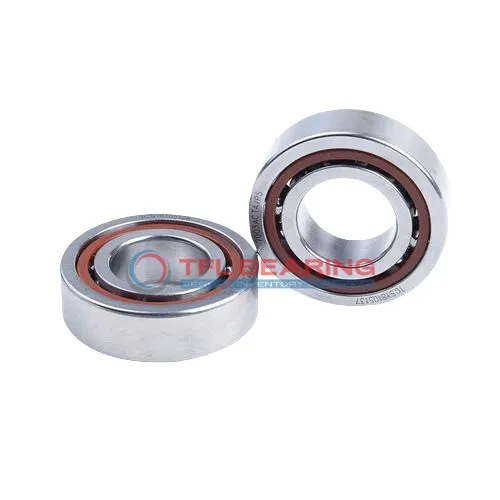

The 7314 BEP is a single-row angular contact ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 26775 lbf and operates smoothly at speeds up to 5300 RPM.
Its 40° contact angle efficiently manages combined loads, while the nylon cage reduces friction and noise. The open design allows for easy lubrication and maintenance.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact is needed.
Weighing 2.65kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.
"*" indicates required fields
Performance Features of 7314 BEP Bearing
7314 BEP Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the nylon cage ensures smooth operation.
The dynamic radial load capacity of 26775 lbf makes it suitable for demanding applications.
With a maximum speed of 5,300 rpm, it balances performance and durability.
7314 BEP Bearing operates efficiently in temperatures from -30° to 110°C.
Its P6 tolerance class ensures precision and reliability in various conditions.
Industrial Uses of 7314 BEP Bearing
7314 BEP Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The open design and nylon cage reduce friction, making it suitable for high-speed spindle applications.
Where Is 7314 BEP Bearing Used?
In automotive systems, 7314 BEP Bearing supports components like wheel hubs and transmissions, thanks to its robust chrome steel construction. Its metric sizing ensures compatibility with a variety of vehicle designs.
Built for Heavy-Duty Use: 7314 BEP Bearing
For conveyor systems and industrial fans, 7314 BEP Bearing offers reliable performance under continuous operation. The P6 tolerance class ensures precision in demanding environments.
Medical vs Industrial: Where 7314 BEP Bearing Excels
While 7314 BEP Bearing is versatile in industrial settings, it also finds use in medical imaging devices where smooth rotation is essential. The lubricated design helps maintain consistent performance over time.
Automotive vs Aerospace: Applications of 7314 BEP Bearing
7314 BEP Bearing is a go-to choice for automotive gearboxes, but its precision also makes it suitable for aerospace actuators. The temperature range of -30° to 110°C ensures reliability in varied conditions.
