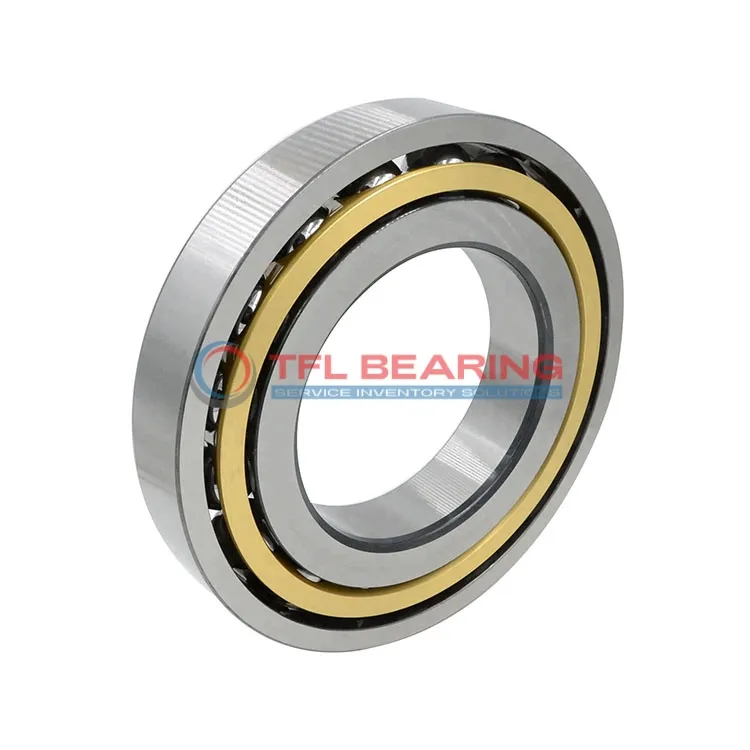

The 7314 BEGAY is a single-row angular contact ball bearing with a 70mm bore and 150mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and axial loads, supporting up to 28575 lbf dynamically.
Designed for high-speed use, it reaches up to 5600 RPM and operates smoothly in temperatures from -30°C to 110°C. The brass cage enhances durability while the open seal allows easy lubrication.
With a P6 tolerance class, it offers reliable precision for demanding applications. Its compact 35mm width and 2.65kg weight make it suitable for space-conscious setups.
Ideal for machinery like pumps or gearboxes where angular loads are common. This model is interchangeable with SKF bearings, ensuring easy replacements. Compliant with RoHS and REACH standards for safety.
"*" indicates required fields
Performance Features of 7314 BEGAY Bearing
7314 BEGAY Bearing is designed with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability and resistance to wear in demanding applications.
The brass cage maintains ball alignment, reducing friction and extending the bearing’s operational life.
With a dynamic radial load capacity of 28,575 lbf, it performs reliably under heavy loads.
7314 BEGAY Bearing operates smoothly at speeds up to 5,600 rpm, balancing efficiency and performance.
Its P6 tolerance class ensures precision, making it suitable for high-accuracy machinery.
The open design allows for easy lubrication, maintaining optimal performance over time.
It functions effectively in temperatures ranging from -30° to 110°C, adapting to various environments.
Industrial Uses of 7314 BEGAY Bearing
The 7314 BEGAY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even at moderate speeds, making it suitable for spindle applications.
In automotive systems, 7314 BEGAY Bearing supports components like wheel hubs and transmissions, thanks to its high dynamic load capacity. The P6 tolerance class provides the precision needed for reliable performance in demanding conditions.
For automation equipment, 7314 BEGAY Bearing’s open design allows easy lubrication, extending service life in robotic arms and conveyor systems. Its chrome steel construction offers durability in continuous operation environments.
Medical imaging devices benefit from 7314 BEGAY Bearing’s stable performance under precise loads. The lubricated design minimises friction, ensuring quiet operation in sensitive diagnostic equipment.
In household appliances like washing machines, 7314 BEGAY Bearing’s balanced load handling contributes to smoother spinning cycles. The metric sizing ensures compatibility with a wide range of European-designed models.
