Single Row Angular Contact Ball Bearings (General) 7313 BEP
Single Row Angular Contact Ball Bearings (General) 7313 BEP

Single Row Angular Contact Ball Bearings (General) 7313 BEP

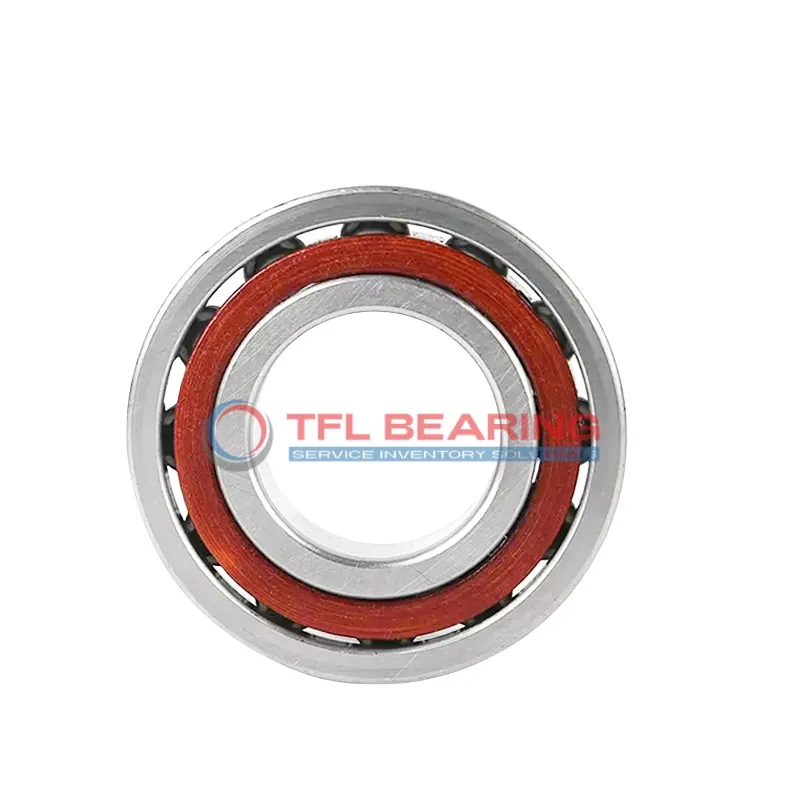

The 7313 BEP is a single-row angular contact ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 24300 lbf and operates smoothly at speeds up to 5600 RPM.

Its 40° contact angle efficiently handles combined loads, while the nylon cage reduces friction and noise. The open design allows for easy lubrication and maintenance.

This bearing suits applications like pumps or gearboxes where angular contact is needed. It works in temperatures from -30°C to 110°C and meets P6 precision standards.

Weighing 2.15kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH, it’s a reliable choice for replacements, interchangeable with SKF models.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7313 BEP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 140 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 33 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 94.15 mm
  • External Diameter On Inner Ring (Small Side Face) 78.45 mm
  • Internal Diameter On Outer Ring 112.85 mm
  • Chamfer Dimension 2.1 mm
  • Distance Pressure Point (a) 60 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 24300 lbf
  • Static Radial Load 18000 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5600 rpm
  • Weight 2.15 kg
  • Price($) 47.63

Features

Performance Features of 7313 BEP Bearing

7313 BEP Bearing is designed with a 40° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls provide strong resistance to both dynamic and static radial loads.

The nylon cage in 7313 BEP Bearing ensures smooth operation while reducing noise and vibration.
With a maximum speed of 5,600 rpm, it balances performance and durability in various conditions.

7313 BEP Bearing operates efficiently within a temperature range of -30° to 110°C.
Its P6 tolerance class ensures precision and reliability in demanding applications.

Application

Industrial Uses of 7313 BEP Bearing
7313 BEP Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The open seal type allows for easy lubrication, ensuring long service life in demanding conditions.

Where Is 7313 BEP Bearing Used?
In automotive applications, 7313 BEP Bearing supports components like wheel hubs and transmissions, thanks to its high dynamic load capacity. The 40° contact angle provides stability during high-speed rotations.

Built for Heavy-Duty Use: 7313 BEP Bearing
For automation systems, 7313 BEP Bearing is ideal for robotic arms and conveyor belts, where precision and durability are key. Its nylon cage reduces friction, making it suitable for continuous operation.

Medical vs Industrial: Where 7313 BEP Bearing Excels
In medical imaging devices, 7313 BEP Bearing offers smooth and quiet operation, essential for accurate diagnostics. Meanwhile, in industrial settings, it excels in pumps and compressors due to its robust construction.

Light-Duty vs Heavy-Duty: Best Uses for 7313 BEP Bearing
For light-duty applications like office printers, 7313 BEP Bearing ensures reliable performance with minimal maintenance. In heavy-duty scenarios such as construction equipment, it withstands high loads and harsh environments effortlessly.
