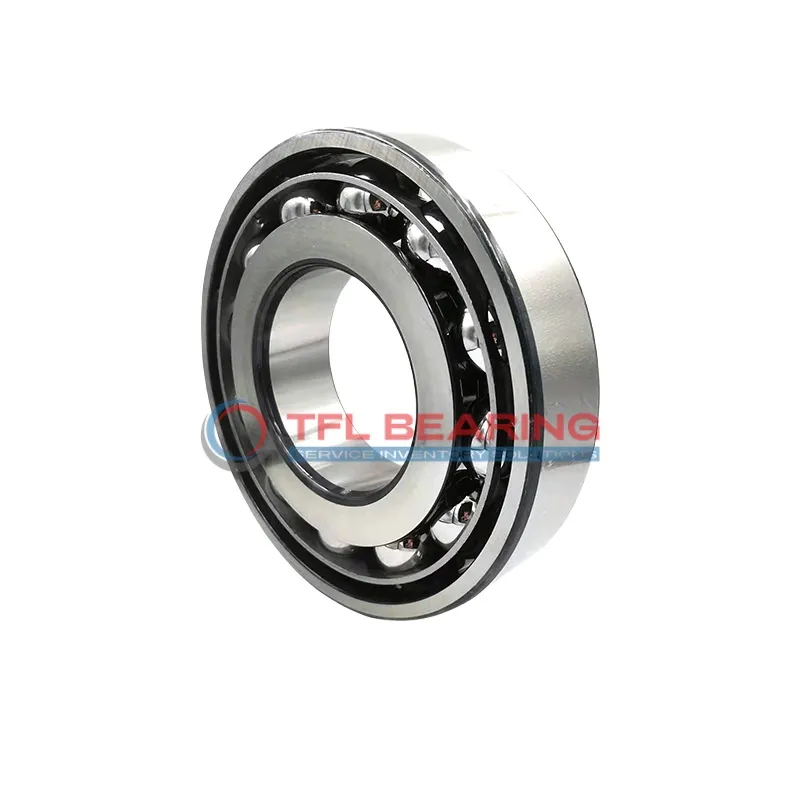

The 7313 BEGAF is a single-row angular contact ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 24300 lbf and operates smoothly at speeds up to 5600 RPM.
With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design allows for easy lubrication, while the stainless steel cage ensures durability.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact is needed.
Weighing 2.15kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.
"*" indicates required fields
Performance Features of 7313 BEGAF Bearing
7313 BEGAF Bearing is designed with a 40° contact angle, optimising its ability to handle combined radial and axial loads.
The chrome steel construction ensures durability and resistance to wear in demanding applications.
With a dynamic radial load capacity of 24,300 lbf, 7313 BEGAF Bearing performs reliably under heavy loads.
Its stainless steel cage maintains ball alignment, reducing friction and extending operational life.
7313 BEGAF Bearing operates smoothly at speeds up to 5,600 rpm, making it suitable for high-performance machinery.
The open design allows for easy lubrication, ensuring consistent performance over time.
The P6 tolerance class of 7313 BEGAF Bearing guarantees precision and reliability in various industrial applications.
Its temperature range of -30° to 110°C ensures functionality in diverse operating conditions.
Industrial Uses of 7313 BEGAF Bearing
The 7313 BEGAF Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its open design and stainless steel cage make it suitable for high-speed operations in industrial settings.
In automotive applications, 7313 BEGAF Bearing is found in gearboxes and wheel hubs, providing reliable performance under angular loads. The metric dimensions ensure compatibility with a variety of vehicle designs.
For automation systems, 7313 BEGAF Bearing supports robotic arms and conveyor belts, thanks to its precise P6 tolerance. The chrome steel construction ensures durability in continuous operation.
Medical imaging devices benefit from 7313 BEGAF Bearing’s smooth operation and low maintenance needs. Its lubricated design reduces friction, making it ideal for sensitive equipment.
In household appliances like washing machines, 7313 BEGAF Bearing offers quiet and efficient performance. The balanced load capacity ensures longevity even with frequent use.
