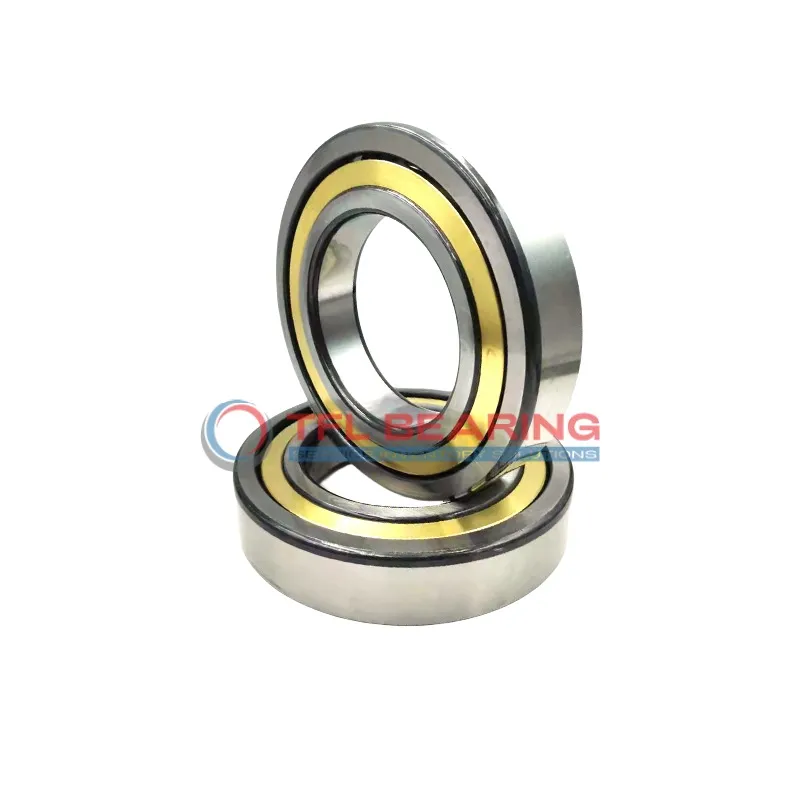

The 7313 BECBY is a single-row angular contact ball bearing with a 65mm bore and 140mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and thrust loads, suitable for speeds up to 6300 RPM.
The brass cage enhances durability and reduces friction, while the open design allows for easy lubrication. With a dynamic radial load capacity of 26100 lbf, it’s built to handle demanding conditions.
This bearing operates smoothly in temperatures ranging from -30°C to 110°C and meets P6 tolerance standards for precision. Ideal for industrial machinery, pumps, or gearboxes where reliable angular contact performance is needed.
Weighing 2.15kg, it’s robust yet manageable for its size, and is interchangeable with SKF bearings for convenient replacements. Compliant with RoHS and REACH regulations for safe use.
"*" indicates required fields
Performance Features of 7313 BECBY Bearing
7313 BECBY Bearing features a 40° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls enhance durability, supporting dynamic radial loads up to 26,100 lbf.
The brass cage ensures smooth operation, reducing friction and wear during high-speed rotations.
With a maximum speed of 6,300 rpm, it balances performance and longevity in demanding conditions.
Designed for precision, 7313 BECBY Bearing maintains stability across a temperature range of -30° to 110°C.
Its P6 tolerance class guarantees consistent performance, making it ideal for industrial applications.
Industrial Uses of 7313 BECBY Bearing
The 7313 BECBY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its brass cage ensures smooth operation even at high speeds, making it suitable for demanding industrial environments.
Where Is 7313 BECBY Bearing Used?
You’ll often find the 7313 BECBY Bearing in automotive transmissions, where its robust design supports high-performance requirements. The chrome steel construction provides durability, while the P6 tolerance class ensures precision in critical applications.
Built for Heavy-Duty Use: 7313 BECBY Bearing
In conveyor systems, the 7313 BECBY Bearing excels due to its ability to manage heavy loads and maintain stability. The open seal design allows for easy lubrication, extending its service life in continuous operation scenarios.
Automotive vs Aerospace: Applications of 7313 BECBY Bearing
While the 7313 BECBY Bearing is popular in automotive gearboxes, it also finds use in aerospace components where precision and reliability are key. Its metric sizing and high dynamic load capacity make it versatile across industries.
Perfect Fit for Automation: 7313 BECBY Bearing
The 7313 BECBY Bearing is ideal for robotic arms, offering smooth movement and precise load handling. Its brass cage reduces friction, ensuring consistent performance in automated production lines.
