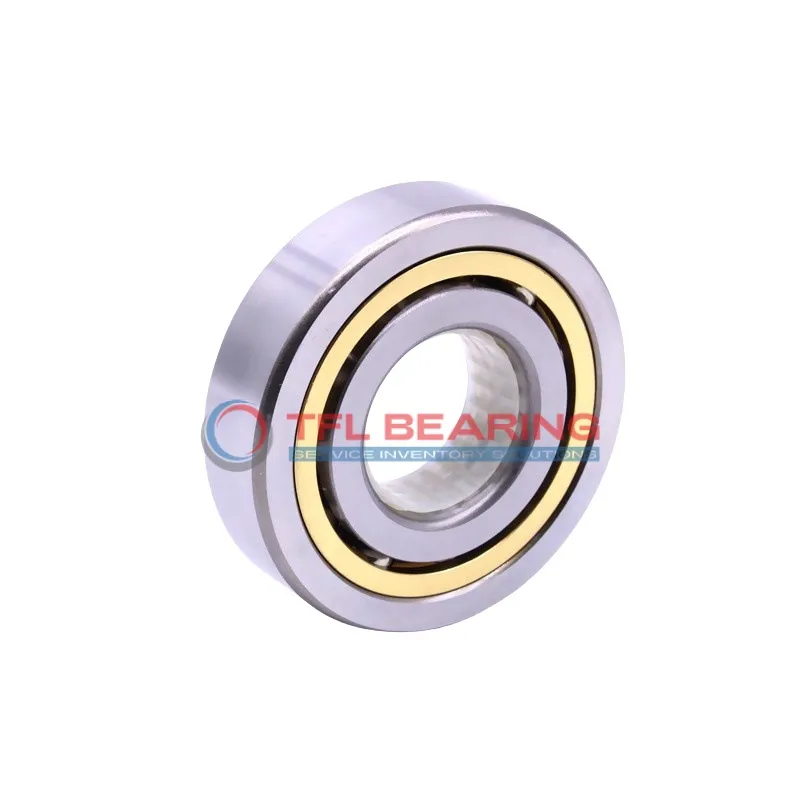

The 7312 BEGAM is a single-row angular contact ball bearing with a 60mm bore and 130mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and axial loads, supporting up to 23400 lbf dynamically.
The brass cage enhances durability, while the open design allows for straightforward lubrication. It operates smoothly at speeds up to 8500 RPM and handles temperatures from -30°C to 110°C.
This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for machinery like pumps or gearboxes where angular contact loads are prevalent.
Weighing 1.75kg, it balances strength and manageability. Compliant with RoHS and REACH standards, it ensures safe and eco-friendly use.
"*" indicates required fields
Performance Features of 7312 BEGAM Bearing
7312 BEGAM Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.
With a dynamic radial load capacity of 23,400 lbf, it performs reliably in demanding conditions.
The P6 tolerance class (ABEC-3) ensures precision, making it suitable for high-speed applications.
Designed for temperatures from -30° to 110°C, 7312 BEGAM Bearing maintains performance in varied environments.
Its open design allows easy lubrication, reducing maintenance needs and extending service life.
Industrial Uses of 7312 BEGAM Bearing
The 7312 BEGAM Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its brass cage ensures smooth operation even at high speeds, making it suitable for demanding industrial environments.
In automotive applications, 7312 BEGAM Bearing supports gearboxes and wheel hubs, providing reliable performance under angular loads. The chrome steel construction enhances durability, ensuring long service life in vehicle systems.
For automation equipment, 7312 BEGAM Bearing is a solid choice for robotic arms and precision machinery. Its P6 tolerance class guarantees consistent performance, which is essential for high-accuracy tasks.
In wind turbines, 7312 BEGAM Bearing handles the dynamic loads generated by rotor blades. The lubricated design helps maintain performance in varying weather conditions, reducing maintenance needs.
Household appliances like washing machines also benefit from 7312 BEGAM Bearing’s balanced load capacity. Its open seal design allows for easy lubrication, ensuring quiet and efficient operation over time.
