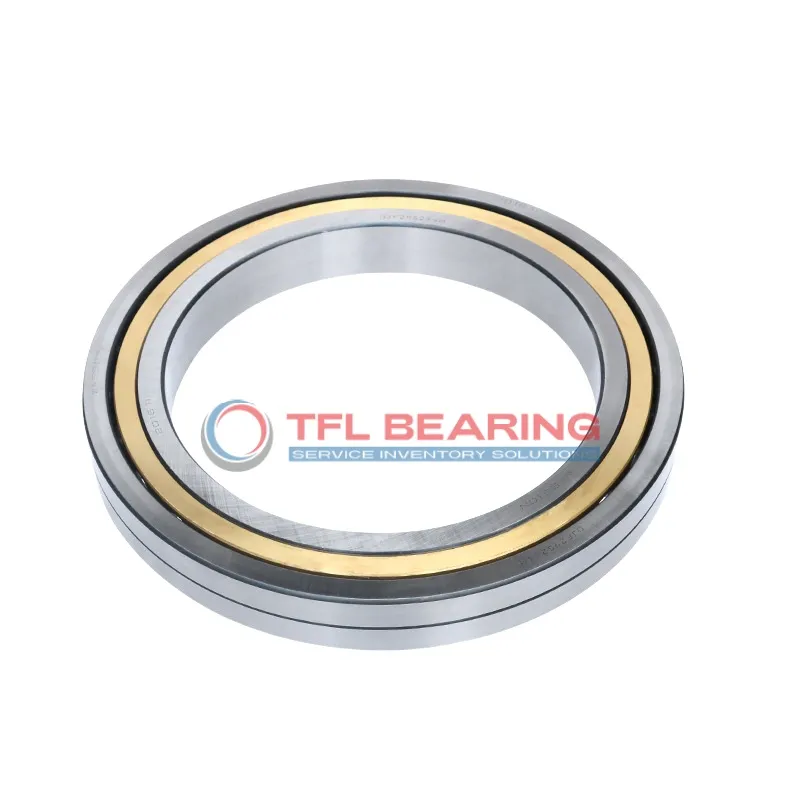

The 7311 ACCBM is a single-row angular contact ball bearing with a 55mm bore and 120mm outer diameter, crafted from sturdy chrome steel. Its 25° contact angle efficiently handles combined radial and axial loads, supporting up to 21712 lbf dynamically.
The brass cage enhances durability, while the open design allows easy lubrication. It operates smoothly at speeds up to 11000 RPM and works in temperatures from -30°C to 110°C.
With a P6 tolerance class, it offers reliable precision for demanding applications. This model is interchangeable with SKF bearings, making replacements straightforward. Ideal for machinery like pumps or gearboxes where angular loads are present.
Weighing 1.4kg, it balances strength and manageability. Compliant with RoHS and REACH standards for safe industrial use.
"*" indicates required fields
Performance Features of 7311 ACCBM Bearing
7311 ACCBM Bearing features a 25° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.
The brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a dynamic radial load capacity of 21,712 lbf, it performs reliably under heavy loads.
7311 ACCBM Bearing operates efficiently at speeds up to 11,000 rpm, balancing speed and stability.
Its P6 tolerance class guarantees precision, making it suitable for high-performance machinery.
Designed for a temperature range of -30° to 110°C, it adapts to various working conditions.
The open seal type allows for easy lubrication, ensuring long service life with minimal maintenance.
Industrial Uses of 7311 ACCBM Bearing
7311 ACCBM Bearing is commonly used in machine tools, where its 25° contact angle efficiently handles combined radial and axial loads. The brass cage ensures smooth operation at high speeds, making it suitable for precision machining.
In automotive applications, 7311 ACCBM Bearing supports gearboxes and wheel hubs, providing reliable performance under varying loads. Its metric sizing and P6 tolerance class make it a versatile choice for European and Asian vehicle models.
For automation systems, 7311 ACCBM Bearing is ideal for robotic arms and conveyor belts, thanks to its durable chrome steel construction. The open design allows for easy lubrication, extending its service life in continuous operation.
Medical imaging devices benefit from 7311 ACCBM Bearing’s consistent performance and low noise levels. The brass cage reduces friction, ensuring smooth rotation in sensitive equipment like MRI scanners.
In household appliances, 7311 ACCBM Bearing is often found in washing machines and air conditioners. Its ability to handle both radial and axial loads makes it a dependable choice for everyday use.
