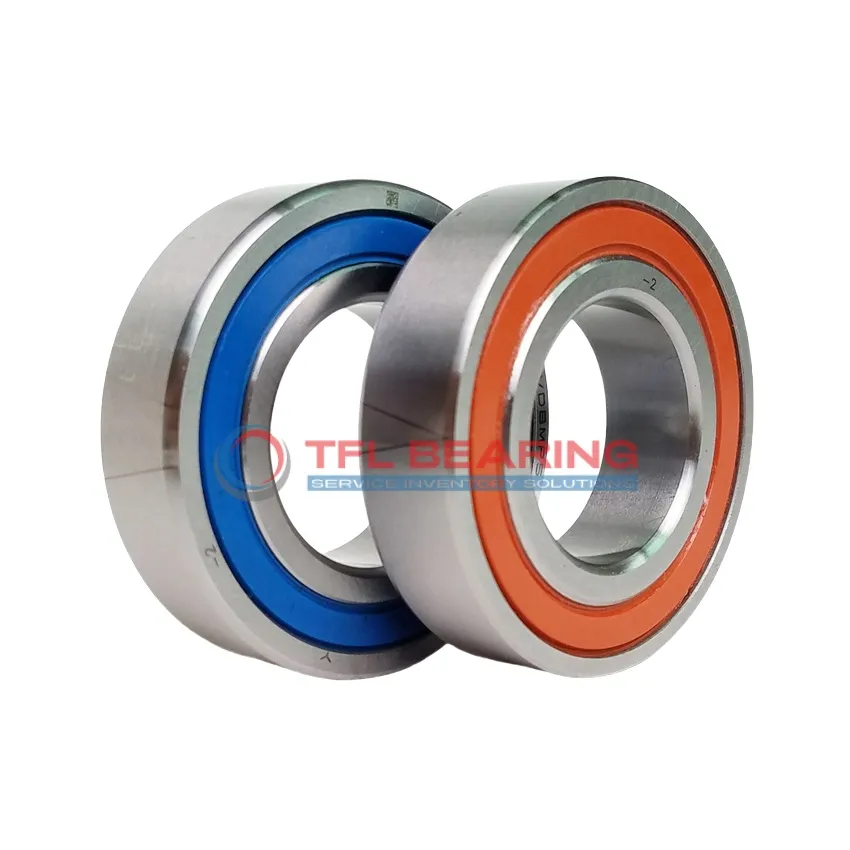

The 7309 BE-2RZP is a single-row angular contact ball bearing with a 45mm bore and 100mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 12578 lbf and operates smoothly at speeds up to 6700 RPM.
Its sealed design keeps lubrication in and contaminants out, while the nylon cage reduces friction for quieter performance. The 40° contact angle makes it ideal for combined radial and axial loads.
This bearing is interchangeable with SKF models, offering a reliable replacement option. Suitable for applications like pumps or electric motors where precise alignment is needed.
Weighing 0.85kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.
The P6 tolerance class ensures consistent performance in demanding conditions. Its design includes a 1.5mm chamfer for easier installation.
"*" indicates required fields
Performance Features of 7309 BE-2RZP Bearing
7309 BE-2RZP Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.
The sealed design of 7309 BE-2RZP Bearing protects against contaminants, extending its service life.
With a dynamic radial load capacity of 12578 lbf, it performs reliably under heavy loads.
7309 BE-2RZP Bearing’s nylon cage reduces friction and noise, making it suitable for precision machinery.
It operates smoothly at speeds up to 6,700 rpm while maintaining stability.
The P6 tolerance class ensures high precision, meeting ABEC-3 standards for consistent performance.
Its temperature range of -30° to 110°C allows for use in various environmental conditions.
Industrial Uses of 7309 BE-2RZP Bearing
7309 BE-2RZP Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The sealed construction keeps contaminants out, ensuring longer service life in dusty workshops.
In automotive applications, 7309 BE-2RZP Bearing fits well in wheel hubs and transmissions, thanks to its 40° contact angle for stability. The nylon cage reduces friction, making it quieter for passenger vehicles.
For robotics, 7309 BE-2RZP Bearing offers precise movement in robotic arms, with its P6 tolerance ensuring smooth operation. The lubricated design minimizes maintenance needs in automated production lines.
Where Is 7309 BE-2RZP Bearing Used?
You’ll find 7309 BE-2RZP Bearing in conveyor systems, where its chrome steel rings withstand heavy loads. The metric sizing makes it easy to replace in European machinery.
In medical imaging devices, 7309 BE-2RZP Bearing provides reliable performance due to its consistent torque. The temperature range suits both sterile labs and diagnostic equipment.
Built for Heavy-Duty Use: 7309 BE-2RZP Bearing
7309 BE-2RZP Bearing excels in industrial fans, handling high speeds with its balanced design. The sealed type protects against moisture in outdoor installations.
For 3D printers, 7309 BE-2RZP Bearing ensures accurate linear motion with minimal backlash. Its nylon cage dampens vibrations, improving print quality.
Light-Duty vs Heavy-Duty: Best Uses for 7309 BE-2RZP Bearing
In light-duty applications like office printers, 7309 BE-2RZP Bearing runs quietly with its lubricated setup. For heavy-duty pumps, it manages radial and axial stresses effortlessly.
The bearing’s 45 mm bore fits standard shafts in agricultural machinery. Its weight-to-load ratio makes it versatile for both mobile and stationary equipment.
