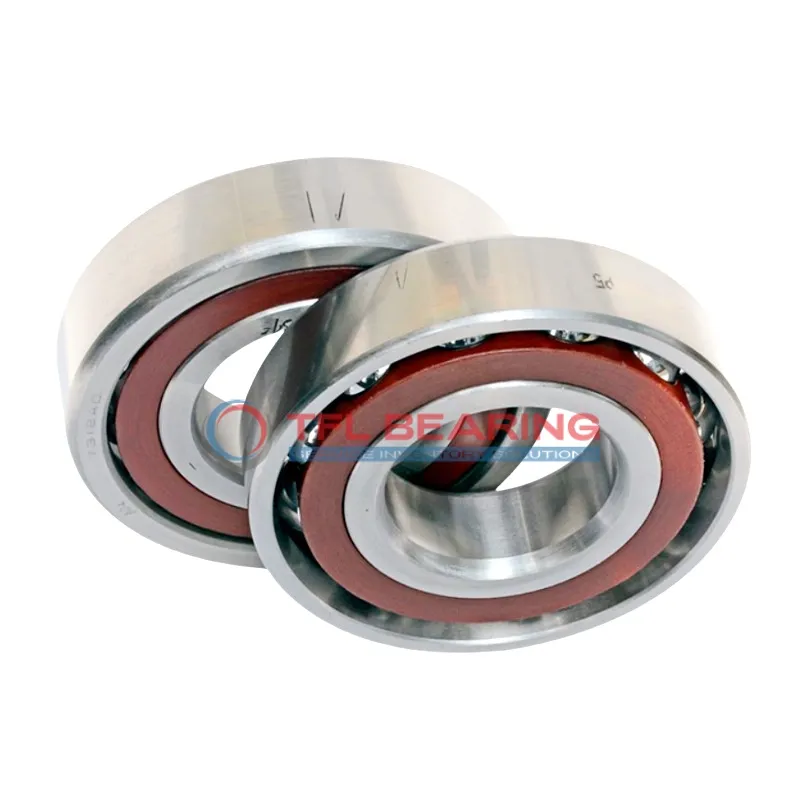

The 7308 BEGAP is a single-row angular contact ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 11250 lbf and operates smoothly at speeds up to 10000 RPM.
With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design and nylon cage ensure durability while allowing easy lubrication.
This bearing suits applications like pumps or gearboxes where precise angular contact is needed. It performs reliably in temperatures from -30°C to 110°C.
Weighing 0.62kg, it’s a robust choice for industrial use. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.
"*" indicates required fields
Performance Features of 7308 BEGAP Bearing
7308 BEGAP Bearing is designed with a 40° contact angle, optimising its ability to handle combined radial and axial loads.
The chrome steel construction ensures durability and resistance to wear in demanding applications.
Its dynamic radial load capacity of 11250 lbf makes it suitable for high-performance machinery.
The nylon cage reduces friction and noise, contributing to smoother operation.
With a maximum speed of 10,000 rpm, 7308 BEGAP Bearing maintains efficiency under high-speed conditions.
The P6 tolerance class ensures precision and reliability in various industrial settings.
The open design allows for easy lubrication, extending the bearing’s service life.
Its temperature range of -30° to 110°C ensures consistent performance in diverse environments.
Industrial Uses of 7308 BEGAP Bearing
The 7308 BEGAP Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its open design and nylon cage make it suitable for high-speed operations up to 10,000 rpm.
In automotive applications, 7308 BEGAP Bearing is ideal for gearboxes and wheel hubs, providing reliable performance under angular loads. The chrome steel construction ensures durability, even in demanding driving conditions.
For automation systems, 7308 BEGAP Bearing supports robotic arms and conveyor belts, offering smooth movement and low friction. Its P6 tolerance class guarantees precision in repetitive tasks.
Medical imaging devices benefit from 7308 BEGAP Bearing’s stable operation and low noise levels. The lubricated design ensures consistent performance in sensitive equipment.
In household appliances like washing machines, 7308 BEGAP Bearing reduces vibration and extends service life. Its metric sizing fits seamlessly into various European and Asian models.
