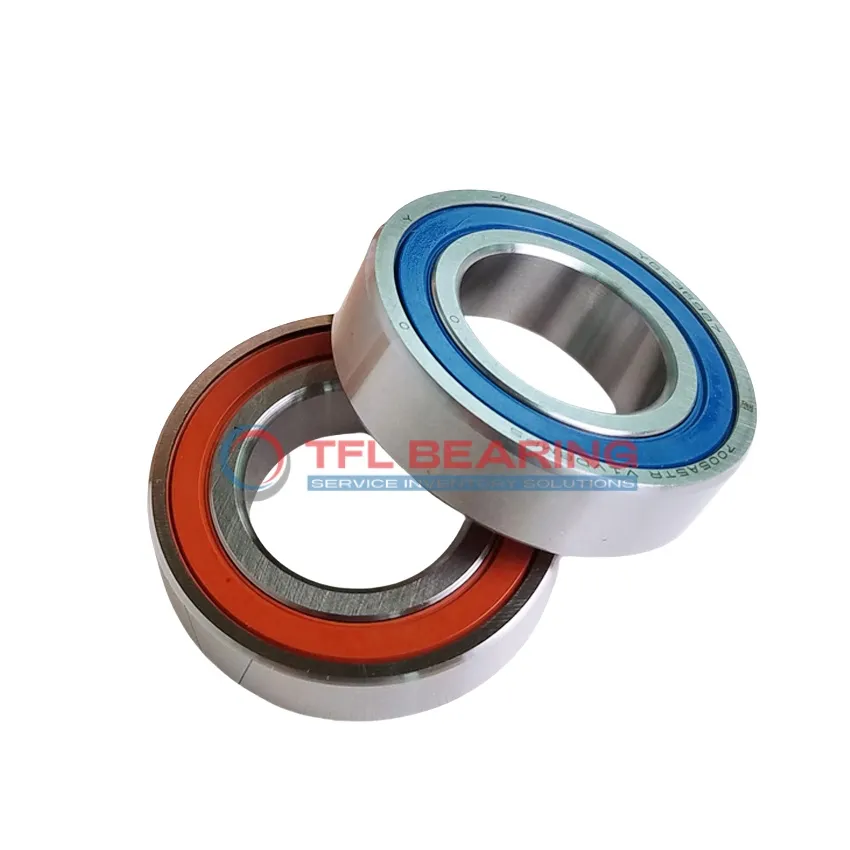

The 7308 BE-2RZP is a single-row angular contact ball bearing with a 40mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 10395 lbf and operates smoothly at speeds up to 7500 RPM.
Its sealed design keeps lubrication in and contaminants out, while the nylon cage reduces friction for quieter performance. The 40° contact angle makes it ideal for combined radial and axial loads.
This bearing is interchangeable with SKF models, offering a reliable replacement option. Suitable for applications like pumps or electric motors where precision and durability are key.
Weighing 0.62kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.
"*" indicates required fields
How Does 7308 BE-2RZP Bearing Reduce Friction?
7308 BE-2RZP Bearing features a 40° contact angle, optimising load distribution and reducing friction during operation.
The sealed design and nylon cage help maintain smooth movement, even at speeds up to 7,500 rpm.
Chrome steel rings and balls enhance durability, while the lubricated setup ensures consistent performance.
Its dynamic radial load capacity of 10,395 lbf makes it suitable for demanding angular contact applications.
The P6 tolerance class guarantees precision, ideal for machinery requiring reliable, low-friction performance.
With a temperature range of -30° to 110°C, it adapts well to various working conditions.
Industrial Uses of 7308 BE-2RZP Bearing
7308 BE-2RZP Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The sealed construction keeps contaminants out, ensuring longer service life in dusty workshops.
What Makes 7308 BE-2RZP Bearing a Preferred Choice?
In automotive applications like wheel hubs, 7308 BE-2RZP Bearing offers smooth performance thanks to its nylon cage and chrome steel components. The 40° contact angle provides stability during high-speed cornering.
Built for Heavy-Duty Use: 7308 BE-2RZP Bearing
This bearing excels in conveyor systems, where its P6 tolerance class ensures precise alignment under heavy loads. The lubricated design reduces friction, making it ideal for continuous operation.
Medical vs Industrial: Where 7308 BE-2RZP Bearing Excels
While suitable for industrial gearboxes, 7308 BE-2RZP Bearing also fits medical centrifuges due to its balanced load capacity. The temperature range allows reliable performance in sterilisation environments.
Perfect Fit for Automation: 7308 BE-2RZP Bearing
In robotic arms, 7308 BE-2RZP Bearing’s single-row design provides the rigidity needed for repeatable movements. The metric dimensions simplify integration with European automation equipment.
