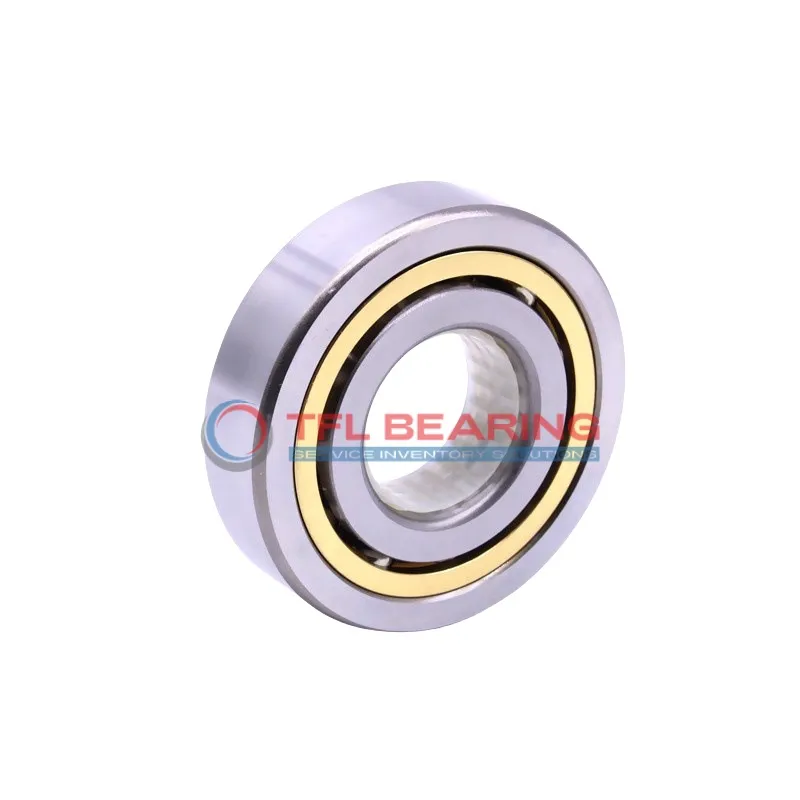

The 7307 BEGAM is a single-row angular contact ball bearing with a 35mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 9338 lbf and operates smoothly at speeds up to 14,000 RPM.
With a 40° contact angle, it efficiently handles combined radial and axial loads. The brass cage enhances durability, while the open design simplifies lubrication and maintenance.
This bearing suits temperatures from -30°C to 110°C and meets P6 (ABEC-3) precision standards. It’s interchangeable with SKF models, offering flexibility for replacements.
Ideal for machinery like pumps or gearboxes where angular contact is needed. Weighing 0.45kg, it balances strength and practicality for industrial use. Compliant with RoHS and REACH regulations.
"*" indicates required fields
How Does 7307 BEGAM Bearing Reduce Friction?
7307 BEGAM Bearing features a 40° contact angle, optimising load distribution and minimising friction.
The chrome steel construction ensures smooth operation even at high speeds up to 14,000 rpm.
Its brass cage maintains proper ball alignment, reducing wear and enhancing efficiency.
With a dynamic radial load capacity of 9338 lbf, it delivers reliable performance in angular contact applications.
Industrial Uses of 7307 BEGAM Bearing
The 7307 BEGAM Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its brass cage ensures smooth operation even at high speeds up to 14,000 rpm.
In automotive applications, 7307 BEGAM Bearing is ideal for wheel hubs and transmissions, thanks to its chrome steel construction and P6 precision class. The open design allows for easy lubrication, extending service life in demanding conditions.
For robotics, 7307 BEGAM Bearing provides reliable performance in articulated arms and joints, where precise movement is essential. Its metric sizing makes it compatible with a wide range of industrial automation systems.
In household appliances like washing machines, 7307 BEGAM Bearing offers durability and quiet operation. The temperature range of -30° to 110°C ensures it performs well in various environments.
