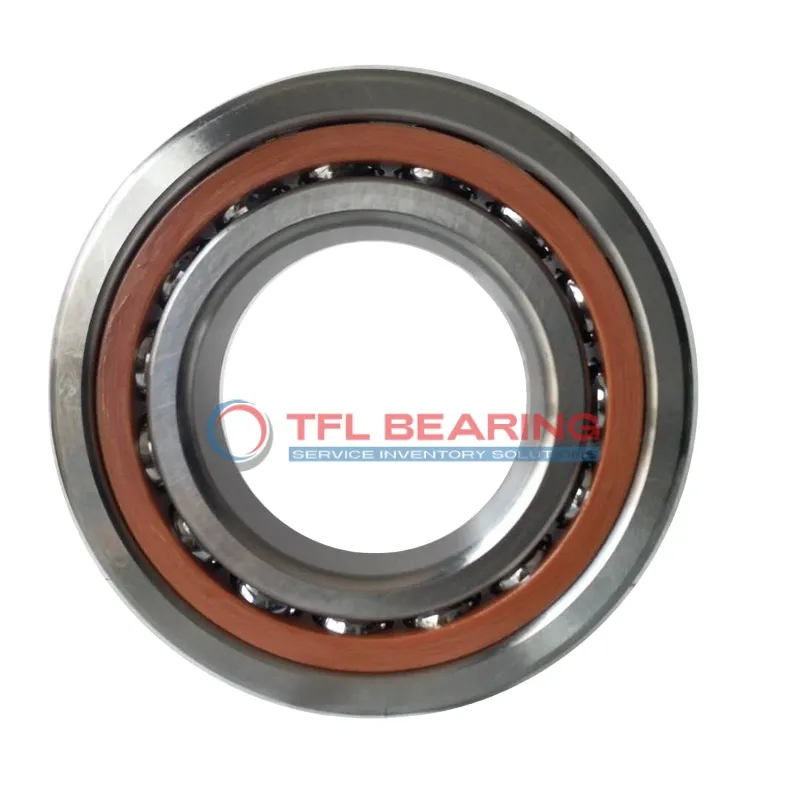

The 7304 BEGAP is a single-row angular contact ball bearing with a 20mm bore and 52mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and axial loads.
With a dynamic radial load capacity of 4275 lbf, it spins smoothly at speeds up to 18000 RPM. The nylon cage reduces friction and noise, while the open design allows easy lubrication.
Precision-machined to P6 tolerance, this bearing ensures reliable performance in temperatures from -30°C to 110°C. It’s interchangeable with SKF models for hassle-free replacements.
Ideal for gearboxes, pumps, or machinery requiring high-speed angular load support. Weighing just 0.14kg, it balances durability with lightweight convenience, meeting RoHS and REACH standards.
"*" indicates required fields
How Does 7304 BEGAP Bearing Reduce Friction?
7304 BEGAP Bearing features a 40° contact angle, optimising load distribution and reducing friction during operation.
Its chrome steel construction ensures durability while maintaining smooth performance under dynamic radial loads up to 4275 lbf.
The nylon cage minimises friction between balls, enhancing efficiency and reducing wear.
With a maximum speed of 18,000 rpm, it delivers reliable performance in high-speed applications.
Engineered for Precision: 7304 BEGAP Bearing
7304 BEGAP Bearing is designed with a single row angular contact, ideal for precise load handling.
The chrome steel rings and balls provide consistent performance, even under static radial loads of 2250 lbf.
Its P6 tolerance class ensures high precision, making it suitable for demanding applications.
The open seal type allows for easy lubrication, maintaining optimal performance over time.
Structural Advantages of 7304 BEGAP Bearing
7304 BEGAP Bearing’s large side face diameter of 32.9 mm enhances stability during operation.
The 1.1 mm chamfer dimension ensures smooth installation, reducing the risk of damage.
Its nylon cage not only reduces weight but also minimises friction, improving efficiency.
With a temperature range of -30° to 110°C, it performs reliably in various environments.
Industrial Uses of 7304 BEGAP Bearing
The 7304 BEGAP Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The open design and nylon cage make it suitable for high-speed operations up to 18,000 rpm.
Where Is 7304 BEGAP Bearing Used?
In automotive applications, 7304 BEGAP Bearing supports gearbox shafts and wheel hubs, thanks to its chrome steel construction and precise P6 tolerance. Its durability ensures reliable performance under varying loads and speeds.
Optimized for Performance: 7304 BEGAP Bearing
For automation systems, 7304 BEGAP Bearing is ideal for robotic arms and conveyor belts, where its angular contact design provides smooth motion control. The lubricated setup reduces friction, extending service life in continuous operations.
Automotive vs Aerospace: Applications of 7304 BEGAP Bearing
In automotive systems, 7304 BEGAP Bearing handles high thrust loads in transmissions, while in aerospace, its lightweight design and precision suit auxiliary equipment. The metric sizing ensures compatibility across industries.
Essential Roles of 7304 BEGAP Bearing
In consumer electronics like printers, 7304 BEGAP Bearing ensures quiet and efficient operation. The nylon cage minimises noise, making it a practical choice for household and office devices.
