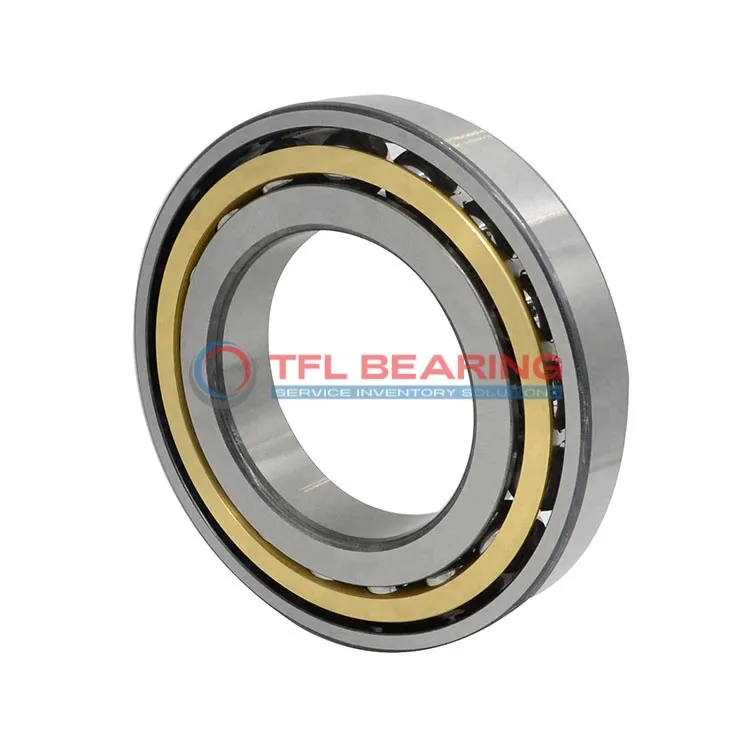

The 7236 BCAM is a single-row angular contact ball bearing with a 180mm bore and 320mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently handles combined radial and axial loads, supporting up to 65475 lbf dynamically.
The open design allows for easy lubrication, while the brass cage ensures smooth operation at speeds up to 2600 RPM. With a P6 tolerance class, it offers reliable precision for demanding applications.
This bearing suits industrial machinery like pumps or compressors where angular loads are common. It operates well in temperatures from -30°C to 110°C and is interchangeable with SKF models.
Weighing 18kg, it’s built for durability in heavy-duty settings. Compliant with RoHS and REACH standards, it’s a safe and practical choice for engineers and maintenance teams.
"*" indicates required fields
Why Choose 7236 BCAM Bearing for Precision Tasks?
7236 BCAM Bearing features a 40° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls ensure durability, while the brass cage maintains smooth operation.
With a dynamic radial load capacity of 65475 lbf, it performs reliably in demanding conditions.
The P6 tolerance class guarantees consistent accuracy for high-performance applications.
Designed for speeds up to 2,600 rpm, it balances efficiency and longevity.
Its open design allows easy lubrication, reducing maintenance needs.
Industrial Uses of 7236 BCAM Bearing
7236 BCAM Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design handles combined loads effectively. The brass cage ensures smooth operation even under high radial forces.
In automotive applications, 7236 BCAM Bearing supports wheel hubs and transmission systems, providing stability at moderate speeds. Its P6 tolerance class makes it suitable for precision components in European and Asian vehicles.
For automation equipment, 7236 BCAM Bearing’s 40° contact angle offers reliable performance in robotic arms and CNC machines. The chrome steel construction enhances durability in continuous operation scenarios.
Medical imaging devices benefit from 7236 BCAM Bearing’s consistent performance, thanks to its lubricated design and temperature stability. The open seal type allows for easy maintenance in clinical environments.
In consumer appliances like large fans, 7236 BCAM Bearing’s balanced load capacity ensures quiet and efficient operation. Its metric dimensions make it compatible with a variety of household and industrial fan models.
