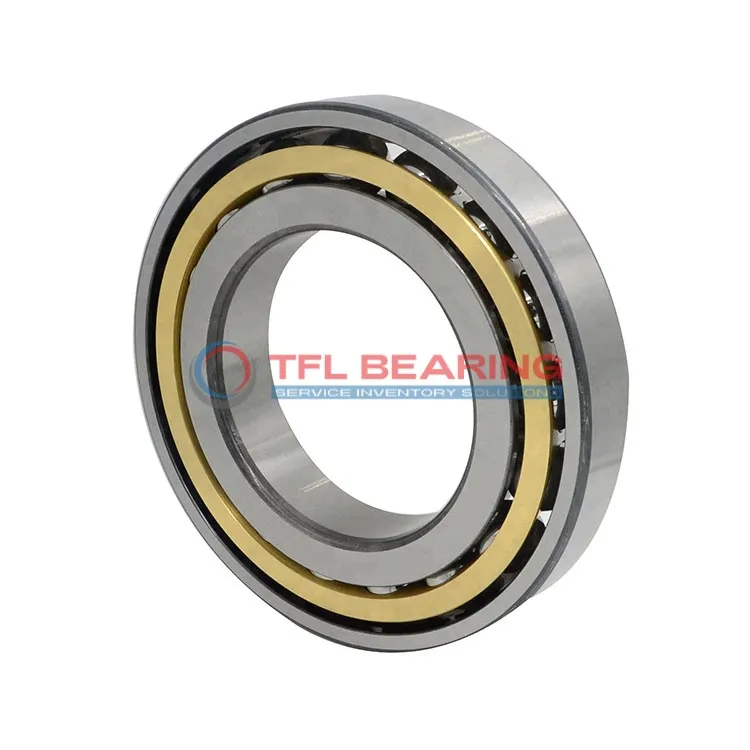

The 7232 BCBM is a single-row angular contact ball bearing with a 160mm bore and 290mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and thrust loads, supporting up to 57375 lbf dynamically.
The open design allows easy lubrication, while the brass cage enhances durability and smooth operation. It handles speeds up to 3000 RPM and operates reliably in temperatures from -30°C to 110°C.
With a P6 tolerance class, this bearing offers precise performance for demanding applications. It’s interchangeable with SKF models, making replacements straightforward.
Weighing 14kg, it’s suited for heavy-duty machinery like pumps or gearboxes where angular contact bearings are essential. Compliant with RoHS and REACH standards for safety and environmental care.
"*" indicates required fields
Performance Features of 7232 BCBM Bearing
7232 BCBM Bearing features a 40° contact angle, designed to handle both radial and axial loads efficiently.
Its chrome steel rings and balls provide durability, while the brass cage ensures smooth operation.
With a dynamic radial load capacity of 57,375 lbf, 7232 BCBM Bearing performs reliably under heavy loads.
The P6 tolerance class guarantees precision, making it suitable for high-accuracy applications.
7232 BCBM Bearing operates smoothly at speeds up to 3,000 rpm, balancing performance and longevity.
Its open design allows for easy lubrication, reducing maintenance requirements.
The temperature range of -30° to 110°C ensures 7232 BCBM Bearing performs well in various environments.
Its robust construction and materials make it a dependable choice for industrial applications.
Industrial Uses of 7232 BCBM Bearing
The 7232 BCBM Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design efficiently handles combined radial and axial loads.
Its brass cage and chrome steel construction ensure durability in demanding environments, making it a reliable choice for long-term use.
What Makes 7232 BCBM Bearing a Preferred Choice?
In automotive applications, 7232 BCBM Bearing is ideal for wheel hubs and transmissions, thanks to its high dynamic radial load capacity.
The P6 tolerance class ensures precise performance, which is crucial for maintaining vehicle safety and efficiency.
Built for Heavy-Duty Use: 7232 BCBM Bearing
For automation systems, 7232 BCBM Bearing supports robotic arms and conveyor belts, where its 40° contact angle provides excellent stability.
The lubricated design reduces friction, extending the bearing’s lifespan even in high-speed operations.
Medical vs Industrial: Where 7232 BCBM Bearing Excels
In medical imaging devices, 7232 BCBM Bearing offers smooth and quiet operation, essential for patient comfort and accurate diagnostics.
Meanwhile, in industrial settings, its robust construction handles heavy loads without compromising performance.
