Single Row Angular Contact Ball Bearings (General) 7230 BGAM
Single Row Angular Contact Ball Bearings (General) 7230 BGAM

Single Row Angular Contact Ball Bearings (General) 7230 BGAM

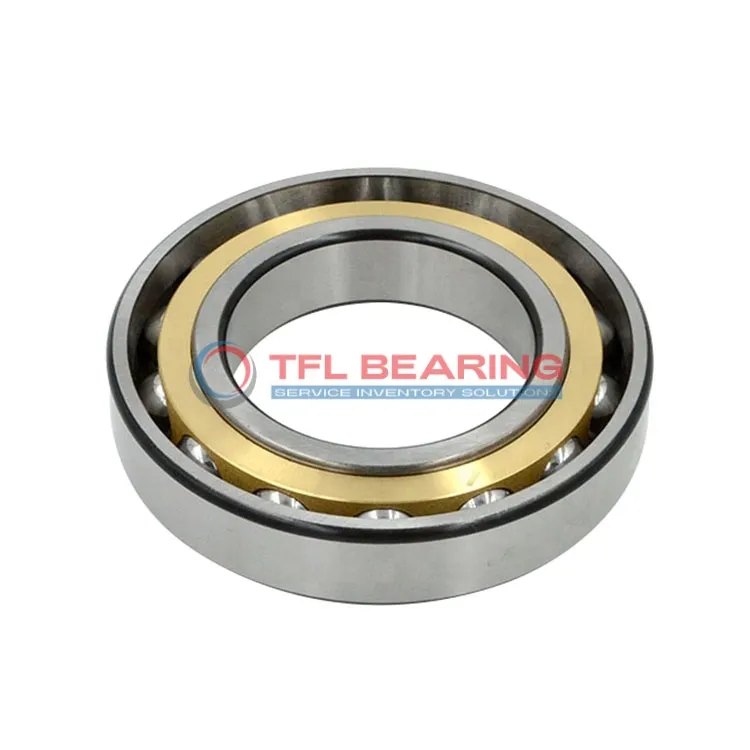

The 7230 BGAM is a single-row angular contact ball bearing with a 150mm bore and 270mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 48600 lbf and operates smoothly at speeds up to 3200 RPM.

With a 40° contact angle, it efficiently manages combined radial and axial loads. The brass cage enhances durability, while the open design allows for easy lubrication.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for machinery like pumps or gearboxes where angular contact is required.

Weighing 11.5kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for use in temperatures ranging from -30°C to 110°C.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7230 BGAM
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 150 mm
  • Bore Dia Tolerance -0.018mm to 0
  • Outer Dia 270 mm
  • Outer Dia Tolerance -0.025mm to 0
  • Width 45 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 197.2 mm
  • External Diameter On Inner Ring (Small Side Face) 175.6 mm
  • Internal Diameter On Outer Ring 225.95 mm
  • Chamfer Dimension 3 mm
  • Distance Pressure Point (a) 111 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 48600 lbf
  • Static Radial Load 54000 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 3200 rpm
  • Weight 11.5 kg
  • Price($) 418.46

Features

Performance Features of 7230 BGAM Bearing

7230 BGAM Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.

Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.

With a dynamic radial load capacity of 48,600 lbf, it performs reliably in demanding conditions.

The P6 tolerance class (ABEC-3) ensures precision, making it suitable for high-accuracy applications.

Application

Industrial Uses of 7230 BGAM Bearing
7230 BGAM Bearing is commonly used in heavy machinery like industrial pumps and compressors, where its angular contact design efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even under high stress.

In automotive applications, 7230 BGAM Bearing is found in wheel hubs and transmissions, providing reliable performance with its 40° contact angle. Its P6 tolerance class makes it suitable for precision automotive components.

For automation systems, 7230 BGAM Bearing supports robotic arms and CNC machines, offering stability during high-speed rotations. The chrome steel construction enhances durability in continuous operation.

Medical imaging devices benefit from 7230 BGAM Bearing’s precise movement and low friction. Its lubricated design ensures quiet operation, crucial for sensitive medical environments.

In consumer appliances like large fans, 7230 BGAM Bearing’s robust build ensures long-lasting performance. The metric dimensions make it easy to integrate into various European and Asian designs.
