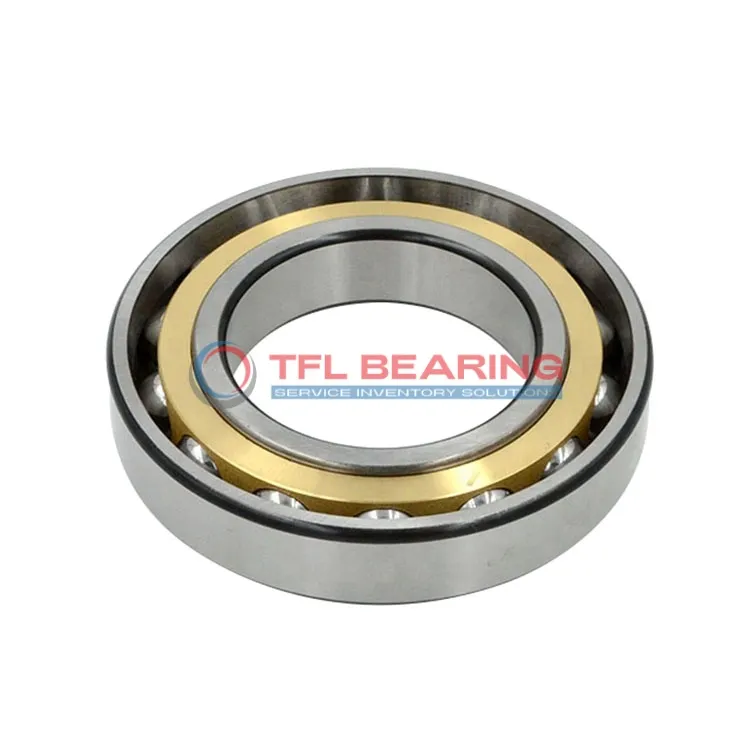

The 7224 BGAM is a single-row angular contact ball bearing with a 120mm bore and 215mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and thrust loads, supporting up to 37125 lbf dynamically.
Designed for smooth operation at speeds up to 4000 RPM, it features an open design for easy lubrication and a brass cage for durability. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
With a P6 tolerance class (ABEC-3), it offers precise performance for demanding applications. Its interchangeable design with SKF bearings makes it a practical choice for replacements.
Weighing 5.89kg, this bearing suits heavy-duty machinery like pumps or gearboxes where angular contact loads are common. Compliant with RoHS and REACH standards, it ensures safe and eco-friendly use.
"*" indicates required fields
Why Choose 7224 BGAM Bearing for Precision Tasks?
7224 BGAM Bearing features a 40° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.
The brass cage maintains ball alignment, reducing friction and enhancing performance.
With a maximum speed of 4,000 rpm, it offers reliable operation in high-speed environments.
How Is 7224 BGAM Bearing Engineered for Reliability?
7224 BGAM Bearing is built with chrome steel rings and balls, providing excellent strength and longevity.
Its dynamic radial load capacity of 37,125 lbf ensures consistent performance under heavy loads.
The open design allows for easy lubrication, reducing maintenance needs.
Operating within a temperature range of -30° to 110°C, it adapts to various working conditions.
Performance Features of 7224 BGAM Bearing
7224 BGAM Bearing’s single-row design and brass cage ensure smooth and quiet operation.
Its P6 tolerance class (ABEC-3) guarantees high precision for critical applications.
The bearing’s chamfer dimension of 2.1 mm facilitates easy installation.
Weighing 5.89 kg, it balances robustness with manageable handling.
What Makes 7224 BGAM Bearing Suitable for High-Temperature Applications?
7224 BGAM Bearing operates reliably in temperatures ranging from -30° to 110°C.
Its chrome steel components resist thermal deformation, maintaining performance under heat.
The brass cage further enhances durability in high-temperature environments.
Lubrication options ensure smooth operation even in demanding conditions.
Structural Advantages of 7224 BGAM Bearing
7224 BGAM Bearing’s large bore diameter of 120 mm accommodates substantial shaft sizes.
The precise width tolerance of -0.05mm to 0 ensures a perfect fit in assemblies.
Its external diameter on the inner ring varies for optimal load distribution.
The bearing’s design minimizes stress concentrations, extending service life.
Key Fields for 7224 BGAM Bearing
7224 BGAM Bearing is commonly used in industrial machinery, such as pumps and compressors, where its angular contact design efficiently handles combined radial and axial loads. The brass cage adds durability, making it suitable for high-load environments.
In automotive applications, 7224 BGAM Bearing supports components like wheel hubs and transmissions, ensuring smooth performance under varying loads. Its P6 tolerance class provides the precision needed for reliable operation in vehicles.
For automation systems, 7224 BGAM Bearing is a solid choice for robotic arms and CNC machines, thanks to its stable load-bearing capacity. The open seal type allows for easy lubrication, extending its service life in continuous-use scenarios.
Medical equipment like MRI machines benefits from 7224 BGAM Bearing’s chrome steel construction, which offers consistent performance in critical applications. The 40° contact angle ensures precise movement, essential for diagnostic accuracy.
In household appliances, 7224 BGAM Bearing can be found in washing machines and air conditioners, where its robust design handles everyday wear. The metric sizing makes it compatible with a wide range of consumer products.
