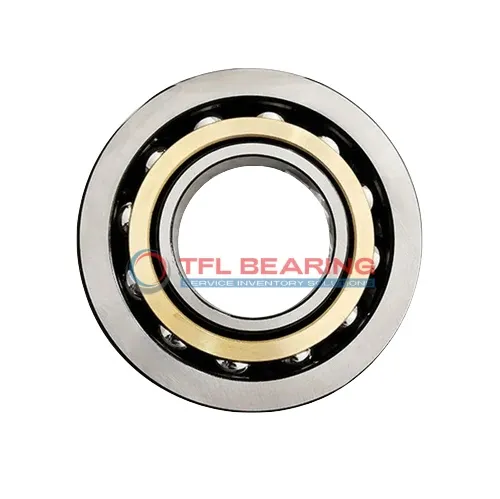

The 7220 BEGAM is a single-row angular contact ball bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 32175 lbf and operates smoothly at speeds up to 5600 RPM, thanks to its 40° contact angle.
Its open design simplifies lubrication, while the brass cage enhances durability and reduces friction. The bearing performs reliably in temperatures ranging from -30°C to 110°C.
This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for machinery requiring precise angular contact, such as pumps or gear systems.
Weighing 3.3kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it ensures safe and eco-friendly use. The P6 tolerance class (ABEC-3) guarantees consistent performance in demanding applications.
"*" indicates required fields
Performance Features of 7220 BEGAM Bearing
7220 BEGAM Bearing is crafted with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strong resistance to wear, ensuring long-lasting performance.
The brass cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a dynamic radial load capacity of 32,175 lbf, it excels in demanding applications.
7220 BEGAM Bearing operates efficiently at speeds up to 5,600 rpm, balancing speed and durability.
Its P6 tolerance class ensures precise performance, making it suitable for high-accuracy tasks.
Designed for a temperature range of -30° to 110°C, it performs reliably in varied conditions.
The open seal type allows for easy lubrication, reducing maintenance needs.
Industrial Uses of 7220 BEGAM Bearing
7220 BEGAM Bearing is commonly used in machine tools, where its angular contact design handles combined radial and axial loads efficiently. The brass cage ensures smooth operation even at moderate speeds, making it suitable for spindle applications.
What Makes 7220 BEGAM Bearing a Preferred Choice?
In automotive transmissions, 7220 BEGAM Bearing provides reliable performance due to its high dynamic load capacity. The 40° contact angle helps manage thrust loads in gearboxes, ensuring longevity under demanding conditions.
Built for Heavy-Duty Use: 7220 BEGAM Bearing
For conveyor systems in mining, 7220 BEGAM Bearing’s chrome steel construction withstands harsh environments. Its P6 tolerance class offers precision, reducing downtime in continuous operation scenarios.
Automotive vs Aerospace: Applications of 7220 BEGAM Bearing
In automotive wheel hubs, 7220 BEGAM Bearing supports high radial loads, while in aerospace actuators, its precision ensures accurate control. The metric sizing fits seamlessly into both industries’ standard designs.
Perfect Fit for Automation: 7220 BEGAM Bearing
7220 BEGAM Bearing is ideal for robotic arms, where its angular contact design accommodates multi-directional forces. The lubricated setup minimises maintenance, keeping automated lines running smoothly.
