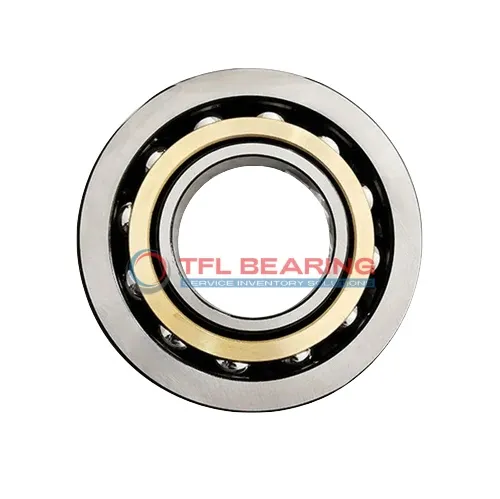

The 7220 BECBY is a single-row angular contact ball bearing with a 100mm bore and 180mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently manages combined radial and axial loads, supporting up to 32175 lbf dynamically.
The open design allows for straightforward lubrication, while the brass cage enhances durability and smooth operation. It handles speeds up to 4500 RPM and performs reliably in temperatures from -30°C to 110°C.
With a P6 tolerance class, this bearing offers precise performance for demanding applications. It’s interchangeable with SKF models, making it a practical choice for replacements. Ideal for machinery like pumps or gearboxes where angular contact loads are common.
Weighing 3.3kg, it’s robust yet manageable for its size, complying with RoHS and REACH standards for safe use.
"*" indicates required fields
Why Choose 7220 BECBY Bearing for Precision Tasks?
7220 BECBY Bearing features a 40° contact angle, optimising load distribution for angular contact applications.
Its chrome steel rings and balls ensure high durability and resistance to wear under dynamic radial loads up to 32175 lbf.
The brass cage maintains ball alignment, enhancing smooth operation even at speeds up to 4,500 rpm.
With a P6 tolerance class, it delivers reliable precision for demanding industrial tasks.
How Is 7220 BECBY Bearing Engineered for Reliability?
7220 BECBY Bearing is constructed with chrome steel components, providing strength and longevity.
Its single-row design and open seal type allow for efficient lubrication, reducing friction and heat buildup.
The bearing operates smoothly in temperatures ranging from -30° to 110°C, ensuring consistent performance.
With a static radial load capacity of 30150 lbf, it handles heavy-duty applications with ease.
Performance Features of 7220 BECBY Bearing
7220 BECBY Bearing’s brass cage design minimises noise, making it suitable for precision machinery.
The chamfer dimension of 2.1 mm facilitates easier installation and alignment during setup.
Its metric sizing (100 mm×180 mm×34 mm) ensures compatibility with standard industrial equipment.
Compliant with ROHS and REACH standards, it meets stringent environmental and safety requirements.
Industrial Uses of 7220 BECBY Bearing
7220 BECBY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. The brass cage ensures smooth operation even at moderate speeds, making it suitable for spindle applications.
Where Is 7220 BECBY Bearing Used?
In automotive transmissions, 7220 BECBY Bearing provides reliable support for gear shafts, thanks to its chrome steel construction. Its P6 tolerance class ensures precise alignment, which is crucial for reducing vibration and noise.
Built for Heavy-Duty Use: 7220 BECBY Bearing
7220 BECBY Bearing excels in conveyor systems, where its high dynamic radial load capacity keeps operations running smoothly. The open design allows for easy relubrication, extending service life in dusty environments.
Automotive vs Aerospace: Applications of 7220 BECBY Bearing
In automotive wheel hubs, 7220 BECBY Bearing offers durability under angular loads, while in aerospace actuators, its precision tolerances ensure reliable performance. The metric sizing makes it versatile for various international standards.
Perfect Fit for Automation: 7220 BECBY Bearing
7220 BECBY Bearing is ideal for robotic arms, where its single-row design saves space without compromising load capacity. The lubricated setup reduces maintenance needs, making it a practical choice for continuous operation.
