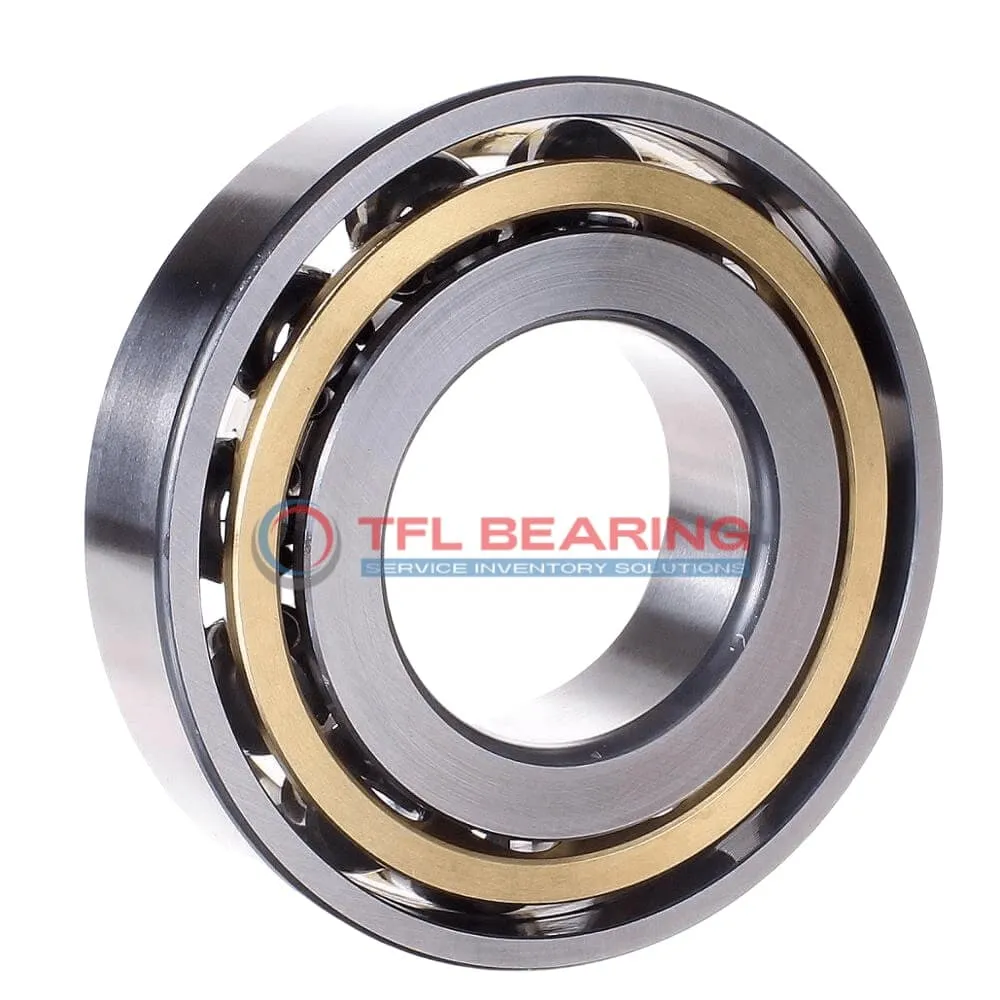

The 7218 BEGAM is a single-row angular contact ball bearing with a 90mm bore and 160mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 24300 lbf and operates smoothly at speeds reaching 6300 RPM.
With a 40° contact angle, it efficiently handles combined radial and axial loads. The brass cage enhances durability, while the open design simplifies lubrication and maintenance.
This bearing suits applications like pumps or gearboxes where precise angular contact is needed. It’s compatible with SKF models, making replacements straightforward.
Weighing 2.3kg, it’s robust yet manageable for industrial use. Compliant with RoHS and REACH standards, it’s safe for various environments.
"*" indicates required fields
Performance Features of 7218 BEGAM Bearing
7218 BEGAM Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel construction ensures durability and resistance to wear in demanding applications.
The brass cage maintains ball alignment, reducing friction and enhancing operational smoothness.
With a dynamic radial load capacity of 24,300 lbf, it performs reliably under heavy loads.
Designed for high-speed applications, 7218 BEGAM Bearing supports speeds up to 6,300 rpm.
Its open seal type allows for easy lubrication, ensuring consistent performance over time.
The bearing operates efficiently within a temperature range of -30° to 110°C.
Its P6 tolerance class (ABEC-3) ensures precision and reliability in various industrial uses.
Industrial Uses of 7218 BEGAM Bearing
The 7218 BEGAM Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads.
Its brass cage and chrome steel construction ensure durability in high-speed operations, making it suitable for industrial gearboxes and pumps.
Where Is 7218 BEGAM Bearing Used?
You’ll often find 7218 BEGAM Bearing in automotive transmissions, where its precise P6 tolerance class supports smooth gear shifting.
The open design allows for easy lubrication, extending its lifespan in demanding driving conditions.
Built for Heavy-Duty Use: 7218 BEGAM Bearing
This bearing excels in conveyor systems, handling heavy loads with its robust chrome steel rings.
The 30 mm width provides stability, making it a reliable choice for material handling equipment.
Automotive vs Aerospace: Applications of 7218 BEGAM Bearing
In automotive applications, 7218 BEGAM Bearing supports wheel hubs and drivetrains with its high dynamic load capacity.
For aerospace, its precision and temperature tolerance make it suitable for auxiliary aircraft systems.
Perfect Fit for Automation: 7218 BEGAM Bearing
The 7218 BEGAM Bearing is ideal for robotic arms, where its angular contact design ensures precise movement.
Its brass cage reduces friction, enhancing performance in automated assembly lines.
