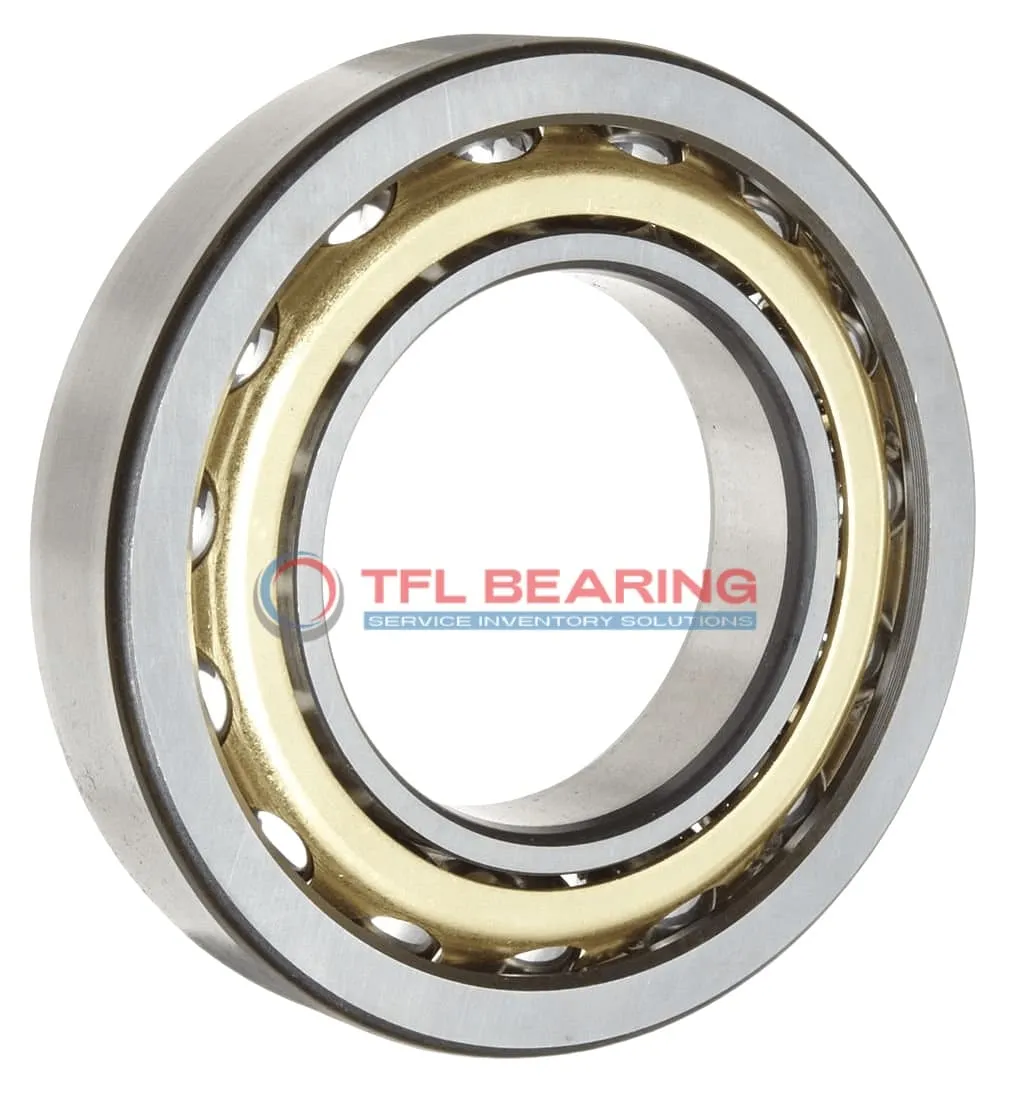

The 7217 BECBY is a single-row angular contact ball bearing with an 85mm bore and 150mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 22950 lbf and operates smoothly at speeds reaching 5300 RPM.
With a 40° contact angle, it efficiently handles combined radial and axial loads. The brass cage enhances durability, while the open design simplifies lubrication and maintenance.
This bearing suits temperatures from -30°C to 110°C and meets P6 (ABEC-3) precision standards. It’s interchangeable with SKF models, offering a reliable replacement option.
Ideal for machinery like pumps or gearboxes where angular contact is needed. Weighing 1.85kg, it balances strength and practicality for industrial use. Compliant with RoHS and REACH regulations.
"*" indicates required fields
Performance Features of 7217 BECBY Bearing
7217 BECBY Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls provide strength, while the brass cage ensures smooth operation.
With a dynamic radial load capacity of 22,950 lbf, it performs reliably under heavy loads.
The P6 tolerance class ensures precision, making it suitable for high-accuracy applications.
Designed for speeds up to 5,300 rpm, it balances performance and durability.
The open seal type allows for easy lubrication, maintaining efficiency over time.
Key Fields for 7217 BECBY Bearing
7217 BECBY Bearing is commonly used in industrial machinery, especially in applications where angular contact is needed, such as pumps and gearboxes. Its brass cage and chrome steel construction ensure durability and smooth operation under radial loads.
In automotive systems, 7217 BECBY Bearing is ideal for wheel hubs and transmissions, where its 40° contact angle helps manage combined loads effectively. The P6 tolerance class ensures reliable performance in high-precision environments.
For automation equipment, 7217 BECBY Bearing supports robotic arms and CNC machines, thanks to its ability to handle both radial and axial forces. The open design allows for easy lubrication, extending service life in demanding conditions.
Medical devices like centrifuges benefit from 7217 BECBY Bearing’s precision and low friction. The chrome steel rings and brass cage provide stability and resistance to wear, crucial for consistent operation.
In household appliances, 7217 BECBY Bearing can be found in washing machines and air conditioners, where its balanced load capacity ensures quiet and efficient performance. The metric sizing makes it compatible with a variety of consumer products.
