Single Row Angular Contact Ball Bearings (General) 7217 BECBJ
Single Row Angular Contact Ball Bearings (General) 7217 BECBJ

Single Row Angular Contact Ball Bearings (General) 7217 BECBJ

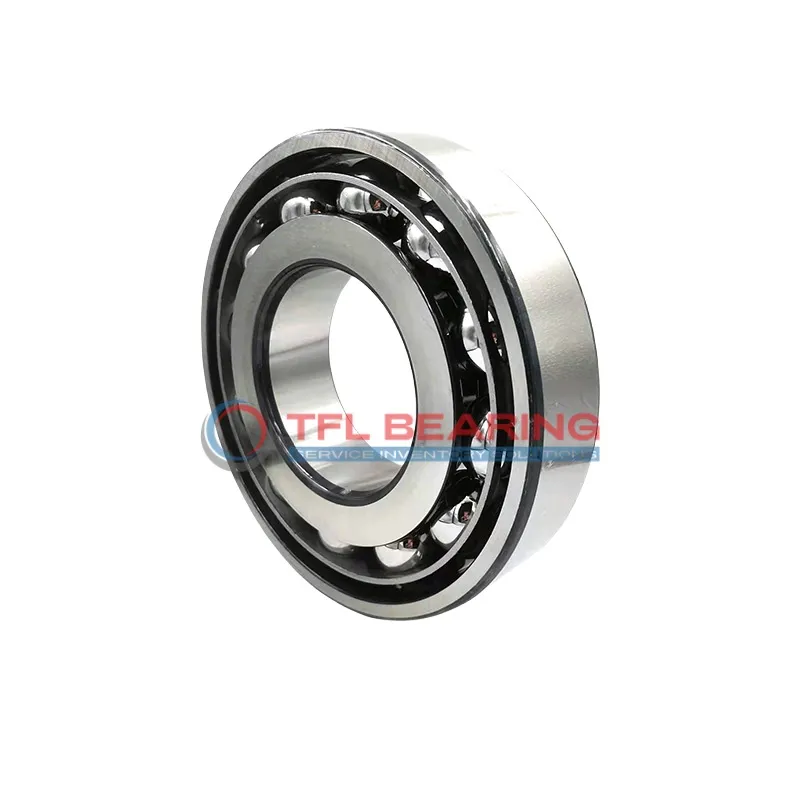

The 7217 BECBJ is a single-row angular contact ball bearing with an 85mm bore and 150mm outer diameter, designed for angular loads. Its 40° contact angle helps manage combined radial and thrust loads efficiently.

Made from chrome steel with a stainless steel cage, it handles dynamic radial loads up to 22950 lbf and spins smoothly at 5300 RPM. The open design allows easy lubrication and maintenance.

With a P6 tolerance class, it offers precise performance for demanding applications. The bearing operates in temperatures from -30°C to 110°C, making it versatile for various environments.

Ideal for machinery like pumps or gearboxes where angular loads are common. Weighing 1.85kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7217 BECBJ
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 150 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 28 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 110.1 mm
  • External Diameter On Inner Ring (Small Side Face) 97.02 mm
  • Internal Diameter On Outer Ring 126.7 mm
  • Chamfer Dimension 2 mm
  • Distance Pressure Point (a) 63 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 22950 lbf
  • Static Radial Load 20250 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 1.85 kg
  • Price($) 51.65

Features

How Is 7217 BECBJ Bearing Engineered for Reliability?

7217 BECBJ Bearing features a 40° contact angle, optimised for handling combined radial and axial loads efficiently.
Its chrome steel rings and balls ensure durability, while the stainless steel cage maintains precise ball alignment.

With a dynamic radial load capacity of 22,950 lbf, 7217 BECBJ Bearing performs reliably under heavy loads.
The P6 tolerance class (ABEC-3) guarantees consistent precision in demanding applications.

Designed for speeds up to 5,300 rpm, 7217 BECBJ Bearing balances performance and longevity.
Its open design simplifies lubrication, ensuring smooth operation in various conditions.

Application

Industrial Uses of 7217 BECBJ Bearing
The 7217 BECBJ Bearing is commonly used in industrial machinery like pumps and compressors, where its angular contact design handles combined radial and axial loads efficiently.
Its chrome steel construction ensures durability in demanding environments, while the open seal allows for easy lubrication and maintenance.

Where Is 7217 BECBJ Bearing Used?
You’ll often find 7217 BECBJ Bearing in automotive applications such as wheel hubs and transmissions, where its 40° contact angle provides stable performance.
The P6 tolerance class makes it suitable for precision tasks, ensuring reliable operation even at higher speeds.

Built for Heavy-Duty Use: 7217 BECBJ Bearing
7217 BECBJ Bearing excels in heavy machinery like construction equipment, thanks to its high dynamic radial load capacity of 22950 lbf.
The stainless steel cage adds extra resistance to wear, making it a dependable choice for long-term use.

Automotive vs Aerospace: Applications of 7217 BECBJ Bearing
In automotive systems, 7217 BECBJ Bearing supports components like gearboxes, while in aerospace, it’s used in auxiliary systems due to its precision and reliability.
The metric sizing and ABEC-3 tolerance make it versatile across different industries.

Perfect Fit for Automation: 7217 BECBJ Bearing
7217 BECBJ Bearing is ideal for robotic arms and automated production lines, where its angular contact design ensures smooth movement.
The lubricated build reduces friction, enhancing performance in high-speed operations.
