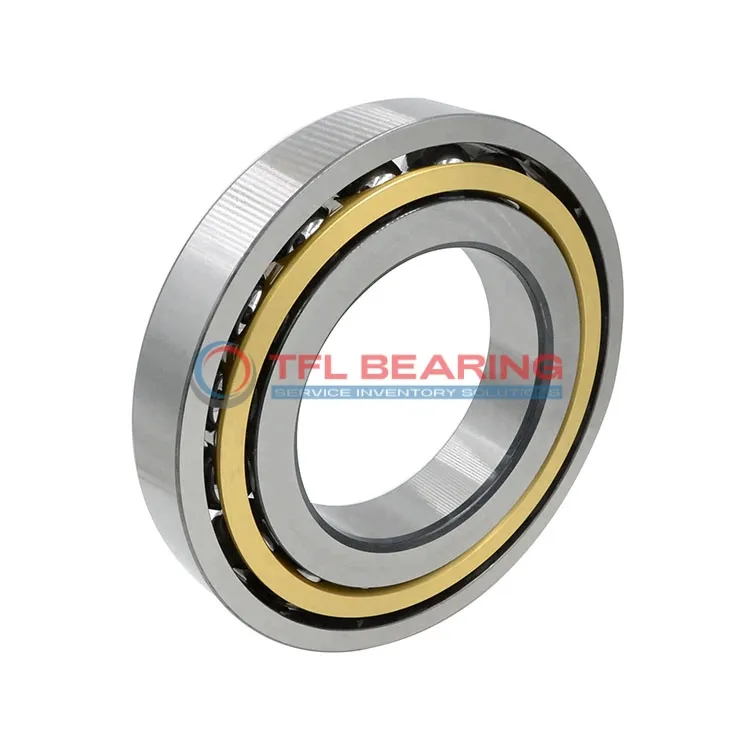

The 7215 BEGAY is a single-row angular contact ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 16538 lbf and operates smoothly at speeds up to 6300 RPM.
With a 40° contact angle, it efficiently handles combined loads, while the brass cage ensures durability and quiet performance. Its open design allows for easy lubrication and maintenance.
This bearing suits applications like pumps or gearboxes where angular loads are present. It’s compatible with SKF models, making replacements straightforward.
Weighing 1.2kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.
"*" indicates required fields
Performance Features of 7215 BEGAY Bearing
7215 BEGAY Bearing features a 40° contact angle, optimised for handling combined radial and axial loads efficiently.
Its chrome steel rings and balls provide durability, while the brass cage ensures smooth operation at high speeds.
With a dynamic radial load capacity of 16538 lbf, 7215 BEGAY Bearing is suitable for demanding applications.
The P6 tolerance class (ABEC-3) ensures consistent precision in performance.
Designed for a temperature range of -30° to 110°C, 7215 BEGAY Bearing performs reliably in various conditions.
Its open design allows for easy lubrication, enhancing longevity and reducing maintenance needs.
The 7215 BEGAY Bearing’s dimensions (75 mm×130 mm×25 mm) make it a compact yet robust solution.
Its maximum speed of 6,300 rpm balances efficiency with durability.
Industrial Uses of 7215 BEGAY Bearing
The 7215 BEGAY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its open design and brass cage ensure smooth operation in high-speed scenarios.
In automotive applications, 7215 BEGAY Bearing is ideal for wheel hubs and transmissions, thanks to its robust chrome steel construction. The metric sizing makes it a versatile choice for various vehicle models.
For automation systems, 7215 BEGAY Bearing supports robotic arms and conveyor belts, providing reliable performance under continuous use. The P6 tolerance class ensures precision in demanding environments.
Medical imaging devices benefit from 7215 BEGAY Bearing’s consistent performance and low maintenance requirements. Its temperature range suits both clinical and laboratory settings.
In household appliances like washing machines, 7215 BEGAY Bearing offers durability and quiet operation. The lubricated design reduces wear over time, extending the product’s lifespan.
