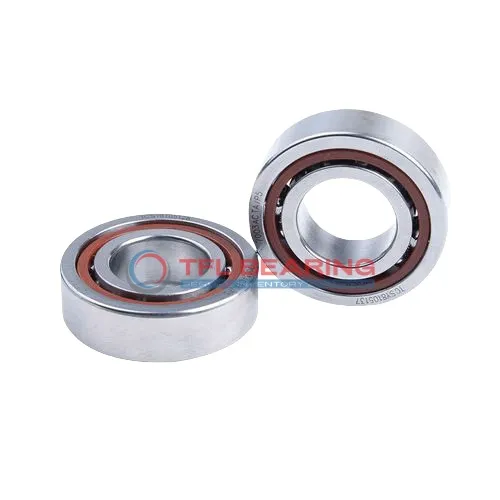

Single Row Angular Contact Ball Bearings (General) 7214 BEP
Single Row Angular Contact Ball Bearings (General) 7214 BEP

Single Row Angular Contact Ball Bearings (General) 7214 BEP

The 7214 BEP is a single-row angular contact ball bearing with a 70mm bore and 125mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 15210 lbf and operates smoothly at speeds up to 6000 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design and nylon cage ensure low friction and easy maintenance.

This bearing suits applications like pumps or gearboxes where precise angular contact is needed. It performs reliably in temperatures from -30°C to 110°C.

Weighing 1.1kg, it meets P6 tolerance standards and is interchangeable with SKF models. RoHS and REACH compliant for safe use.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7214 BEP
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 24 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 91.5 mm
  • External Diameter On Inner Ring (Small Side Face) 80.25 mm
  • Internal Diameter On Outer Ring 104.75 mm
  • Chamfer Dimension 1.5 mm
  • Distance Pressure Point (a) 53 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Nylon
  • Dynamic Radial Load 15210 lbf
  • Static Radial Load 12600 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6000 rpm
  • Weight 1.1 kg
  • Price($) 62.29

Features

Performance Features of 7214 BEP Bearing

7214 BEP Bearing features a 40° contact angle, optimised for handling combined radial and axial loads efficiently.
The chrome steel construction ensures durability and resistance to wear in demanding applications.

With a dynamic radial load capacity of 15210 lbf, 7214 BEP Bearing performs reliably under heavy loads.
Its nylon cage reduces friction and noise, making it suitable for precision machinery.

Designed for high-speed applications, 7214 BEP Bearing can operate at up to 6,000 rpm.
The open seal type allows for easy lubrication, ensuring smooth performance over time.

7214 BEP Bearing maintains stable operation within a temperature range of -30° to 110°C.
Its P6 tolerance class ensures consistent precision in various industrial settings.

Application

Industrial Uses of 7214 BEP Bearing
You’ll often spot 7214 BEP Bearing in machine tools where its 40° contact angle handles combined radial and axial loads effortlessly. The open design simplifies relubrication, keeping production lines running smoothly.

In automotive applications, 7214 BEP Bearing works well in wheel hubs and transmissions due to its precise P6 tolerance class. The chrome steel construction stands up to daily wear while maintaining performance.

For automation equipment, 7214 BEP Bearing’s nylon cage reduces friction in robotic arms and conveyor systems. Its balanced load distribution makes it reliable for continuous operation in smart factories.

Medical imaging devices benefit from 7214 BEP Bearing’s stable rotation at moderate speeds. The lubricated design ensures quiet operation crucial for sensitive diagnostic environments.

Around the house, 7214 BEP Bearing can be found in heavy-duty appliances like washing machines. Its metric sizing makes replacement straightforward for European appliance models.
