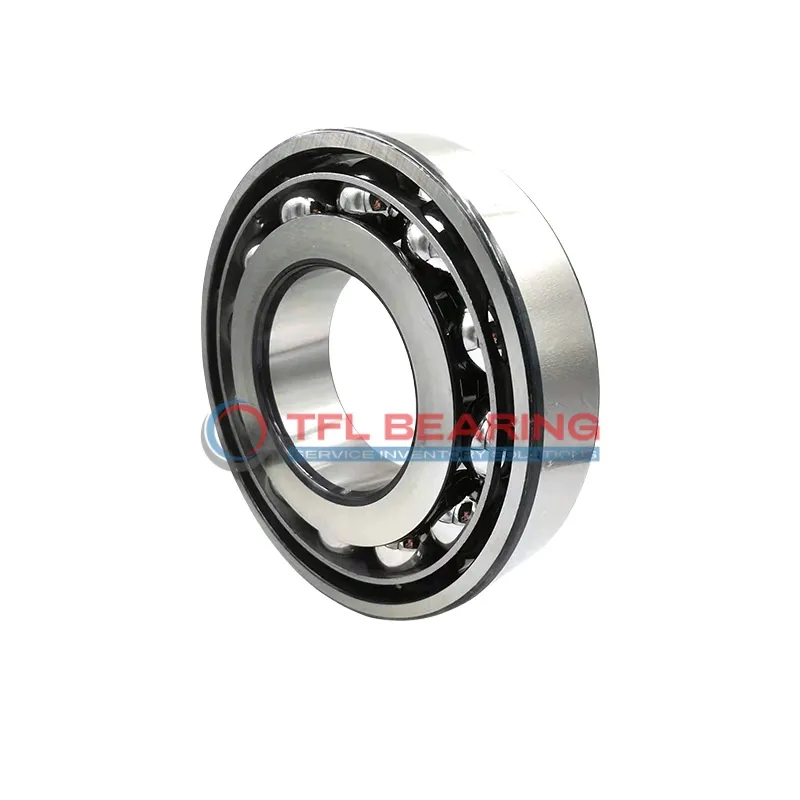

Single Row Angular Contact Ball Bearings (General) 7214 BECBJ
Single Row Angular Contact Ball Bearings (General) 7214 BECBJ

Single Row Angular Contact Ball Bearings (General) 7214 BECBJ

The 7214 BECBJ is a single-row angular contact ball bearing with a 70mm bore and 125mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 16200 lbf and operates smoothly at speeds up to 6300 RPM.

With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design allows for easy lubrication, while the stainless steel cage ensures durability.

This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact is needed.

Weighing 1.1kg, it’s robust yet manageable in size. Compliant with RoHS and REACH standards, it’s safe for various industrial uses.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7214 BECBJ
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 70 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 125 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 24 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 91.5 mm
  • External Diameter On Inner Ring (Small Side Face) 80.25 mm
  • Internal Diameter On Outer Ring 104.75 mm
  • Chamfer Dimension 1.5 mm
  • Distance Pressure Point (a) 53 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 16200 lbf
  • Static Radial Load 13500 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6300 rpm
  • Weight 1.1 kg
  • Price($) 47.33

Features

How Does 7214 BECBJ Bearing Support Angular Loads?

7214 BECBJ Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.

Its chrome steel construction ensures strength and durability under dynamic radial loads up to 16,200 lbf.

The stainless steel cage maintains ball alignment, reducing friction and enhancing performance.

With a maximum speed of 6,300 rpm, it delivers reliable operation in various applications.

Application

Industrial Uses of 7214 BECBJ Bearing
The 7214 BECBJ Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its open design and stainless steel cage make it suitable for high-speed operations in industrial settings.

Where Is 7214 BECBJ Bearing Used?
You’ll often find 7214 BECBJ Bearing in automotive applications like wheel hubs and transmissions, thanks to its robust chrome steel construction. The P6 tolerance ensures reliable performance even under demanding driving conditions.

Built for Heavy-Duty Use: 7214 BECBJ Bearing
In conveyor systems, 7214 BECBJ Bearing excels due to its ability to manage heavy loads and maintain alignment. The lubricated design reduces friction, extending service life in continuous operation environments.

Automotive vs Aerospace: Applications of 7214 BECBJ Bearing
While 7214 BECBJ Bearing is popular in car transmissions, it also suits aerospace actuators where precision is key. The metric sizing and ABEC-3 tolerance make it versatile across industries.

Perfect Fit for Automation: 7214 BECBJ Bearing
Robotic arms benefit from 7214 BECBJ Bearing’s smooth angular contact performance, ensuring precise movement. Its temperature range of -30° to 110°C accommodates various operating conditions.
