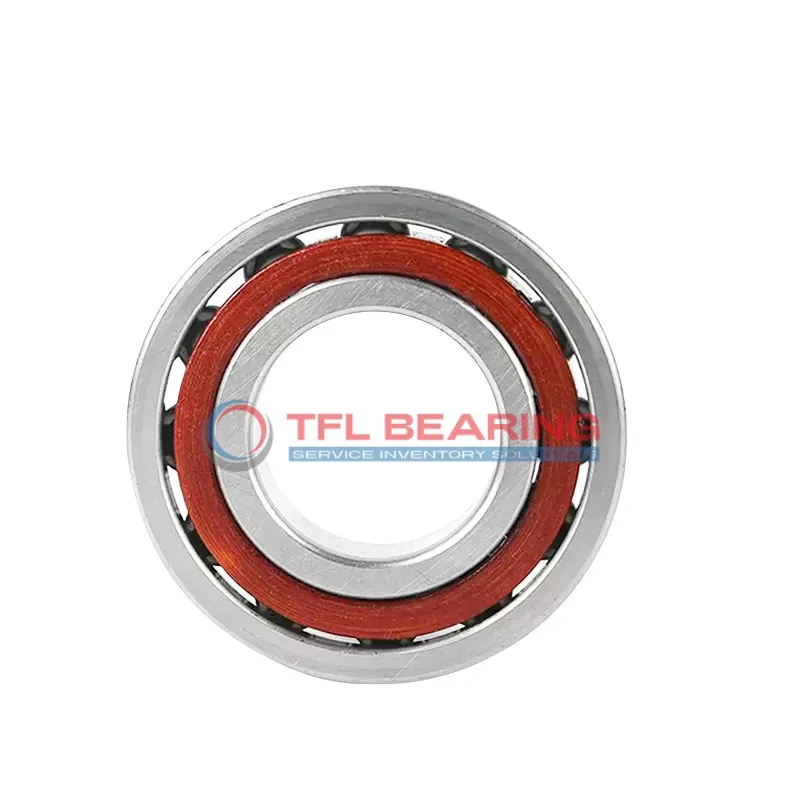

The 7213 BEGAPH is a single-row angular contact ball bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. Its 40° contact angle efficiently handles combined radial and axial loads, supporting up to 15638 lbf dynamically.
The open design allows for easy lubrication, while the nylon cage reduces friction for smoother operation. It can reach speeds of 6700 RPM and performs reliably in temperatures from -30°C to 110°C.
With a P6 tolerance class, this bearing offers precise performance for demanding applications. It’s interchangeable with SKF models, making it a versatile choice for replacements.
Ideal for machinery like pumps or gearboxes where angular loads are common, it weighs 1kg for a balanced mix of strength and manageability. Compliant with RoHS and REACH standards.
"*" indicates required fields
How Is 7213 BEGAPH Bearing Engineered for Reliability?
7213 BEGAPH Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel construction ensures durability and resistance to wear under heavy loads.
The nylon cage in 7213 BEGAPH Bearing reduces friction and noise, enhancing smooth operation.
With a dynamic radial load capacity of 15638 lbf, it performs reliably in demanding applications.
7213 BEGAPH Bearing operates efficiently at speeds up to 6,700 rpm, balancing performance and longevity.
Its P6 tolerance class guarantees precision, making it suitable for high-accuracy machinery.
Industrial Uses of 7213 BEGAPH Bearing
The 7213 BEGAPH Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its open design and nylon cage make it suitable for high-speed operations in industrial settings.
Where Is 7213 BEGAPH Bearing Used?
You’ll find the 7213 BEGAPH Bearing in automotive transmissions, where its chrome steel construction ensures durability under heavy loads. The metric sizing and P6 tolerance class make it a reliable choice for precision applications.
Built for Heavy-Duty Use: 7213 BEGAPH Bearing
In conveyor systems, the 7213 BEGAPH Bearing’s dynamic radial load capacity of 15638 lbf ensures smooth operation. Its temperature range of -30° to 110°C makes it versatile for various industrial environments.
Automotive vs Aerospace: Applications of 7213 BEGAPH Bearing
The 7213 BEGAPH Bearing is ideal for automotive wheel hubs, offering stability under angular loads. In aerospace, its lightweight design and high-speed capability make it useful for auxiliary equipment.
Perfect Fit for Automation: 7213 BEGAPH Bearing
Robotic arms benefit from the 7213 BEGAPH Bearing’s precise movement and low friction. The lubricated design ensures long service life, even in continuous operation scenarios.
