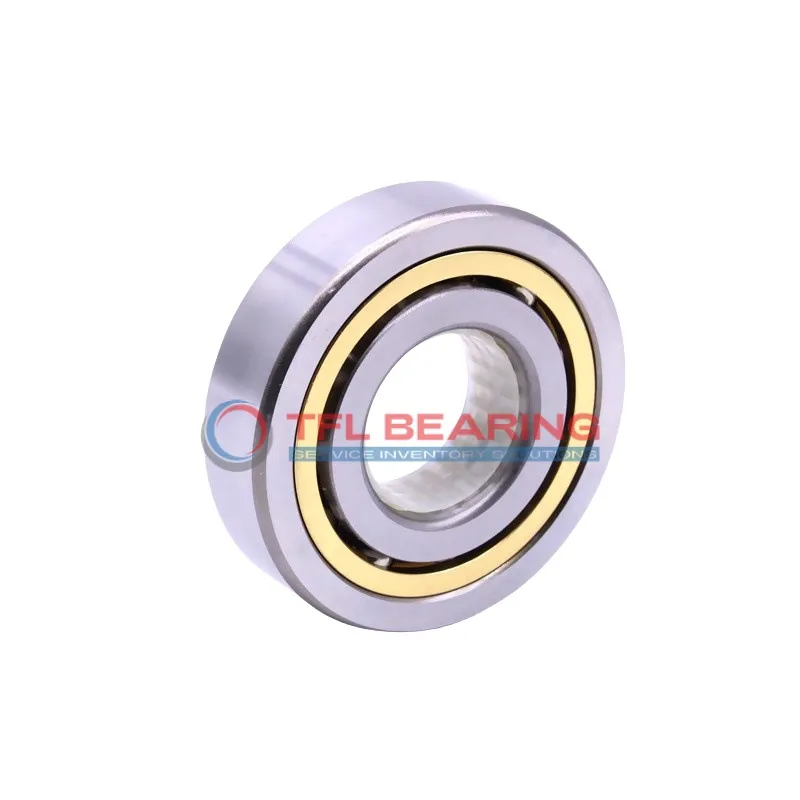

Single Row Angular Contact Ball Bearings (General) 7212 BECBY
Single Row Angular Contact Ball Bearings (General) 7212 BECBY

Single Row Angular Contact Ball Bearings (General) 7212 BECBY

The 7212 BECBY is a single-row angular contact ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13725 lbf and operates smoothly at speeds up to 7500 RPM.

With a 40° contact angle, it efficiently manages combined radial and axial loads. The brass cage enhances durability and reduces friction, making it reliable for high-performance use.

Its open design allows for easy lubrication, while the P6 tolerance ensures precise operation. Suitable for temperatures from -30°C to 110°C, it meets RoHS and REACH standards.

Ideal for applications like pumps or gearboxes where angular contact is needed. Weighing 0.8kg, it balances strength and practicality for industrial settings.

SEND INQUIRY

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Product Parameters

  • Part Number 7212 BECBY
  • Brand TFL
  • Interchangeable SKF
  • System of Measurement Metric
  • Bearing Type Ball
  • Contact Angle 40°
  • For Load Direction Angular Contact
  • Construction Single Row
  • Seal Type Open
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 22 mm
  • Width Tolerance -0.05mm to 0
  • External Diameter On Inner Ring (Large Side Face) 79.6 mm
  • External Diameter On Inner Ring (Small Side Face) 69.32 mm
  • Internal Diameter On Outer Ring 91.55 mm
  • Chamfer Dimension 1.5 mm
  • Distance Pressure Point (a) 47 mm
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Brass
  • Dynamic Radial Load 13725 lbf
  • Static Radial Load 11250 lbf
  • Lubrication Lubricated
  • Temperature Range -30° to 110 °C
  • Tolerance Class P6 (ABEC-3)
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 0.8 kg
  • Price($) 44

Features

Why Choose 7212 BECBY Bearing for Precision Tasks?

7212 BECBY Bearing features a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel construction ensures durability and consistent performance under dynamic radial loads up to 13725 lbf.

The brass cage maintains ball alignment, reducing friction and extending operational life.
With a maximum speed of 7,500 rpm, it suits high-speed applications requiring precision.

7212 BECBY Bearing operates efficiently in temperatures from -30° to 110°C, adapting to various environments.
Its P6 tolerance class (ABEC-3) guarantees reliable performance in precision machinery.

The open design simplifies lubrication, ensuring smooth operation with minimal maintenance.
Weighing just 0.8 kg, it offers a balance of strength and ease of handling.

Application

Industrial Uses of 7212 BECBY Bearing
The 7212 BECBY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its brass cage ensures smooth operation even at high speeds, making it suitable for precision machining.

Where Is 7212 BECBY Bearing Used?
You’ll often find 7212 BECBY Bearing in automotive gearboxes, where its chrome steel construction provides durability under heavy loads. The open design allows for easy lubrication, extending its lifespan in demanding conditions.

Built for Heavy-Duty Use: 7212 BECBY Bearing
In conveyor systems, 7212 BECBY Bearing excels due to its high dynamic radial load capacity. The P6 tolerance class ensures reliable performance in industrial environments with minimal maintenance.

Automotive vs Aerospace: Applications of 7212 BECBY Bearing
While 7212 BECBY Bearing is popular in car transmissions, it’s also used in aircraft auxiliary systems where precision is key. The metric sizing and brass cage make it versatile across different industries.

Perfect Fit for Automation: 7212 BECBY Bearing
Robotic arms benefit from 7212 BECBY Bearing’s ability to handle angular loads with precision. Its lubricated design reduces friction, ensuring smooth movement in automated production lines.
