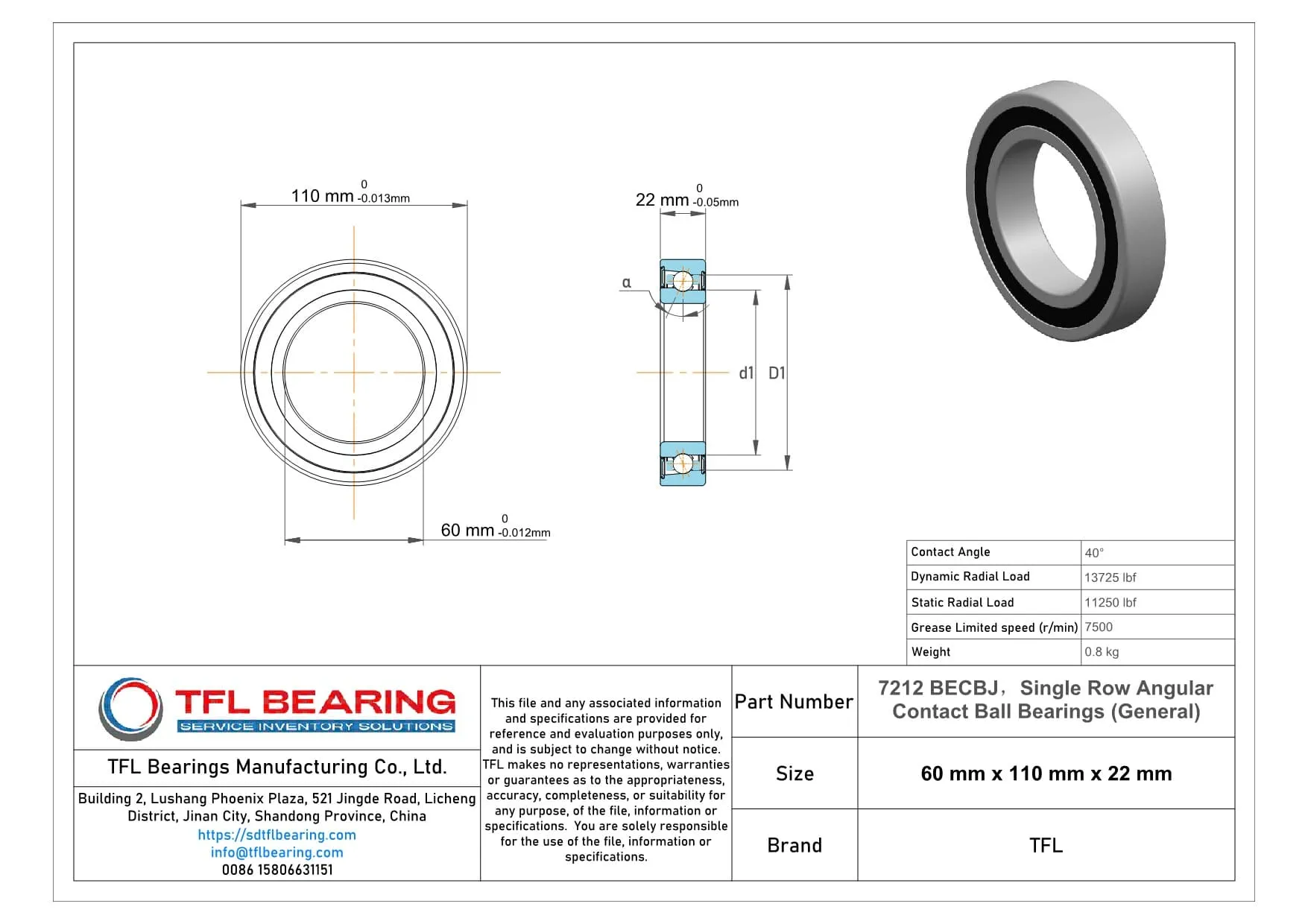

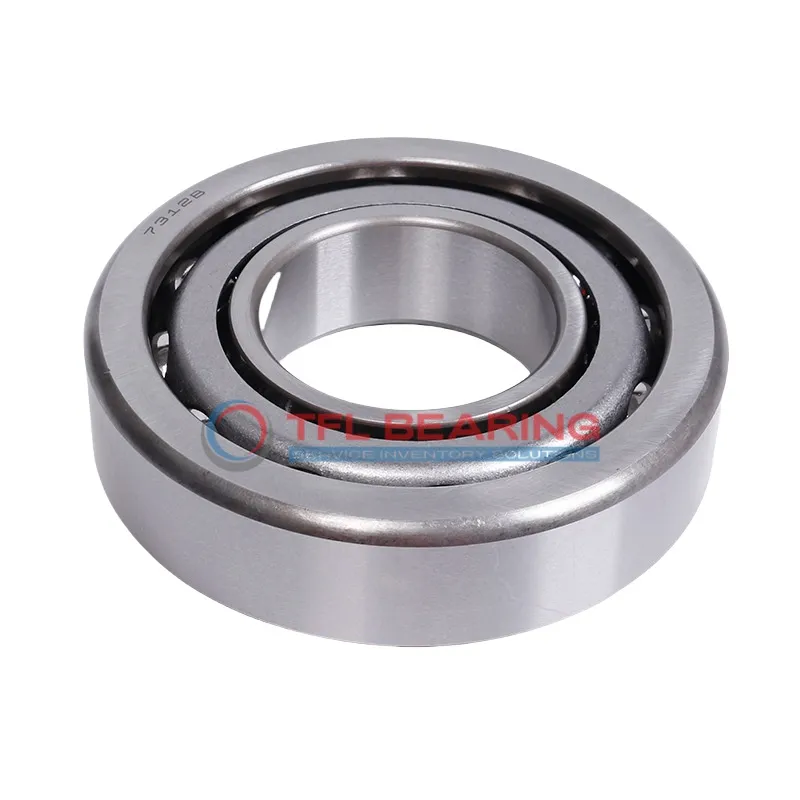

The 7212 BECBJ is a single-row angular contact ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 13725 lbf and operates smoothly at speeds up to 7500 RPM.
With a 40° contact angle, it efficiently handles combined radial and axial loads. The open design allows easy lubrication, while the stainless steel cage ensures durability.
This bearing is interchangeable with SKF models, making it a practical choice for replacements. Suitable for applications like pumps or gearboxes where angular contact is needed.
Weighing 0.8kg, it’s robust yet manageable. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 110°C.
"*" indicates required fields
How Does 7212 BECBJ Bearing Support Angular Loads?
7212 BECBJ Bearing features a 40° contact angle, optimised for handling combined radial and axial loads.
Its chrome steel construction ensures durability, while the stainless steel cage maintains precise ball alignment.
The dynamic radial load capacity of 13725 lbf makes it suitable for demanding applications.
With a maximum speed of 7,500 rpm, it balances performance and longevity.
Designed for a temperature range of -30° to 110°C, it performs reliably in various conditions.
The P6 tolerance class ensures consistent precision in operation.
Industrial Uses of 7212 BECBJ Bearing
The 7212 BECBJ Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its open design simplifies lubrication, ensuring smooth operation in high-speed scenarios.
In automotive applications, 7212 BECBJ Bearing is ideal for wheel hubs and transmissions, offering reliable performance under heavy loads. The chrome steel construction enhances durability, making it suitable for long-term use.
For automation systems, 7212 BECBJ Bearing supports robotic arms and conveyor belts, providing precise movement. The stainless steel cage reduces friction, extending the bearing’s lifespan in continuous operation.
Medical devices like centrifuges benefit from 7212 BECBJ Bearing’s high-speed capabilities and low noise. Its P6 tolerance class ensures consistent performance in sensitive equipment.
In household appliances, 7212 BECBJ Bearing is found in washing machines and fans, where its balanced design reduces vibration. The metric sizing makes it compatible with a variety of European and Asian models.
