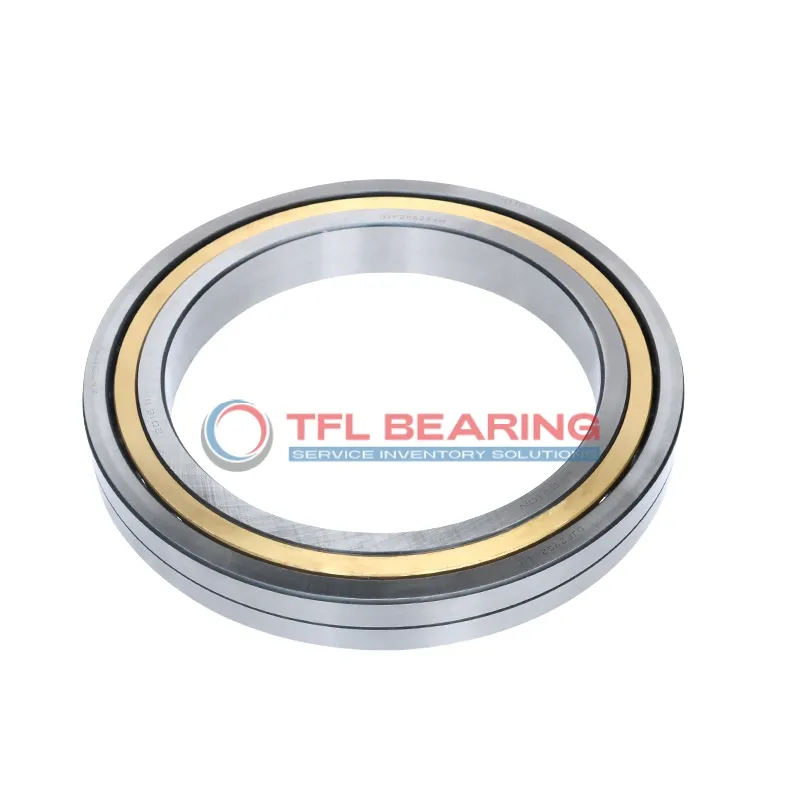

The 7211 BEGBY is a single-row angular contact ball bearing with a 55mm bore and 100mm outer diameter, designed for angular loads. It handles radial loads up to 11025 lbf and operates smoothly at speeds up to 8000 RPM.
Made from chrome steel with a brass cage, it offers durability and reliable performance. The open design allows easy lubrication, and it works in temperatures from -30°C to 110°C.
With a 40° contact angle, it’s ideal for applications requiring precise load handling, such as pumps or gearboxes. Its P6 tolerance class ensures consistent performance.
Weighing 0.62kg, it’s a sturdy yet manageable option for industrial use. Compliant with RoHS and REACH standards, it’s also interchangeable with SKF bearings for easy replacement.
"*" indicates required fields
Why Choose 7211 BEGBY Bearing for Precision Tasks?
7211 BEGBY Bearing features a 40° contact angle, ideal for handling combined radial and axial loads with precision.
Its chrome steel rings and balls provide durability, while the brass cage ensures smooth operation at high speeds.
With a dynamic radial load capacity of 11025 lbf, it performs reliably in demanding applications.
The P6 tolerance class (ABEC-3) guarantees consistent accuracy for precision machinery.
Designed for speeds up to 8,000 rpm, it balances performance and longevity.
Its open design simplifies lubrication, reducing maintenance needs.
Industrial Uses of 7211 BEGBY Bearing
The 7211 BEGBY Bearing is commonly used in machine tools, where its 40° contact angle efficiently handles combined radial and axial loads. Its brass cage ensures smooth operation even at high speeds up to 8,000 rpm.
In automotive applications, 7211 BEGBY Bearing works well in wheel hubs and transmissions, thanks to its chrome steel construction. The P6 tolerance class provides the precision needed for reliable performance in these critical systems.
For automation equipment like robotic arms, 7211 BEGBY Bearing offers stability under angular loads. The open design allows for easy lubrication, extending its service life in continuous operation.
Medical imaging devices benefit from 7211 BEGBY Bearing’s consistent performance and low noise. Its metric sizing makes it compatible with various European-designed medical equipment.
In household appliances such as washing machines, 7211 BEGBY Bearing handles moderate loads with ease. The temperature range of -30° to 110°C ensures durability in everyday use.
"*" indicates required fields

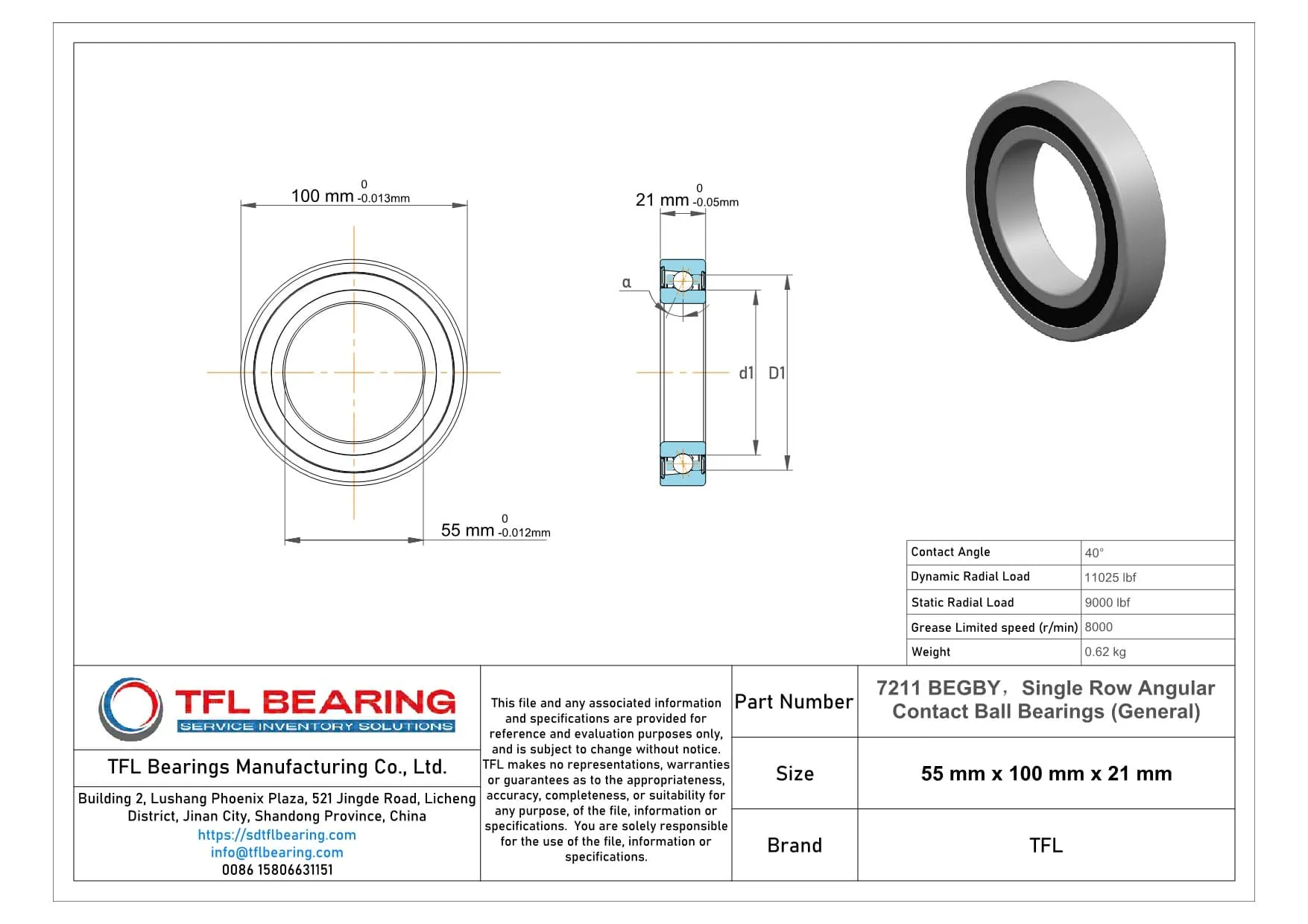

-7211-BEGBY-Drawing.webp)
