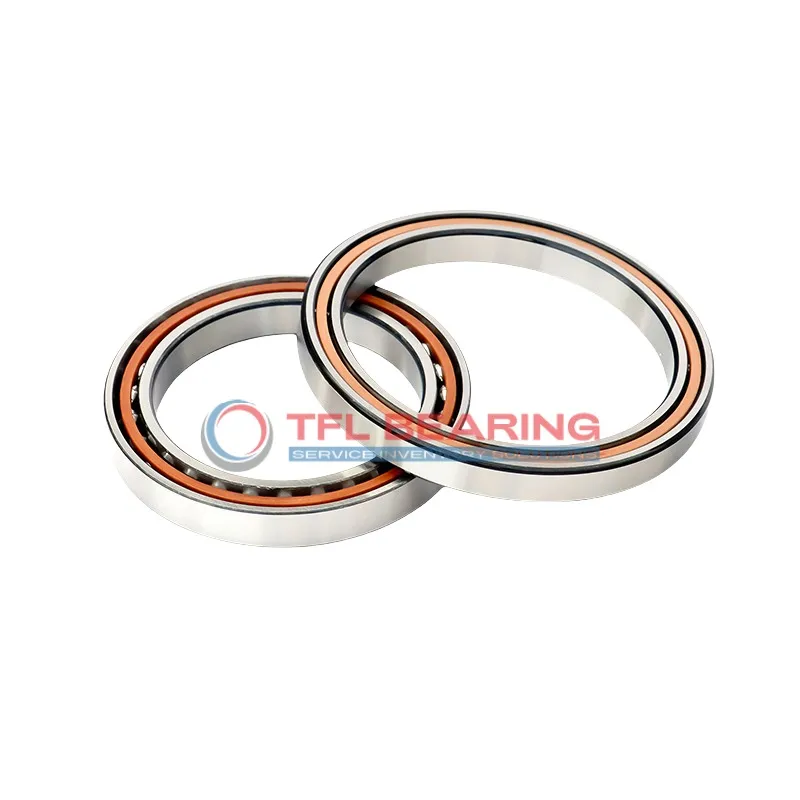

The 7209 BEGAPH is a single-row angular contact ball bearing with a 45mm bore and 85mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 8550 lbf and spins smoothly at speeds up to 10,000 RPM.
With a 40° contact angle, it efficiently manages combined loads, while the open design allows for easy lubrication. The nylon cage reduces friction and noise, enhancing performance.
This bearing is interchangeable with SKF models, making it a versatile replacement option. Suitable for applications like pumps or gearboxes where angular contact is needed.
Weighing 0.42kg, it operates reliably in temperatures from -30°C to 110°C. Compliant with RoHS and REACH standards for safe use.
"*" indicates required fields
Performance Features of 7209 BEGAPH Bearing
7209 BEGAPH Bearing is built with a 40° contact angle, ideal for handling combined radial and axial loads.
Its chrome steel rings and balls ensure durability, while the nylon cage reduces friction and noise.
The bearing’s dynamic radial load capacity of 8550 lbf makes it suitable for demanding applications.
With a maximum speed of 10,000 rpm, it delivers reliable performance in high-speed operations.
7209 BEGAPH Bearing operates efficiently within a temperature range of -30° to 110°C.
Its P6 tolerance class ensures precision, making it a dependable choice for various industrial uses.
Key Fields for 7209 BEGAPH Bearing
7209 BEGAPH Bearing is commonly used in industrial machinery, especially in applications where angular contact is needed, such as pumps and gearboxes. Its 40° contact angle provides good load distribution, making it suitable for moderate-speed operations.
Where Is 7209 BEGAPH Bearing Used?
You’ll often find 7209 BEGAPH Bearing in automotive components like wheel hubs and transmissions, where its chrome steel construction ensures durability. The open design allows for easy lubrication, extending its service life in demanding conditions.
Built for Heavy-Duty Use: 7209 BEGAPH Bearing
7209 BEGAPH Bearing works well in automation systems, including robotic arms and conveyor belts, thanks to its nylon cage reducing friction. Its P6 tolerance class ensures reliable performance in precision applications.
Automotive vs Aerospace: Applications of 7209 BEGAPH Bearing
In automotive settings, 7209 BEGAPH Bearing handles radial and axial loads in drivetrains, while in aerospace, it supports auxiliary systems requiring high-speed stability. The metric sizing makes it versatile for various equipment.
Perfect Fit for Automation: 7209 BEGAPH Bearing
7209 BEGAPH Bearing is ideal for 3D printers and CNC machines, where smooth rotation is essential. The lubricated design helps maintain performance even during prolonged use.
